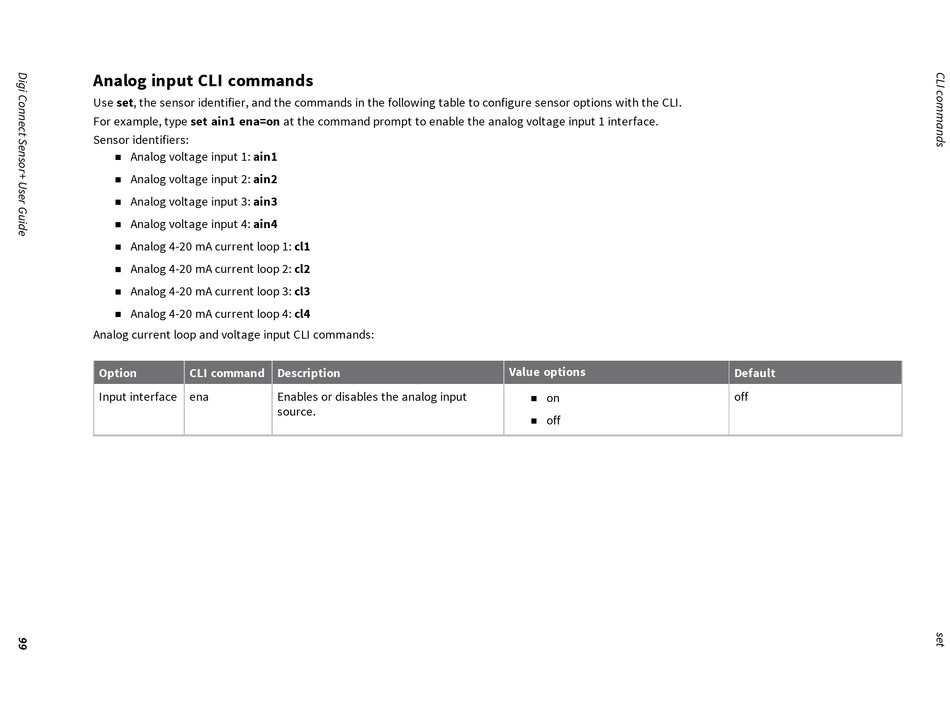

Analog input CLI commands

Use set, the sensor identifier, and the commands in the following table to configure sensor options with the CLI.
For example, type set ain1 ena=on at the command prompt to enable the analog voltage input 1 interface.
Sensor identifiers:
Analog voltage input 1: ain1
n
Analog voltage input 2: ain2
n
Analog voltage input 3: ain3
n
Analog voltage input 4: ain4
n
Analog 4-20 mA current loop 1: cl1
n
Analog 4-20 mA current loop 2: cl2
n
Analog 4-20 mA current loop 3: cl3
n
Analog 4-20 mA current loop 4: cl4
n
Analog current loop and voltage input CLI commands:
Option CLI command Description
Input interface ena Enables or disables the analog input
source.
Value options
on
n
off
n
Default
off
