Digi ConnectPort X2 Quick Start Manual

USAT
USATCORP.COM

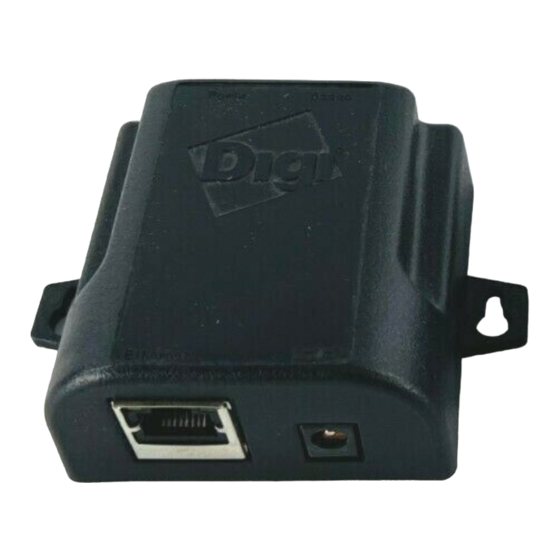

ConnectPort X2
Ethernet
cross-over cable
2
Connect hardware
a
Connect Ethernet cross-over cable to LAN connection
b
Connect Power supply
3 Discover your device
a
Insert CD.
Click on the Gateway Software > ConnectPort X > Con guration >
Device Discovery.
b
Click the device from the discovery list to access the web interface
Your device is now discovered and you are connected to it
© Digi International, Inc., 2009
Digi, Digi International, Digi Connect and the Digi logo are trademarks or registered trademarks of Digi International, Inc., in the United States and other countries worldwide. All other trademarks are property of their respective owners.
1
Verify kit contents
Software CD
Power supply
NOTE: You must disable
rewall and antivirus
software before running
wizard!
Contact USATCORP.COM for more
information or quantity pricing
1-888-550-8728
a
a
Under Administration, Click System Information > Mesh Network
b
Click Discover Mesh Network. You should see the devices in the
network
For additional information on con guring your device for your
application, refer to the User's Guide and other documentation on
your CD

Quick Start Guide

ConnectPort ™
(1P): 90001082-88 A
b
4 Discover ZigBee
X2
