Data stream definitions
Short
name Long name
puen Pull-up enable
wem Wake enable mask

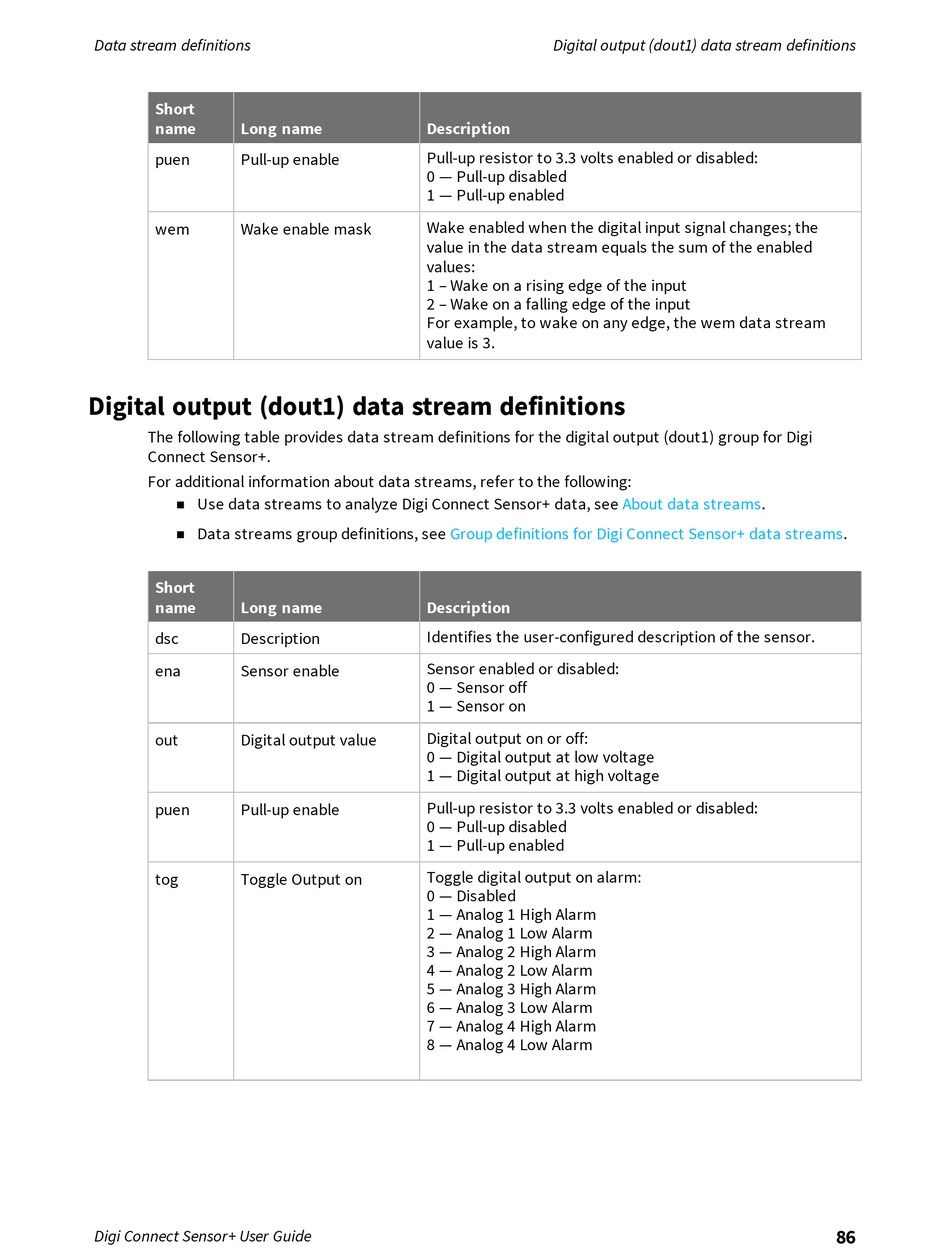

Digital output (dout1) data stream definitions

The following table provides data stream definitions for the digital output (dout1) group for Digi
Connect Sensor+.
For additional information about data streams, refer to the following:
Use data streams to analyze Digi Connect Sensor+ data, see
n
Data streams group definitions, see
n
Short
name Long name
dsc Description
ena Sensor enable
out Digital output value
puen Pull-up enable
tog Toggle Output on
Digi Connect Sensor+ User Guide
Digital output (dout1) data stream definitions
Description
Pull-up resistor to 3.3 volts enabled or disabled:
0 — Pull-up disabled
1 — Pull-up enabled
Wake enabled when the digital input signal changes; the
value in the data stream equals the sum of the enabled
values:
1 – Wake on a rising edge of the input
2 – Wake on a falling edge of the input
For example, to wake on any edge, the wem data stream
value is 3.
Group definitions for Digi Connect Sensor+ data
Description
Identifies the user-configured description of the sensor.
Sensor enabled or disabled:
0 — Sensor off
1 — Sensor on
Digital output on or off:
0 — Digital output at low voltage
1 — Digital output at high voltage
Pull-up resistor to 3.3 volts enabled or disabled:
0 — Pull-up disabled
1 — Pull-up enabled
Toggle digital output on alarm:
0 — Disabled
1 — Analog 1 High Alarm
2 — Analog 1 Low Alarm
3 — Analog 2 High Alarm
4 — Analog 2 Low Alarm
5 — Analog 3 High Alarm
6 — Analog 3 Low Alarm
7 — Analog 4 High Alarm
8 — Analog 4 Low Alarm
About data streams.
streams.
