Digi Connect Sensor+ ports and buttons

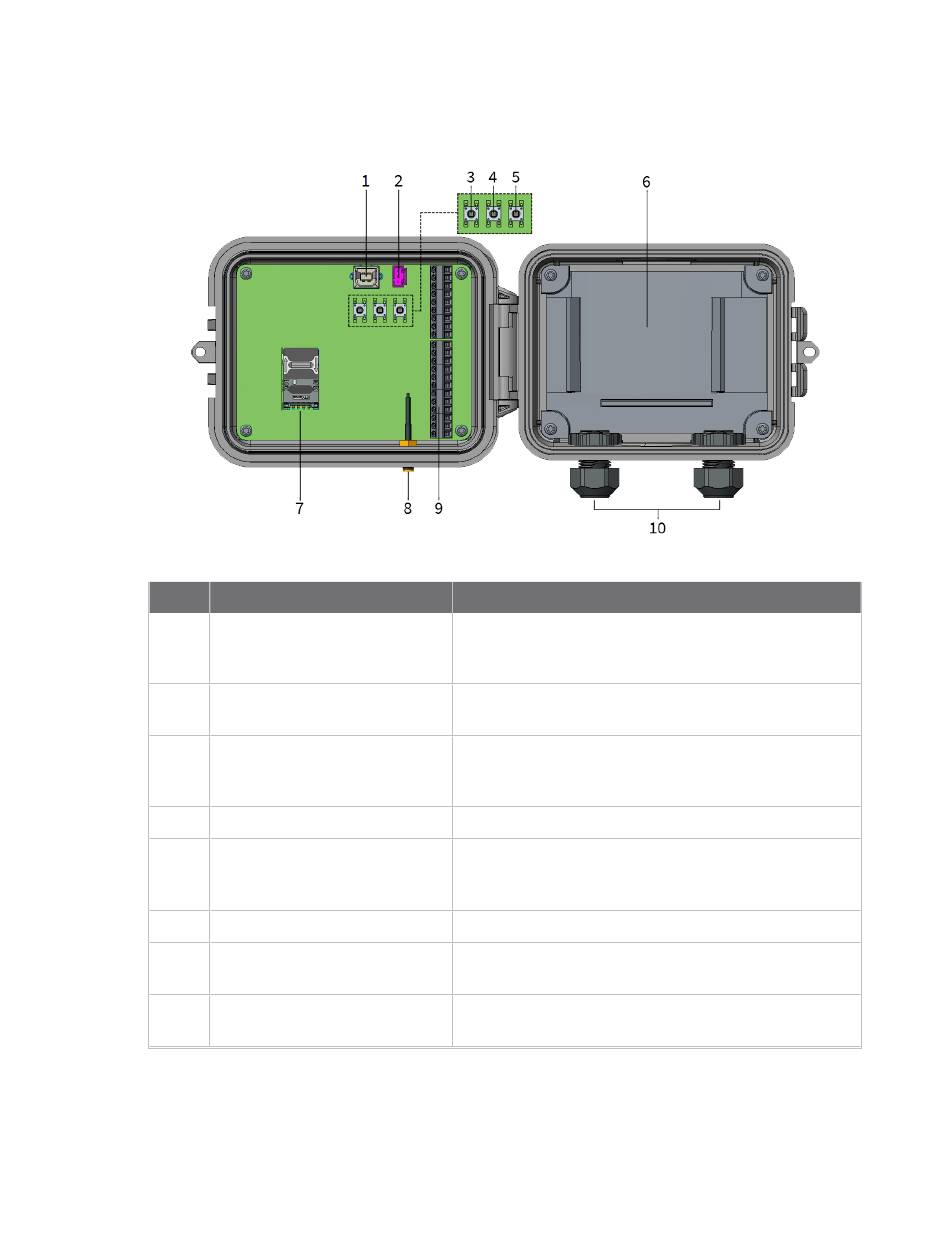

The following figure shows the controls for setting up and configuring Digi Connect Sensor+.
Item
Name
1
Console port
2
Battery port
3
Wake button
4
Factory button
5
Reset button
6
Battery tray
7
SIM card tray
8
Cellular antenna port
Digi Connect Sensor+ User Guide
Digi Connect Sensor+ ports and buttons
Description
Connects Digi Connect Sensor+ to a computer using a
USB type A to B cable for access to the command line
interface (CLI).
Connects the battery wire to power Digi Connect
Sensor+.
Wakes Digi Connect Sensor+. See
Sensor+.
Currently disabled.
Restarts
the device when it is not responding to input
(from the CLI or otherwise). Pressing this button does
not remove previous configuration changes.
Holds the battery in place.
Connects the SIM card to Digi Connect Sensor+ . A SIM
card is inserted by default.
Connects an external cellular antenna to Digi Connect
Sensor+ .
Wake Digi Connect
19
