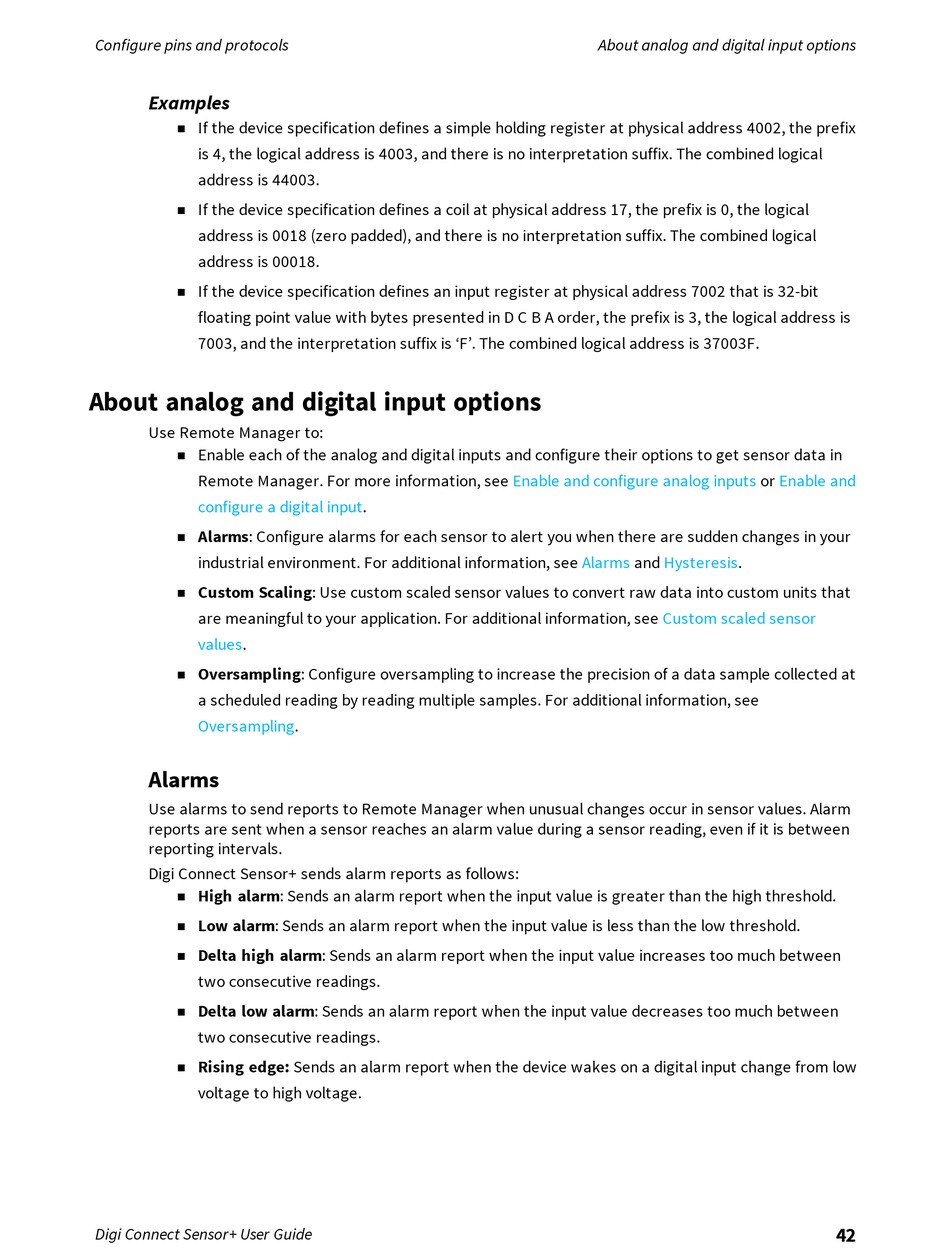

Configure pins and protocols
Examples
If the device specification defines a simple holding register at physical address 4002, the prefix
n
is 4, the logical address is 4003, and there is no interpretation suffix. The combined logical
address is 44003.
If the device specification defines a coil at physical address 17, the prefix is 0, the logical
n
address is 0018 (zero padded), and there is no interpretation suffix. The combined logical
address is 00018.
If the device specification defines an input register at physical address 7002 that is 32-bit
n
floating point value with bytes presented in D C B A order, the prefix is 3, the logical address is
7003, and the interpretation suffix is 'F'. The combined logical address is 37003F.

About analog and digital input options

Use Remote Manager to:
Enable each of the analog and digital inputs and configure their options to get sensor data in
n
Remote Manager. For more information, see
configure a digital
Alarms: Configure alarms for each sensor to alert you when there are sudden changes in your
n
industrial environment. For additional information, see
Custom Scaling: Use custom scaled sensor values to convert raw data into custom units that
n
are meaningful to your application. For additional information, see
values.
Oversampling: Configure oversampling to increase the precision of a data sample collected at
n
a scheduled reading by reading multiple samples. For additional information, see
Oversampling.

Alarms

Use alarms to send reports to Remote Manager when unusual changes occur in sensor values. Alarm
reports are sent when a sensor reaches an alarm value during a sensor reading, even if it is between
reporting intervals.
Digi Connect Sensor+ sends alarm reports as follows:
High alarm: Sends an alarm report when the input value is greater than the high threshold.
n
Low alarm: Sends an alarm report when the input value is less than the low threshold.
n
Delta high alarm: Sends an alarm report when the input value increases too much between
n
two consecutive readings.
Delta low alarm: Sends an alarm report when the input value decreases too much between
n
two consecutive readings.
Rising edge: Sends an alarm report when the device wakes on a digital input change from low
n
voltage to high voltage.
