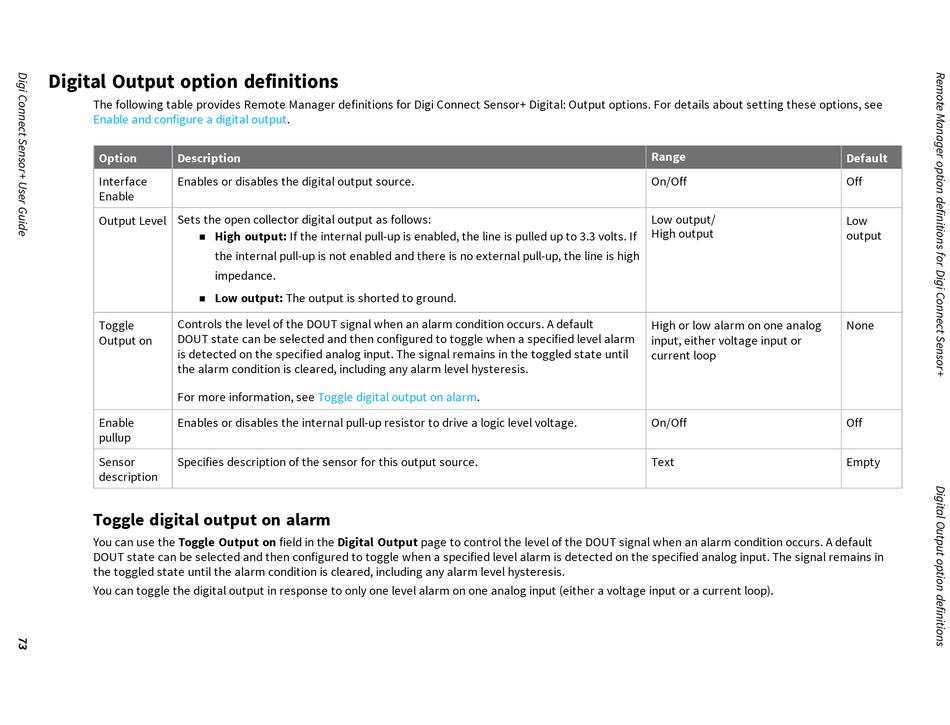

Digital Output option definitions

The following table provides Remote Manager definitions for Digi Connect Sensor+ Digital: Output options. For details about setting these options, see
Enable and configure a digital
Option Description
Interface Enables or disables the digital output source.
Enable
Output Level Sets the open collector digital output as follows:
High output: If the internal pull-up is enabled, the line is pulled up to 3.3 volts. If
n
the internal pull-up is not enabled and there is no external pull-up, the line is high
impedance.
Low output: The output is shorted to ground.
n
Controls the level of the DOUT signal when an alarm condition occurs. A default
Toggle
DOUT state can be selected and then configured to toggle when a specified level alarm
Output on
is detected on the specified analog input. The signal remains in the toggled state until
the alarm condition is cleared, including any alarm level hysteresis.
For more information, see
Enable Enables or disables the internal pull-up resistor to drive a logic level voltage.
pullup
Sensor Specifies description of the sensor for this output source.
description

Toggle digital output on alarm

You can use the Toggle Output on field in the Digital Output page to control the level of the DOUT signal when an alarm condition occurs. A default
DOUT state can be selected and then configured to toggle when a specified level alarm is detected on the specified analog input. The signal remains in
the toggled state until the alarm condition is cleared, including any alarm level hysteresis.
You can toggle the digital output in response to only one level alarm on one analog input (either a voltage input or a current loop).
output.
Toggle digital output on alarm.
Range
On/Off
Low output/
High output
High or low alarm on one analog
input, either voltage input or
current loop
On/Off
Text
Default
Off
Low
output
None
Off
Empty
