Digi ConnectPort X2e Smart Energy Quick Start Manual

1 Verify the kit contents

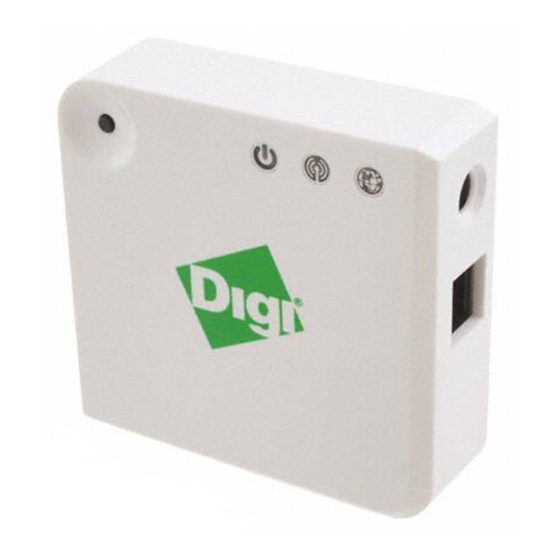

ConnectPort X2e SE
2 Write down device information
Write down the following information (located on the back of the device), which you will use in step 5.
________________________________
Serial Number:
______________________________________
EUI64:
_________________________________
Install Code:
NOTE: The serial number is also the
Ethernet MAC address.
3

Connect the hardware

Connect the power supply. The Power LED lights green and the Network LED blinks orange.
NOTE: Once the device is connected to Device Cloud, the Network LED changes to green.
b
Button
4 Add the router to the network (router models only)
This step is for router models only. If you have a coordinator model, proceed to step 5.
Add the router variant to the Smart Energy network. Contact the utility company or owner of the Smart Meter if you are unsure
how to add a router to the network.
NOTE: Make sure the router is powered ON when you add it to or remove it from a Smart Energy network.
Power supply Ethernet cable
Model: ConnectPort X2e SE
Part Number: X2E-Z1C-E1-A
Serial Number: 00409D 50E9BB
EUI64: 0013 A200 526B 1410
Install Code: ABCD 1234 ABCD 1234
Power
ZigBee

Quick Start Guide

Network
ConnectPort X2e
®
Smart Energy
