Wake Digi Connect Sensor+

If Digi Connect Sensor+ is powered and all LEDs are off, it is in sleep mode. You can wake the device
manually, if needed.
Note The LED indicators only light up when you wake the device by manual intervention: pressing the
Wake button inside the device or using a magnet. When the device automatically wakes up as
scheduled to take and push readings, the LEDs do not light up since no one may be physically present
to see the LED start-up sequence. See

Manually wake the device

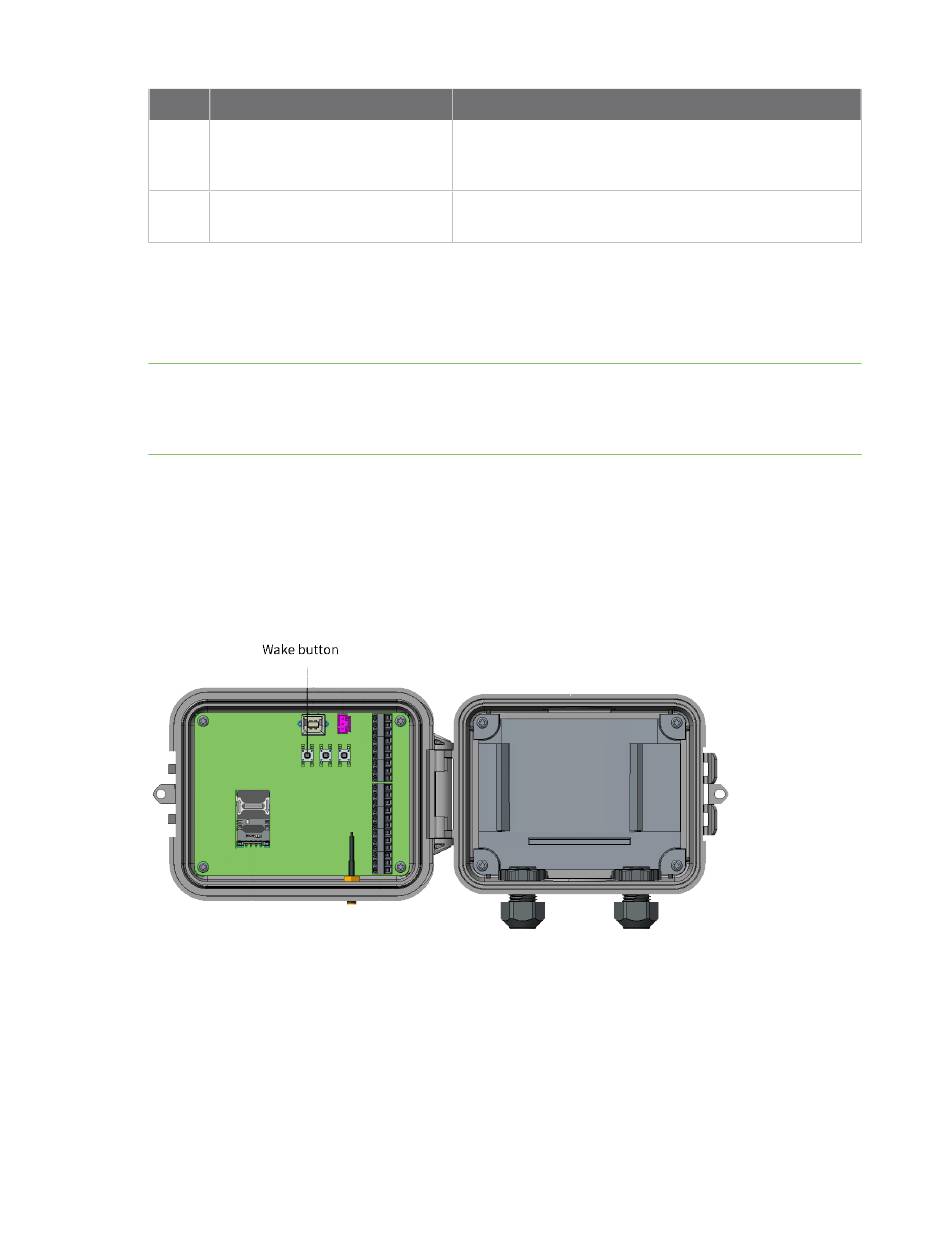

To wake the device, you can either swipe a magnet across the top of the device, or press the Wake
button inside the device.
When you wake Digi Connect Sensor+, the LED buttons are activated as the device wakes up. The
start-up sequence is described below.

Digi Connect Sensor+ LED start-up sequence

The LED indicators light up in a predetermined sequence when you manually wake the Digi Connect
Sensor+. For a description of where the LEDs are located on the device, see
LEDs.
