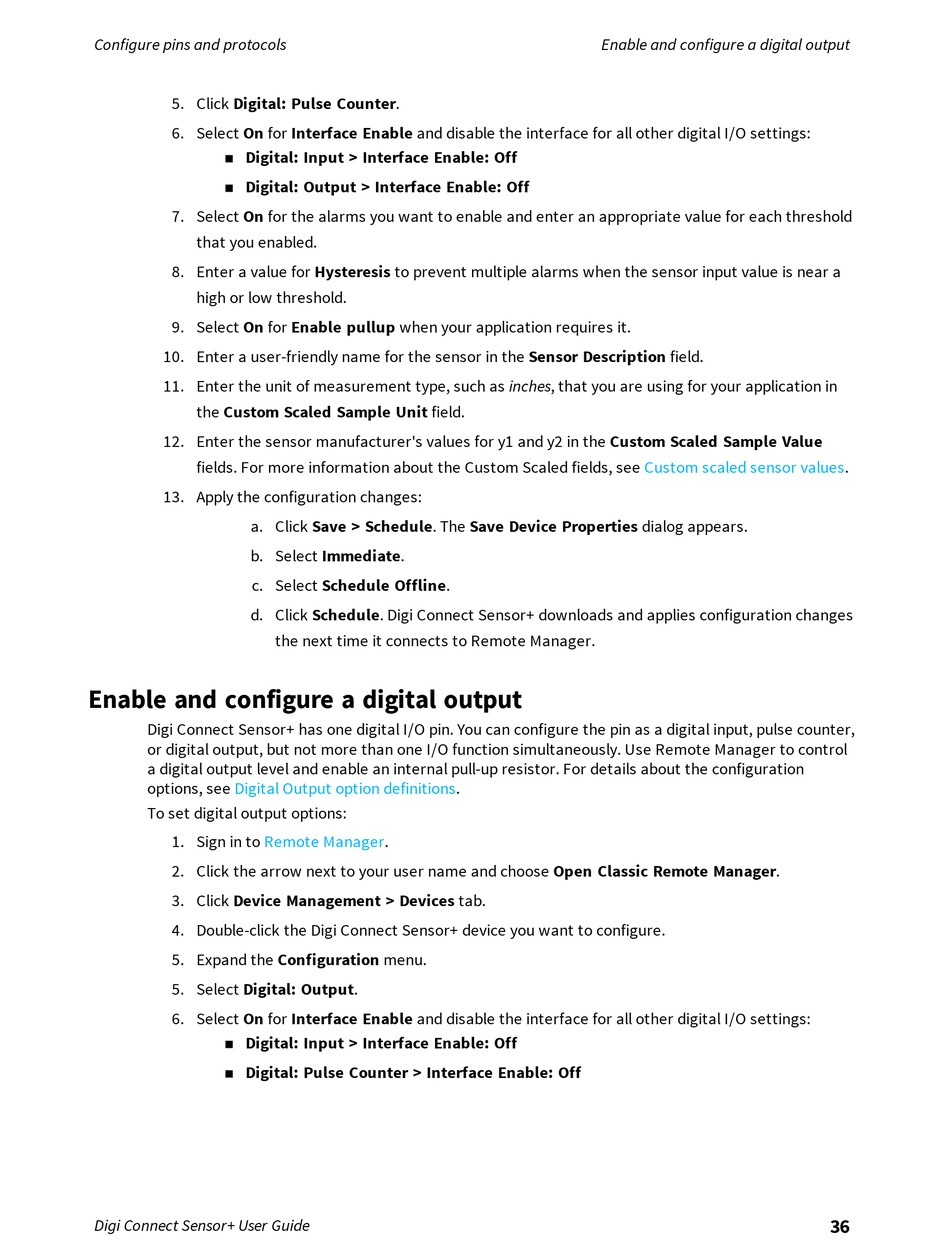

Configure pins and protocols
5. Click Digital: Pulse Counter.
6. Select On for Interface Enable and disable the interface for all other digital I/O settings:
Digital: Input > Interface Enable: Off
n
Digital: Output > Interface Enable: Off
n
7. Select On for the alarms you want to enable and enter an appropriate value for each threshold
that you enabled.
8. Enter a value for Hysteresis to prevent multiple alarms when the sensor input value is near a
high or low threshold.
9. Select On for Enable pullup when your application requires it.
10. Enter a user-friendly name for the sensor in the Sensor Description field.
11. Enter the unit of measurement type, such as inches, that you are using for your application in
the Custom Scaled Sample Unit field.
12. Enter the sensor manufacturer's values for y1 and y2 in the Custom Scaled Sample Value
fields. For more information about the Custom Scaled fields, see
13. Apply the configuration changes:
a. Click Save > Schedule. The Save Device Properties dialog appears.
b. Select Immediate.
c. Select Schedule Offline.
d. Click Schedule. Digi Connect Sensor+ downloads and applies configuration changes

Enable and configure a digital output

Digi Connect Sensor+ has one digital I/O pin. You can configure the pin as a digital input, pulse counter,
or digital output, but not more than one I/O function simultaneously. Use Remote Manager to control
a digital output level and enable an internal pull-up resistor. For details about the configuration
options, see Digital Output option
To set digital output options:
1. Sign in to Remote
2. Click the arrow next to your user name and choose Open Classic Remote Manager.
3. Click Device Management > Devices tab.
4. Double-click the Digi Connect Sensor+ device you want to configure.
5. Expand the Configuration menu.
5. Select Digital: Output.
6. Select On for Interface Enable and disable the interface for all other digital I/O settings:
Digital: Input > Interface Enable: Off
n
Digital: Pulse Counter > Interface Enable: Off
n
Digi Connect Sensor+ User Guide
the next time it connects to Remote Manager.
definitions.
Manager.
Enable and configure a digital output
Custom scaled sensor values.
