Data stream definitions
Short
name Long name
ena Voltage output status
out Voltage output level
rdl Read delay

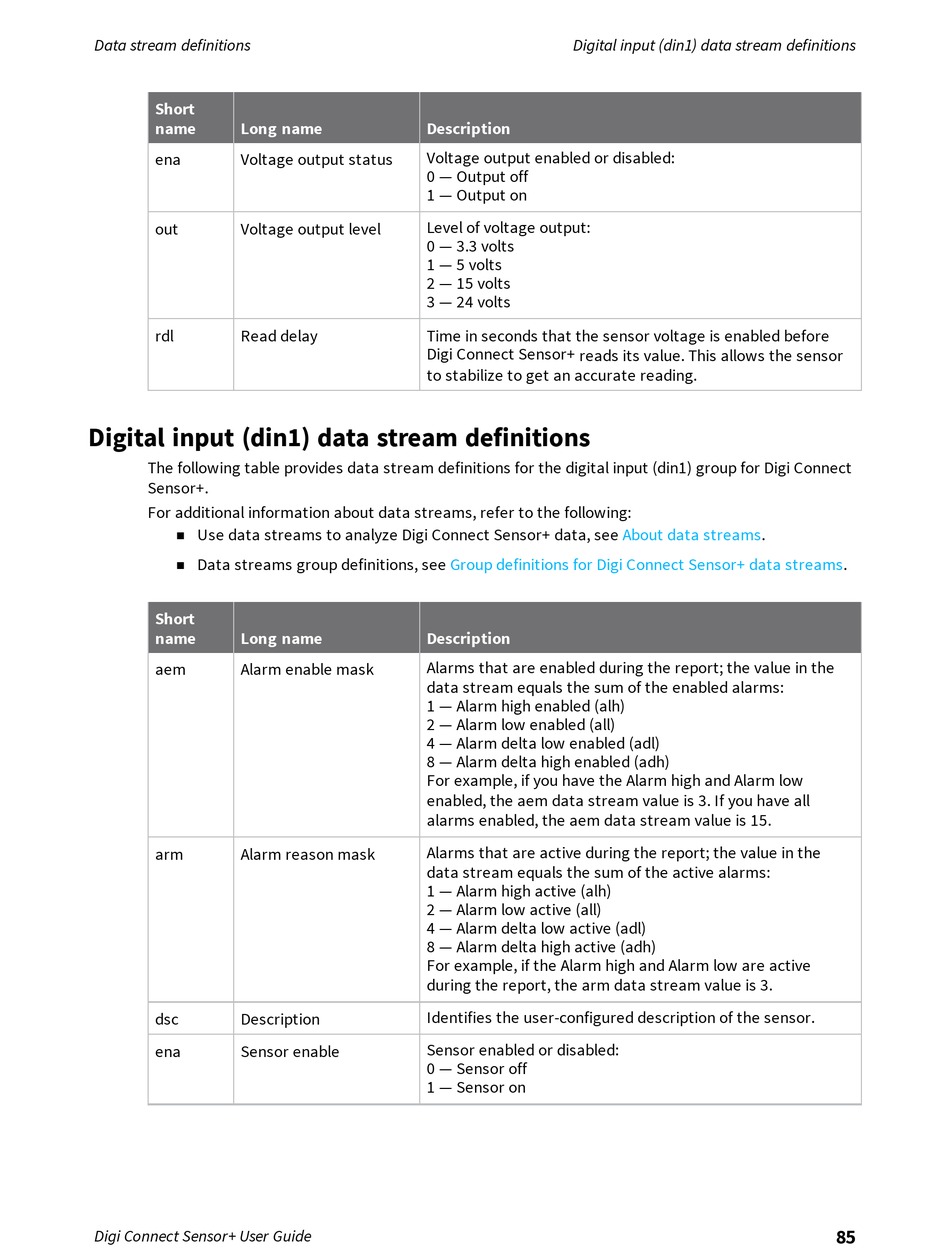

Digital input (din1) data stream definitions

The following table provides data stream definitions for the digital input (din1) group for Digi Connect
Sensor+.
For additional information about data streams, refer to the following:
Use data streams to analyze Digi Connect Sensor+ data, see
n
Data streams group definitions, see
n
Short
name Long name
aem Alarm enable mask
arm Alarm reason mask
dsc Description
ena Sensor enable
Digi Connect Sensor+ User Guide
Digital input (din1) data stream definitions
Description
Voltage output enabled or disabled:
0 — Output off
1 — Output on
Level of voltage output:
0 — 3.3 volts
1 — 5 volts
2 — 15 volts
3 — 24 volts
Time in seconds that the sensor voltage is enabled before
Digi Connect Sensor+ reads its value. This allows the sensor
to stabilize to get an accurate reading.
Group definitions for Digi Connect Sensor+ data
Description
Alarms that are enabled during the report; the value in the
data stream equals the sum of the enabled alarms:
1 — Alarm high enabled (alh)
2 — Alarm low enabled (all)
4 — Alarm delta low enabled (adl)
8 — Alarm delta high enabled (adh)
For example, if you have the Alarm high and Alarm low
enabled, the aem data stream value is 3. If you have all
alarms enabled, the aem data stream value is 15.
Alarms that are active during the report; the value in the
data stream equals the sum of the active alarms:
1 — Alarm high active (alh)
2 — Alarm low active (all)
4 — Alarm delta low active (adl)
8 — Alarm delta high active (adh)
For example, if the Alarm high and Alarm low are active
during the report, the arm data stream value is 3.
Identifies the user-configured description of the sensor.
Sensor enabled or disabled:
0 — Sensor off
1 — Sensor on
About data streams.
streams.
