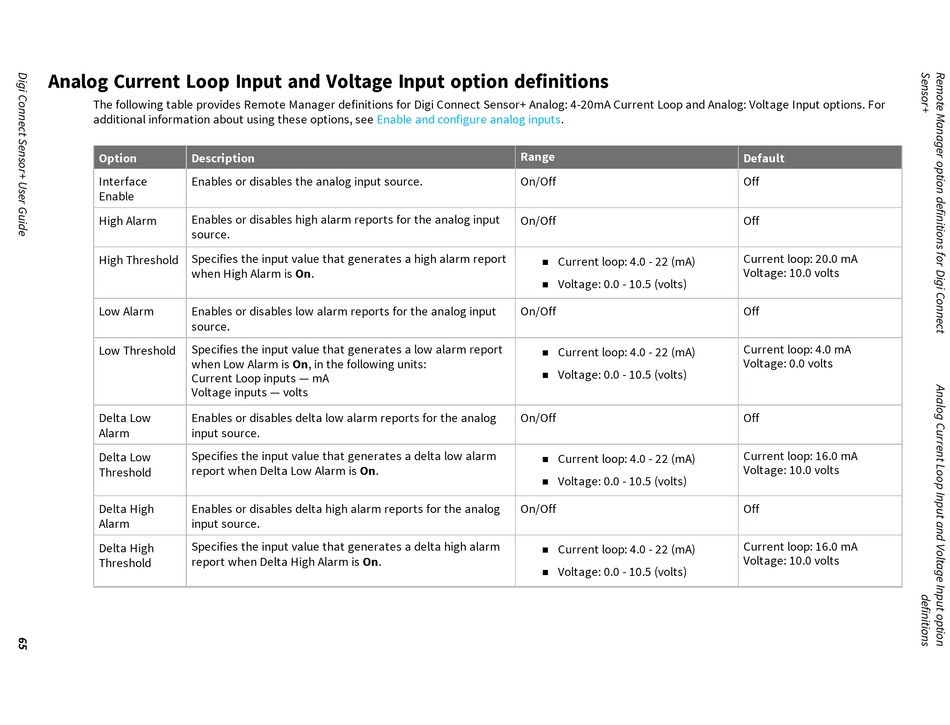

Analog Current Loop Input and Voltage Input option definitions

The following table provides Remote Manager definitions for Digi Connect Sensor+ Analog: 4-20mA Current Loop and Analog: Voltage Input options. For
additional information about using these options, see
Option Description
Interface Enables or disables the analog input source.
Enable
Enables or disables high alarm reports for the analog input
High Alarm
source.
High Threshold Specifies the input value that generates a high alarm report
when High Alarm is On.
Low Alarm Enables or disables low alarm reports for the analog input
source.
Specifies the input value that generates a low alarm report
Low Threshold
when Low Alarm is On, in the following units:
Current Loop inputs — mA
Voltage inputs — volts
Delta Low Enables or disables delta low alarm reports for the analog
Alarm input source.
Specifies the input value that generates a delta low alarm
Delta Low
report when Delta Low Alarm is On.
Threshold
Delta High Enables or disables delta high alarm reports for the analog
Alarm input source.
Specifies the input value that generates a delta high alarm
Delta High
report when Delta High Alarm is On.
Threshold
Enable and configure analog inputs.
Range
On/Off
On/Off
n
n
On/Off
n
n
On/Off
n
n
On/Off
n
n
Current loop: 4.0 - 22 (mA)
Voltage: 0.0 - 10.5 (volts)
Current loop: 4.0 - 22 (mA)
Voltage: 0.0 - 10.5 (volts)
Current loop: 4.0 - 22 (mA)
Voltage: 0.0 - 10.5 (volts)
Current loop: 4.0 - 22 (mA)
Voltage: 0.0 - 10.5 (volts)
Default
Off
Off
Current loop: 20.0 mA
Voltage: 10.0 volts
Off
Current loop: 4.0 mA
Voltage: 0.0 volts
Off
Current loop: 16.0 mA
Voltage: 10.0 volts
Off
Current loop: 16.0 mA
Voltage: 10.0 volts
