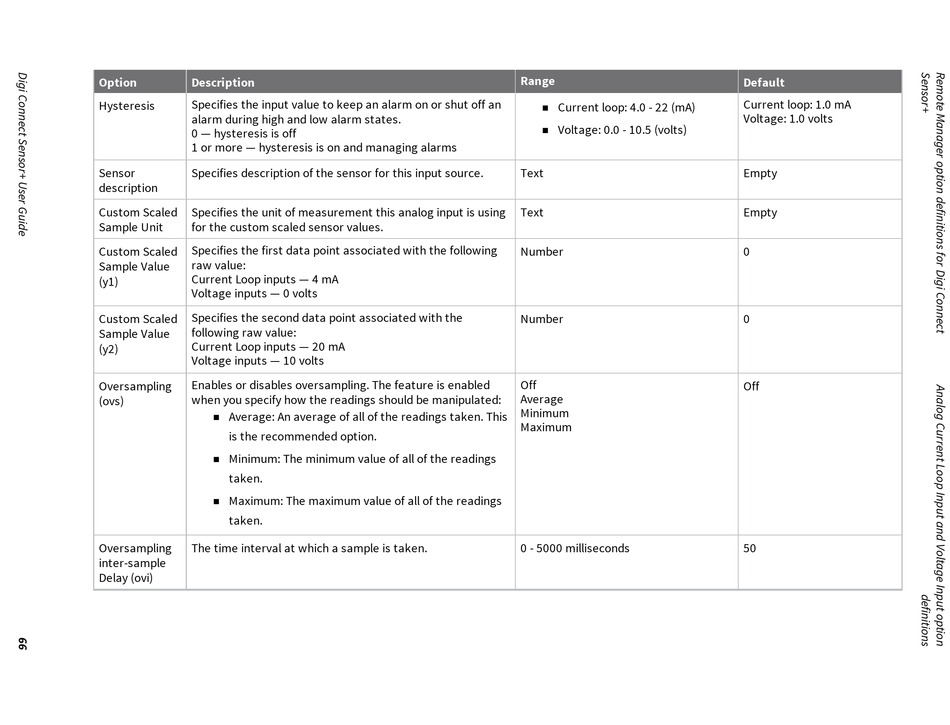

Digi Connect Sensor+ User Manual page 66

Option Description
Specifies the input value to keep an alarm on or shut off an
Hysteresis
alarm during high and low alarm states.
0 — hysteresis is off
1 or more — hysteresis is on and managing alarms
Sensor Specifies description of the sensor for this input source.
description
Custom Scaled Specifies the unit of measurement this analog input is using
Sample Unit for the custom scaled sensor values.
Specifies the first data point associated with the following
Custom Scaled
raw value:
Sample Value
Current Loop inputs — 4 mA
(y1)
Voltage inputs — 0 volts
Specifies the second data point associated with the
Custom Scaled
following raw value:
Sample Value
Current Loop inputs — 20 mA
(y2)
Voltage inputs — 10 volts
Enables or disables oversampling. The feature is enabled
Oversampling
when you specify how the readings should be manipulated:
(ovs)
Average: An average of all of the readings taken. This
n
is the recommended option.
Minimum: The minimum value of all of the readings
n
taken.
Maximum: The maximum value of all of the readings
n
taken.
Oversampling The time interval at which a sample is taken.
inter-sample
Delay (ovi)
Range
Current loop: 4.0 - 22 (mA)
n
Voltage: 0.0 - 10.5 (volts)
n
Text
Text
Number
Number
Off
Average
Minimum
Maximum
0 - 5000 milliseconds
Default
Current loop: 1.0 mA
Voltage: 1.0 volts
Empty
Empty
0
0
Off
50
