Data stream definitions

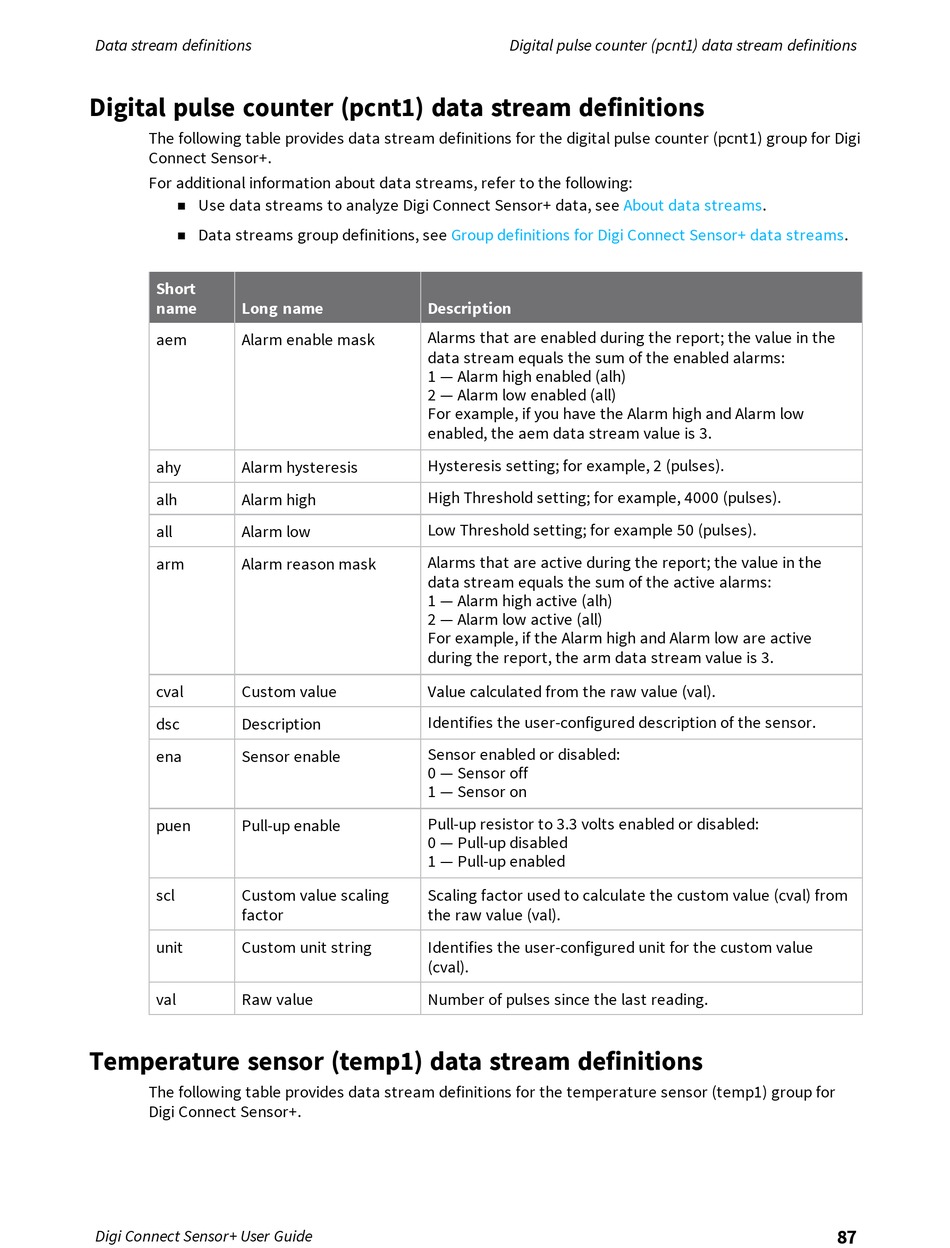

Digital pulse counter (pcnt1) data stream definitions

The following table provides data stream definitions for the digital pulse counter (pcnt1) group for Digi
Connect Sensor+.
For additional information about data streams, refer to the following:
Use data streams to analyze Digi Connect Sensor+ data, see
n
Data streams group definitions, see
n
Short
name Long name
aem Alarm enable mask
ahy Alarm hysteresis
alh Alarm high
all Alarm low
arm Alarm reason mask
cval Custom value
dsc Description
ena Sensor enable
puen Pull-up enable
scl Custom value scaling
factor
unit Custom unit string
val Raw value

Temperature sensor (temp1) data stream definitions

The following table provides data stream definitions for the temperature sensor (temp1) group for
Digi Connect Sensor+.
Digi Connect Sensor+ User Guide
Digital pulse counter (pcnt1) data stream definitions
Group definitions for Digi Connect Sensor+ data
Description
Alarms that are enabled during the report; the value in the
data stream equals the sum of the enabled alarms:
1 — Alarm high enabled (alh)
2 — Alarm low enabled (all)
For example, if you have the Alarm high and Alarm low
enabled, the aem data stream value is 3.
Hysteresis setting; for example, 2 (pulses).
High Threshold setting; for example, 4000 (pulses).
Low Threshold setting; for example 50 (pulses).
Alarms that are active during the report; the value in the
data stream equals the sum of the active alarms:
1 — Alarm high active (alh)
2 — Alarm low active (all)
For example, if the Alarm high and Alarm low are active
during the report, the arm data stream value is 3.
Value calculated from the raw value (val).
Identifies the user-configured description of the sensor.
Sensor enabled or disabled:
0 — Sensor off
1 — Sensor on
Pull-up resistor to 3.3 volts enabled or disabled:
0 — Pull-up disabled
1 — Pull-up enabled
Scaling factor used to calculate the custom value (cval) from
the raw value (val).
Identifies the user-configured unit for the custom value
(cval).
Number of pulses since the last reading.
About data streams.
streams.
