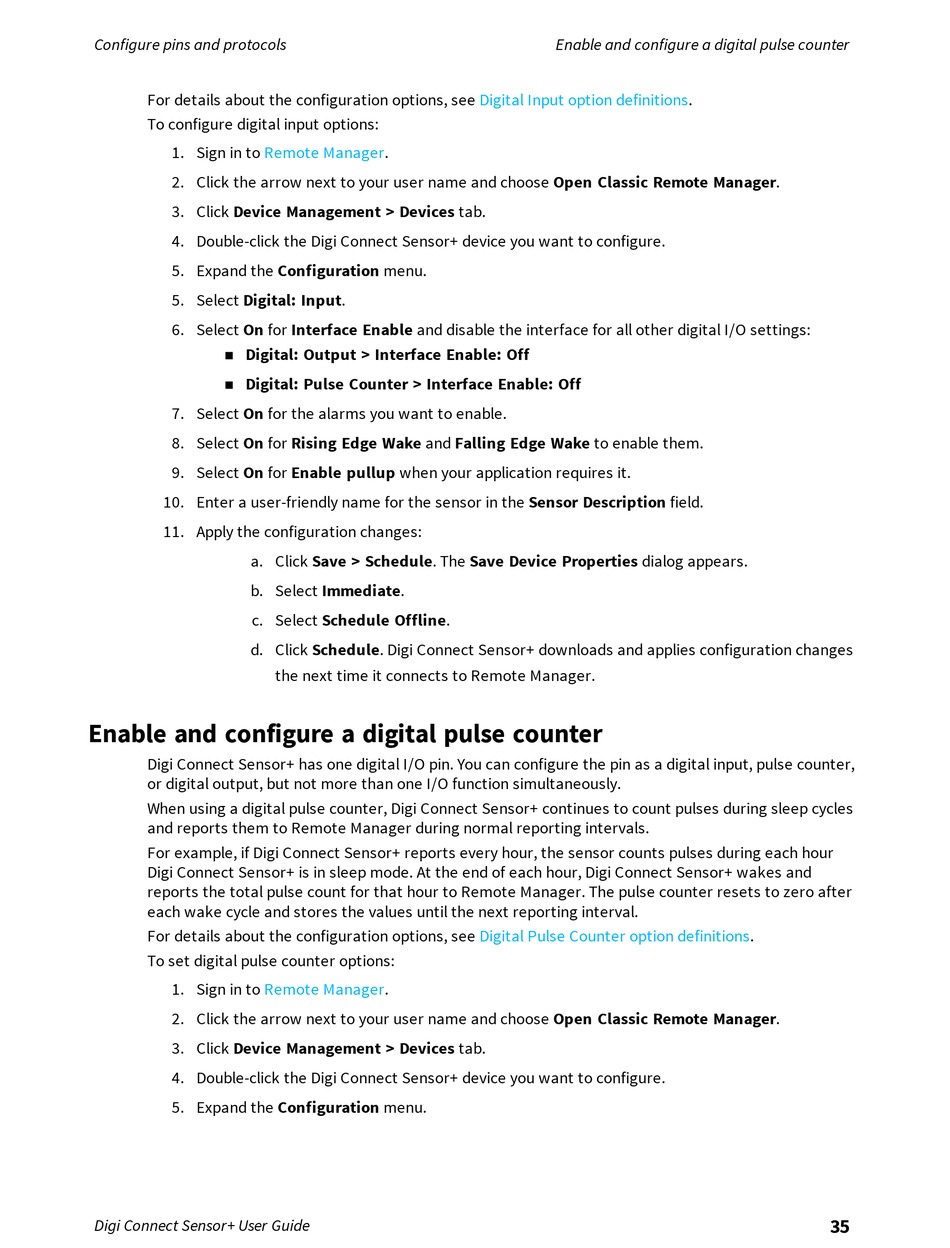

Configure pins and protocols
For details about the configuration options, see
To configure digital input options:
1. Sign in to Remote
2. Click the arrow next to your user name and choose Open Classic Remote Manager.
3. Click Device Management > Devices tab.
4. Double-click the Digi Connect Sensor+ device you want to configure.
5. Expand the Configuration menu.
5. Select Digital: Input.
6. Select On for Interface Enable and disable the interface for all other digital I/O settings:
Digital: Output > Interface Enable: Off
n
Digital: Pulse Counter > Interface Enable: Off
n
7. Select On for the alarms you want to enable.
8. Select On for Rising Edge Wake and Falling Edge Wake to enable them.
9. Select On for Enable pullup when your application requires it.
10. Enter a user-friendly name for the sensor in the Sensor Description field.
11. Apply the configuration changes:
a. Click Save > Schedule. The Save Device Properties dialog appears.
b. Select Immediate.
c. Select Schedule Offline.
d. Click Schedule. Digi Connect Sensor+ downloads and applies configuration changes

Enable and configure a digital pulse counter

Digi Connect Sensor+ has one digital I/O pin. You can configure the pin as a digital input, pulse counter,
or digital output, but not more than one I/O function simultaneously.
When using a digital pulse counter, Digi Connect Sensor+ continues to count pulses during sleep cycles
and reports them to Remote Manager during normal reporting intervals.
For example, if Digi Connect Sensor+ reports every hour, the sensor counts pulses during each hour
Digi Connect Sensor+ is in sleep mode. At the end of each hour, Digi Connect Sensor+ wakes and
reports the total pulse count for that hour to Remote Manager. The pulse counter resets to zero after
each wake cycle and stores the values until the next reporting interval.
For details about the configuration options, see
To set digital pulse counter options:
1. Sign in to Remote
2. Click the arrow next to your user name and choose Open Classic Remote Manager.
3. Click Device Management > Devices tab.
4. Double-click the Digi Connect Sensor+ device you want to configure.
5. Expand the Configuration menu.
Digi Connect Sensor+ User Guide
Manager.
the next time it connects to Remote Manager.
Manager.
Enable and configure a digital pulse counter
Digital Input option definitions.
Digital Pulse Counter option definitions.
