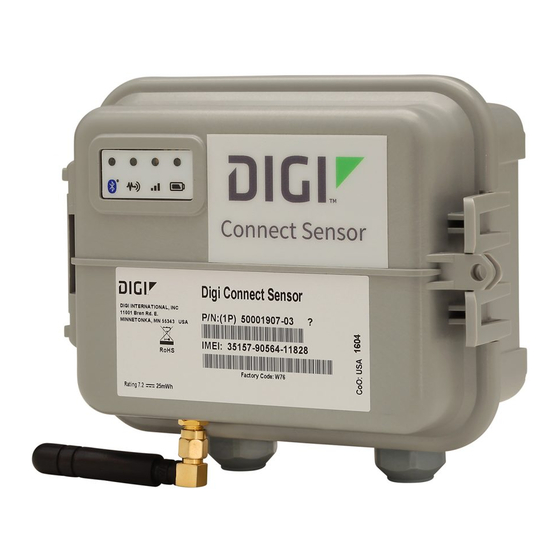

- Page 1 Digi Connect Sensor Telit Modem Firmware Update Update Guide...
- Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of Digi International. Digi provides this document “as is,” without warranty of any kind, expressed or implied, including, but not limited to, the implied warranties of fitness or merchantability for a particular purpose.
-
Page 3: Table Of Contents
Contents Digi Connect Sensor+ firmware and cellular modem firmware update Update process Update the Connect Sensor firmware Update the cellular modem firmware Update Connect Sensor+ firmware from Digi Remote Manager Prerequisites Step 1: Open Remote Manager Step 2: Update the Connect Sensor+ firmware... -
Page 4: Digi Connect Sensor+ Firmware And Cellular Modem Firmware Update
Digi Connect Sensor+ firmware and cellular modem firmware update This document describes how to update Connect Sensor+ firmware and the cellular modem firmware to resolve cellular brown-out failures. It applies to the Connect Sensor+ containing one of these LTE modems:... -
Page 5: Update Connect Sensor+ Firmware From Digi Remote Manager
5. Click the device ID to open your device. The Device ID looks like this string: 00010000- 00000000-03566100-72829951. 6. Check the Firmware Version of the device. Connect Sensor+ firmware version 2.1.1.3 or later is needed to update the modem firmware. -
Page 6: Step 2: Update The Connect Sensor+ Firmware
3. Select the desired Connect Sensor+ firmware update file and click Open. 4. Click Update. The next time the Connect Sensor+ is scheduled to connect to Remote Manager, it will start the firmware update process. To cause the device to connect immediately, press the Wake button on the device. -
Page 7: Update The Cellular Modem Firmware Over The Air (Fota)
Update the cellular modem firmware over the air (FOTA) The update process is initiated from the Digi Remote Manager. It requires a working cellular connection. It does not require physical access to the device. Prerequisites Remote manager account Device ID of the Connect Sensor+ that you wan to update... -
Page 8: Step 3: Determine The Update String
Model and string Revision Update file name Patch size LE910-SV1 4,277,678 20.00.012.3 UpdPkg_LE910_SV1_ 1G_20.00.012.3_ 20.00.017.0.bin ZnRwMS5kaWdpLmNvbQAyMQBhbm9ueW1vdXMAdGVzdABzdXBwb3J0L3RlbGl0AFVwZFBrZ19MRTkx MF9TVjFfMUdfMjAuMDAuMDEyLjNfMjAuMDAuMDE3LjAuYmlu LE910-SV1 20.00.015.0 UpdPkg_LE910_SV1_ 506,950 1G_20.00.015.0_ 20.00.017.0.bin ZnRwMS5kaWdpLmNvbQAyMQBhbm9ueW1vdXMAdGVzdABzdXBwb3J0L3RlbGl0AFVwZFBrZ19MRTkx MF9TVjFfMUdfMjAuMDAuMDE1LjBfMjAuMDAuMDE3LjAuYmlu LE910-NA1 20.00.524.0 UpdPkg_LE910_NA1_ 932,846 1G_20.00.524.0_ 20.00.527.0.bin ZnRwMS5kaWdpLmNvbQAyMQBhbm9ueW1vdXMAdGVzdABzdXBwb3J0L3RlbGl0AFVwZFBrZ19MRTkx MF9OQTFfMUdfMjAuMDAuNTI0LjBfMjAuMDAuNTI3LjAuYmlu Digi Connect® Sensor Telit Modem Firmware Update... -
Page 9: Step 4: Initiate The Firmware Update
Step <sci_request version="1.0"> <data_service allowOffline="true" synchronous="false"> <targets> <device id="#Device ID#"/> </targets> <requests> <device_request target_name="FTP_OTA" format="base64"> #Update string# </device_request> </requests> </data_service> </sci_request> 4. Click Send. 5. Enter your user name and password if prompted. Digi Connect® Sensor Telit Modem Firmware Update... -
Page 10: Updating Multiple Devices
Update the cellular modem firmware over the air (FOTA) Step 4: Initiate the firmware update The next time the Connect Sensor+ is scheduled to connect to Remote Manager, it will start the firmware update process. To cause the device to connect immediately, press the Wake button on the device. -
Page 11: Step 5: Confirm The New Firmware Revision
Check if the device has connected to the Remote Manager since the firmware update was initiated. In Remoter Manager, click Devices to display the device page. Click Summary Dashboard. Repeat Step 5 to refresh the modem firmware revision on the device page. Try the FOTA update again. Digi Connect® Sensor Telit Modem Firmware Update...
