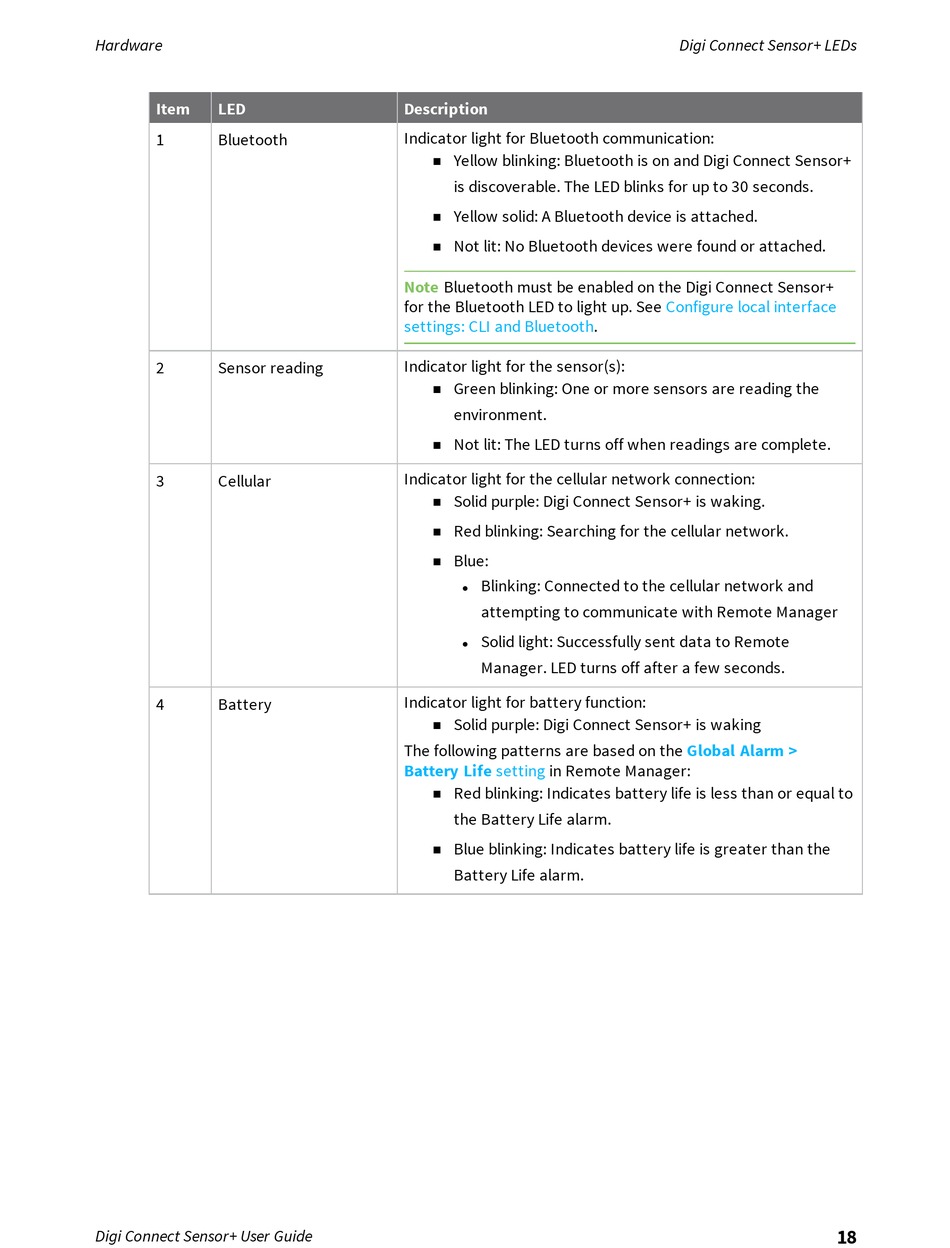

Digi Connect Sensor+ User Manual page 18

Hardware
Item LED
1 Bluetooth
2 Sensor reading
3 Cellular
4 Battery
Digi Connect Sensor+ User Guide
Description
Indicator light for Bluetooth communication:
Yellow blinking: Bluetooth is on and Digi Connect Sensor+
n
is discoverable. The LED blinks for up to 30 seconds.
Yellow solid: A Bluetooth device is attached.
n
Not lit: No Bluetooth devices were found or attached.
n
Note Bluetooth must be enabled on the Digi Connect Sensor+
for the Bluetooth LED to light up. See
settings: CLI and Bluetooth.
Indicator light for the sensor(s):
Green blinking: One or more sensors are reading the
n
environment.
Not lit: The LED turns off when readings are complete.
n
Indicator light for the cellular network connection:
Solid purple: Digi Connect Sensor+ is waking.
n
Red blinking: Searching for the cellular network.
n
Blue:
n
Blinking: Connected to the cellular network and
l
attempting to communicate with Remote Manager
Solid light: Successfully sent data to Remote
l
Manager. LED turns off after a few seconds.
Indicator light for battery function:
Solid purple: Digi Connect Sensor+ is waking
n
The following patterns are based on the
Battery Life setting in Remote Manager:
Red blinking: Indicates battery life is less than or equal to
n
the Battery Life alarm.
Blue blinking: Indicates battery life is greater than the
n
Battery Life alarm.
Digi Connect Sensor+ LEDs
Configure local interface
Global Alarm >
