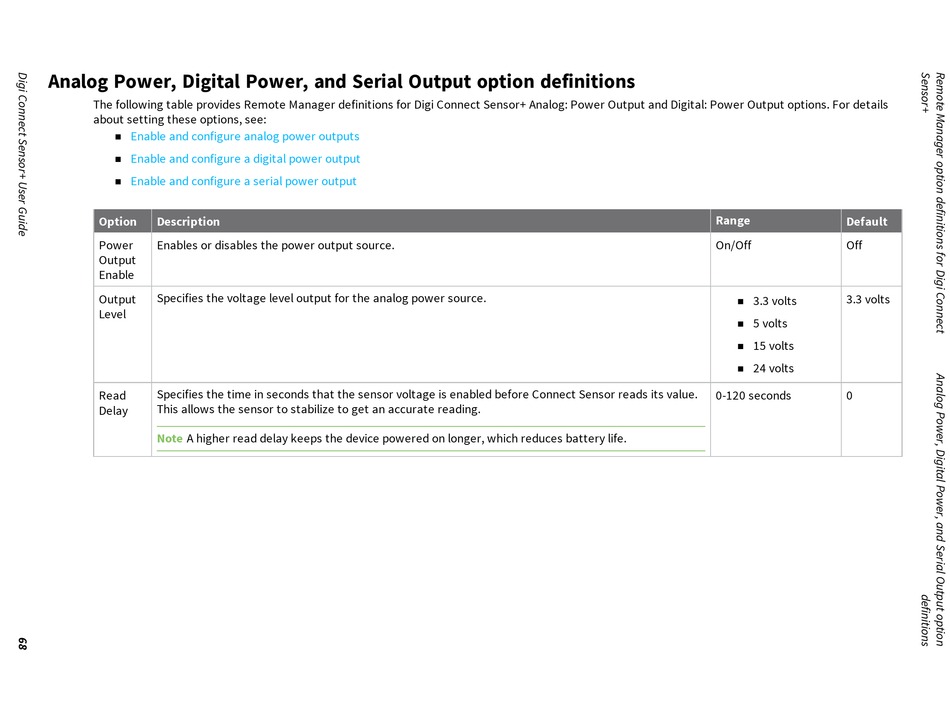

Analog Power, Digital Power, and Serial Output option definitions

The following table provides Remote Manager definitions for Digi Connect Sensor+ Analog: Power Output and Digital: Power Output options. For details
about setting these options, see:
Enable and configure analog power outputs
n
Enable and configure a digital power output
n
Enable and configure a serial power output
n
Option Description
Power Enables or disables the power output source.
Output
Enable
Specifies the voltage level output for the analog power source.
Output
Level
Specifies the time in seconds that the sensor voltage is enabled before Connect Sensor reads its value.
Read
This allows the sensor to stabilize to get an accurate reading.
Delay
Note A higher read delay keeps the device powered on longer, which reduces battery life.
Range
Default
On/Off Off
3.3 volts
3.3 volts
n
5 volts
n
15 volts
n
24 volts
n
0-120 seconds 0
