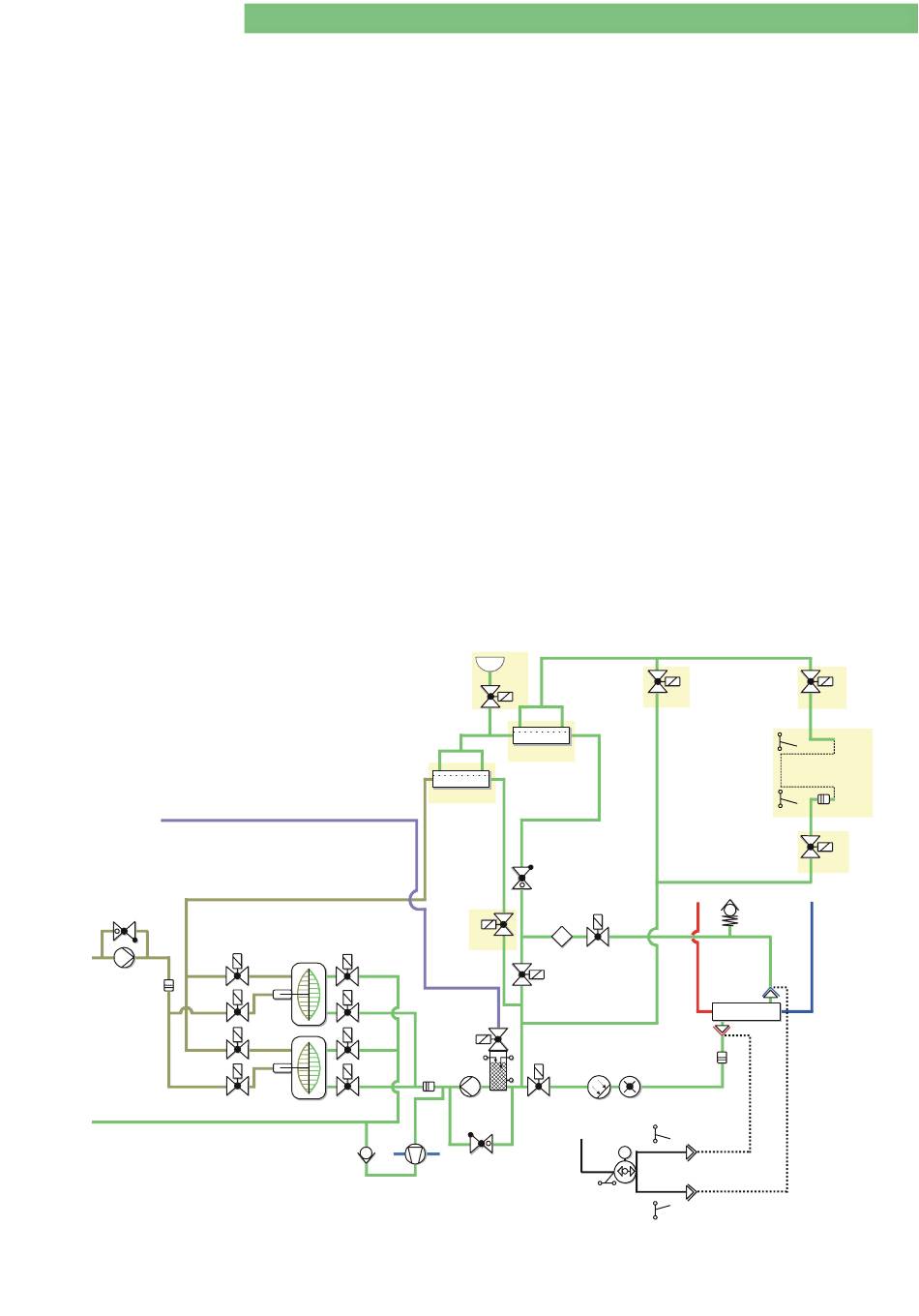

Fig.: Excerpt Flow Diagram for HDF Online
BA-TE-DE08C M.KAY
Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd
4 . T S M S e r v i c e P r o g r a m
• A positive pressure is built up with the FPE pump.
• The pump is stopped and the valves closed if the set-point pressure for PDA
= +400 mmHg is reached.
• The PDA reference value is stored after a wait state of 5 s.
• This reference value is compared with the actual value after 30 s.
• If the deviation is < 10 mmHg the next test step is performed.
Test Step 1
VLA, VEBK1/2, VABK1/2---------------- closed
Test Step 2
VLA, VDEBK1/2, VDABK1/2 ------------- closed
Note
Only if start pressure was positive
After the second test step a leak proof test of the membranes is performed. The
valves have the following position:
VDEBK/VABK: ---------------------------- opened
VDABK/VEBK/VLA: ----------------------- closed
Test Step 2a
Note
Test step 2a and 2b only for HDF online machines.
VLA Air separator valve: ------------------ closed
VDFF DF filter valve: ---------------------- closed
VSB Substitution bypass valve: ------------ closed
VSAE Substitution connection inlet valve: - closed
Test Step 2b
VLA Air separator valve: ------------------ closed
VDFF DF filter valve : --------------------- closed
VSB Substitution bypass valve: ------------ closed
VSAA Substitution connection outlet valve: closed
Test Step 3
VLA, VDE, VDA ------------------------ closed
BK1
VABK1
VDABK1
M SBK1
VABK2
VDABK2
FBK2
M SBK2
BK2
C
RVUFP
UFP
HFB
VBE
HDF Filter
DF Filter
DDE
TSDE
T
VDFF
VDE
VBP
VLA
LAFS
BL
8
LA
VDA
FPA
Air
B
VD
RVFPA
LVD
1 / 2 0 1 0
VSB
A
PEV*
Z.D.
Dialyser
V.D.
FVD
PDA
SBS1
SB1
M
SB2
SBS2
B. Braun Avitum AG
4 - 96
VSAE
PSAUS
PSABF
FSU
VSAA
V
