B. Braun Dialog+ Service Manual page 110

+
Dialog
SW 9.xx
P11
B
A
P1
P4
U28
U33
U35 U36
U39
U43
U55
U56
JP1
P11
P13
01234 5 6 7
Controller
Setting for Jumpers JP1 and JP2
Firmware Update not Possible (Protected)
JP1
CWP
Firmware Update Possible (Enabled)
JP1
CWE
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 3_1-2010.doc/pdf <100329> yymmdd
3 . R e p a i r I n s t r u c t i o n s
B S1
P2
U7
L33
U30
FPGA
U27
U45
U46
U53
S1
0 1 234 5 6 7
Supervisor
JP2
SWP
JP2
SWE

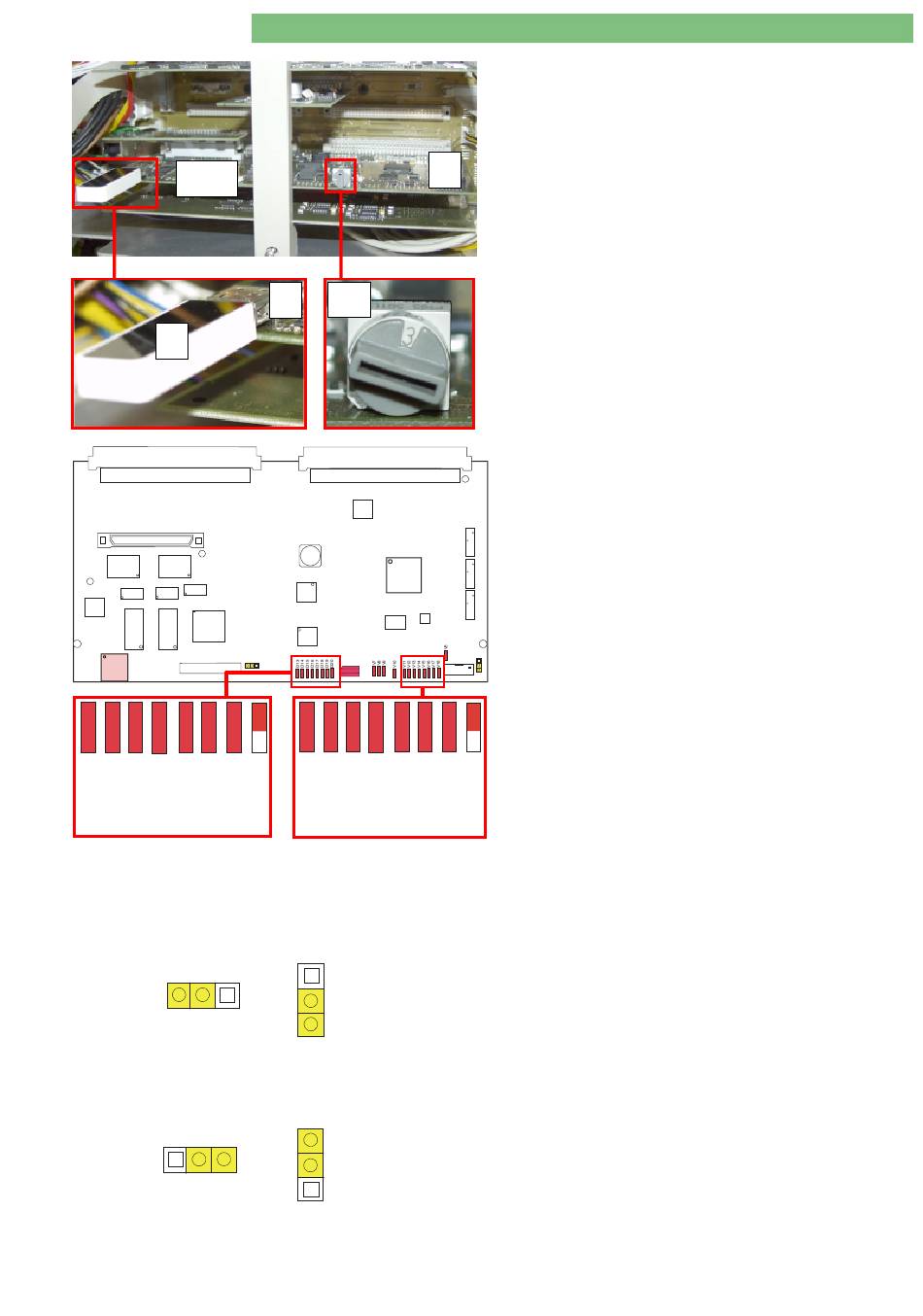

6. Connect USB stick A to USB port B (P11) on digital
board C.
7. Turn service switch S1 to position 3 – SW installation.
8. Switch on machine.
C
9. The USB stick is detected.
10. The LLC and LLS software is installed automatically.
Both LLC/LLS LEDs show the installation progress:
LED 0: Is off if firmware is not updated
LED 1: Respective software is updated
LED 2: Checksum and configuration files are loaded
P5
LED 3: USB stick consistency is verified
P6
LED 4: Binary files are loaded
LED 5: Binary images are verified
P7
LED 6: Flash ROMs are programmed/under verification
11. A successful software installation is indicated by:
JP2
- LEDs 7: flashing
P14
- short beep from the SMPS-MC
- LED 0 : on (only if firmware is updated)
- LEDs 1 to 6: on
12. Switch off machine.
13. Remove USB stick A from the USB port B on the digital
board C.
The firmware for the controller and supervisor is protected by
the jumpers JP1 and JP2. The position for both jumpers are
set to CWP/SWP (controller/supervisor write protect). The
jumpers must be in this position to protect the LLC and LLS
firmware.
The installation of the firmware is normally not required
during the installation of LLC and LLS.
If the firmware has to be installed additionally, it will be
indicated in the installation instructions. JP1 and JP2 have to
be set to this position (Default CWE and SWE:
controller/supervisor write enabled). Set the jumpers back to
the CWP/SWP setting after installation.
1 / 2 0 1 0 3 - 48
B. Braun Avitum AG
