Test 1.12 Concentrate Pumps and Conductivity

BA-TE-DE08C M.KAY
Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd
4 . T S M S e r v i c e P r o g r a m
You can skip directly to the calibration of the conductivity sensors BICLF/ENDLF
by pressing the
You can set the pumps BICP/KP, flow pump FPE and the heater power H %.
All balance chamber valves are open and the flow pump FPA works with the
same speed as FPE.
The machine is in main flow. The machine can suck-in concentrate with the
concentrate pumps BICP/KP for the preparation of the conductivity to test the
conductivity sensors BICLF/ENDLF/ENDLF-S.
You can connect a measurement instrument at the dialyser couplings or
between FPE and the balance chamber.
The supervisor displays the head speed BICP-S/KP-S of the concentrate pumps.
Increase the speed [rpm] until the flow pump FPE has built up a flow of 750
ml/min. Thereby the pulsating flow of the pumps have no influence on the
conductivity measurement.
1 / 2 0 1 0

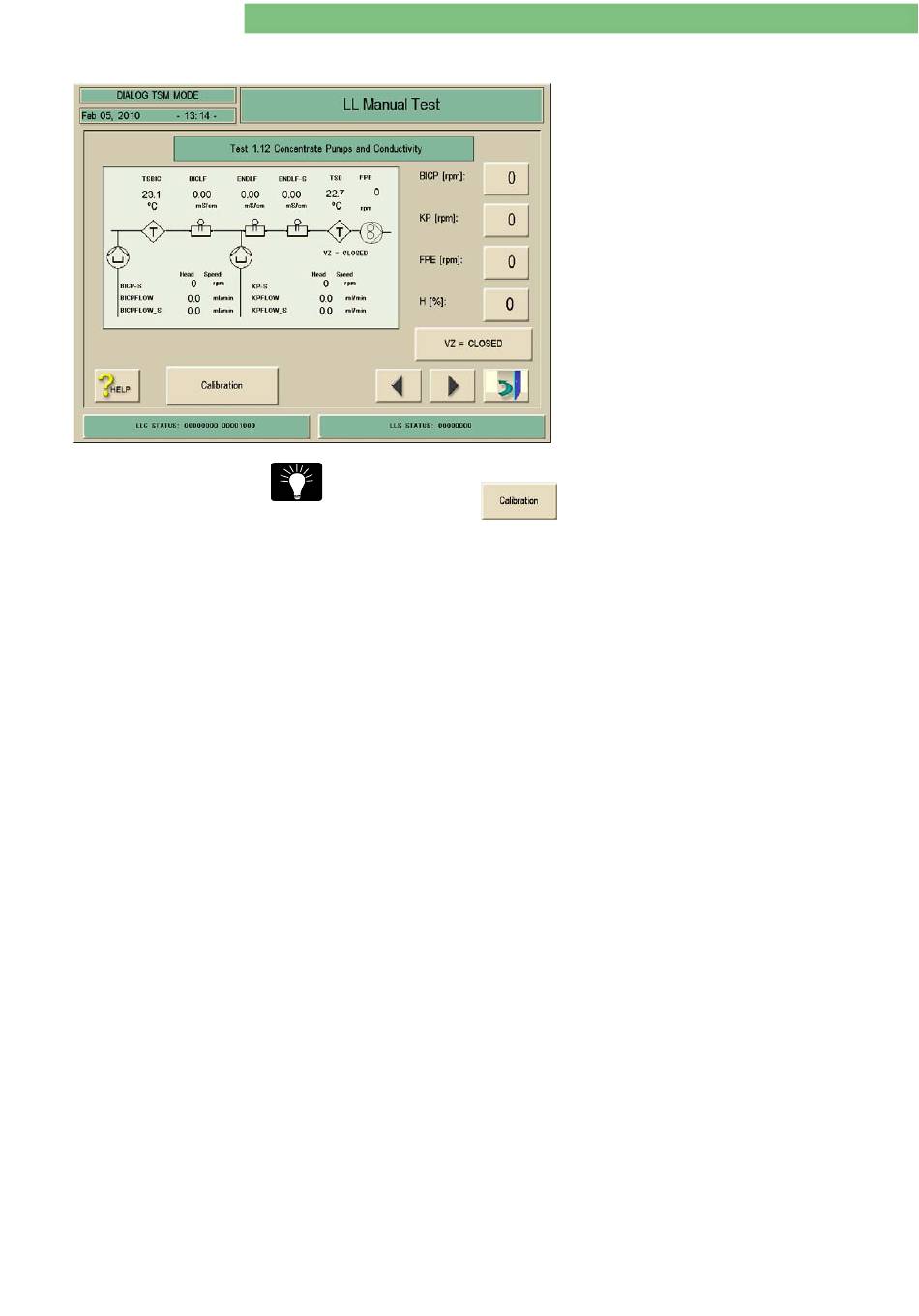

1. Activate the Concentrate
Conductivity menu with the Concentrate
Pumps and Conductivity key in the LL Manual
Test menu. The following menu is displayed.
2. Check the functions with the appropriate keys.
key.
