Read All Trends - B. Braun Dialog+ Service Manual

+
Dialog
SW 9.xx

3.6.10.3 Read All Trends

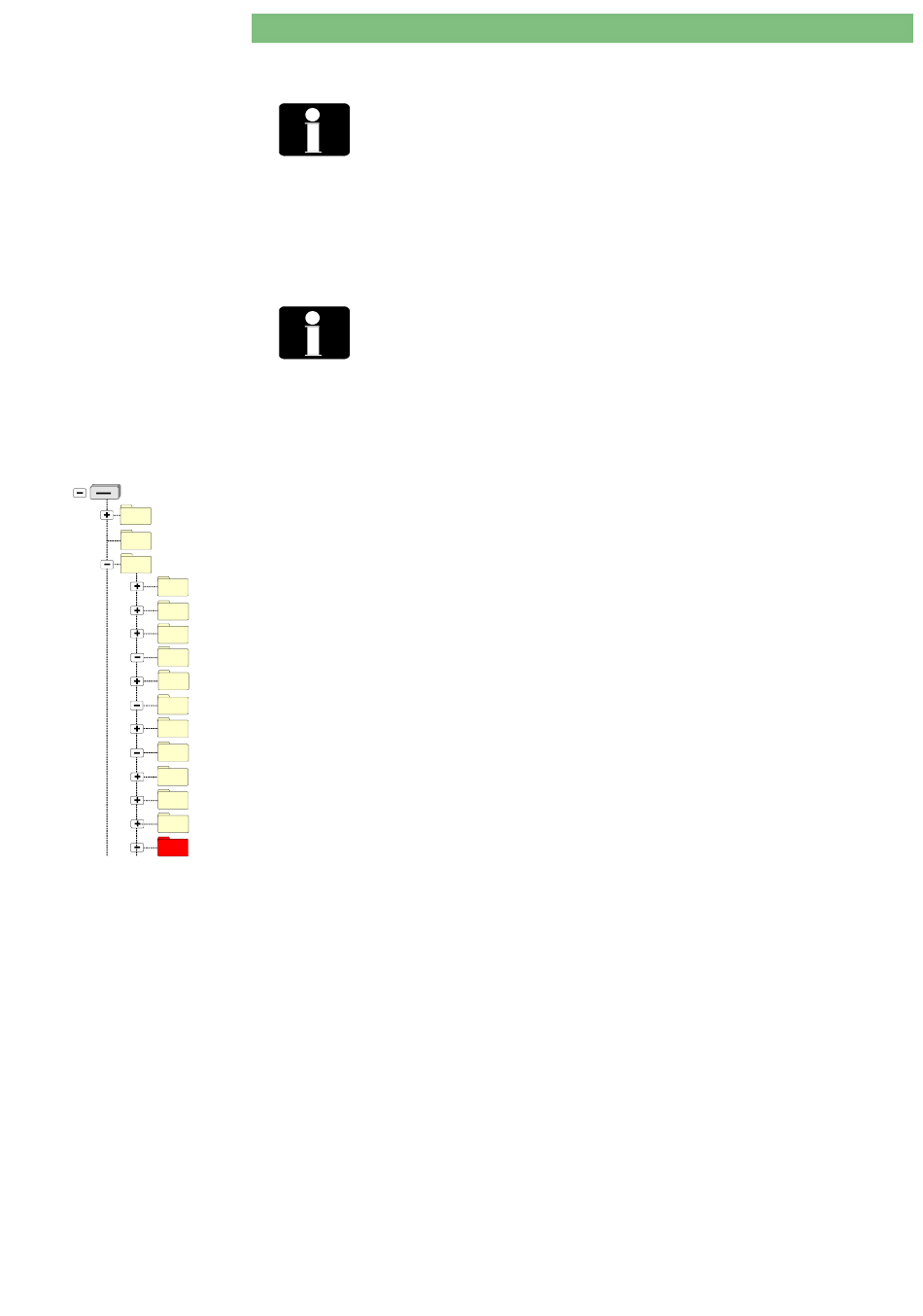

Removable Disk (X: - FSU USB Stick)
BlueCat
DISKTYPE
USER
04_Write_Languages
05_Write_Calibration_Data
06_Write_System_Configuration
09_Card_01_Read_Card_Image
09_Card_02_Write_Card_Image
09_Card_03_Read_Patient_Diskette
09_Card_04_Write_Patient_Diskette_to_Card
09_Card_05_Read_Patient_Card
09_Card_06_Write_Patient_Card
10_Read_System_Configuration
11_Read_Calibration_Data
12_Read_All_Trends
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 3_1-2010.doc/pdf <100329> yymmdd
3 . R e p a i r I n s t r u c t i o n s
A separate software program is required to analyse the trends, i.e. the
Trend Viewer.
The utility reads all possible backup trend files on the Dialog+ hard disk drive
(CFC) (max. 20 trends) and writes them to the USB stick. Files from different
Dialog+ machines are placed in different subdirectories on the USB stick. The
subdirectory name USER/12_Read_All_Trends/ <SERNUM>/ is created from the
serial number of the Dialog+ machine. Files from the same machine are placed
in different subdirectories where the subdirectory names are created from the
trend creation dates <DATE>.
<SERNUM>
The subdirectory name is created from the serial number <SERNUM> of
the Dialog+. If the serial number is not set on the Dialog+ <SERNUM> is
equal to '-----'.
<DATE>
The subdirectory name is created from a date. Format: YYYY-MM-
DD.hh.mm.
In case of TRENDS: the date is the date of the trend start.
See the results in the directories with the following path for the
Read All Trends file tbd1.zip.
Read All Trends
USB:\USER\12_Read_All_Trends\{Serial
DD.hh.mm}\tbd1.zip
Example:
USB:\USER\12_Read_All_Trends\{Serial
12.14.25}\tbd1.zip
Y Y Y Y : Year 2007
M M : 09 month September
D D : 12 Wednesday
h h : 14 hours
m m : 25 minutes
1 / 2 0 1 0 3 - 87
Number}\{YYYY-MM-
Number}\2007-09-
B. Braun Avitum AG
