Test 1.4 Heparin Pump - B. Braun Dialog+ Service Manual

+
Dialog
SW 9.xx
4.8.2.4

Test 1.4 Heparin Pump

HP Syringe Sensor
BA-TE-DE08C M.KAY
Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd
4 . T S M S e r v i c e P r o g r a m
The forward feed distance is displayed in mm (only if the syringe is inserted
HP Position
and locked). The counter is reset if the lock sensor is opened. The distance is
detected from the signal of the light barrier on the motor axle.
The sensor for the sensor plate of the syringe detects an inserted syringe.
Sensor to open the clasp nut.
Lock Sensor
(The clasp nut is assembled on the drive spindle and limits the max. pressure
load of the heparin pump).
Activates/switches off the heparin pump.
HP Motor State
Selection between slow and fast forward feed.
HP Speed
1 / 2 0 1 0
1. Activate the Heparin Pump menu with the
Heparin Pump key in the LL Manual Test menu.

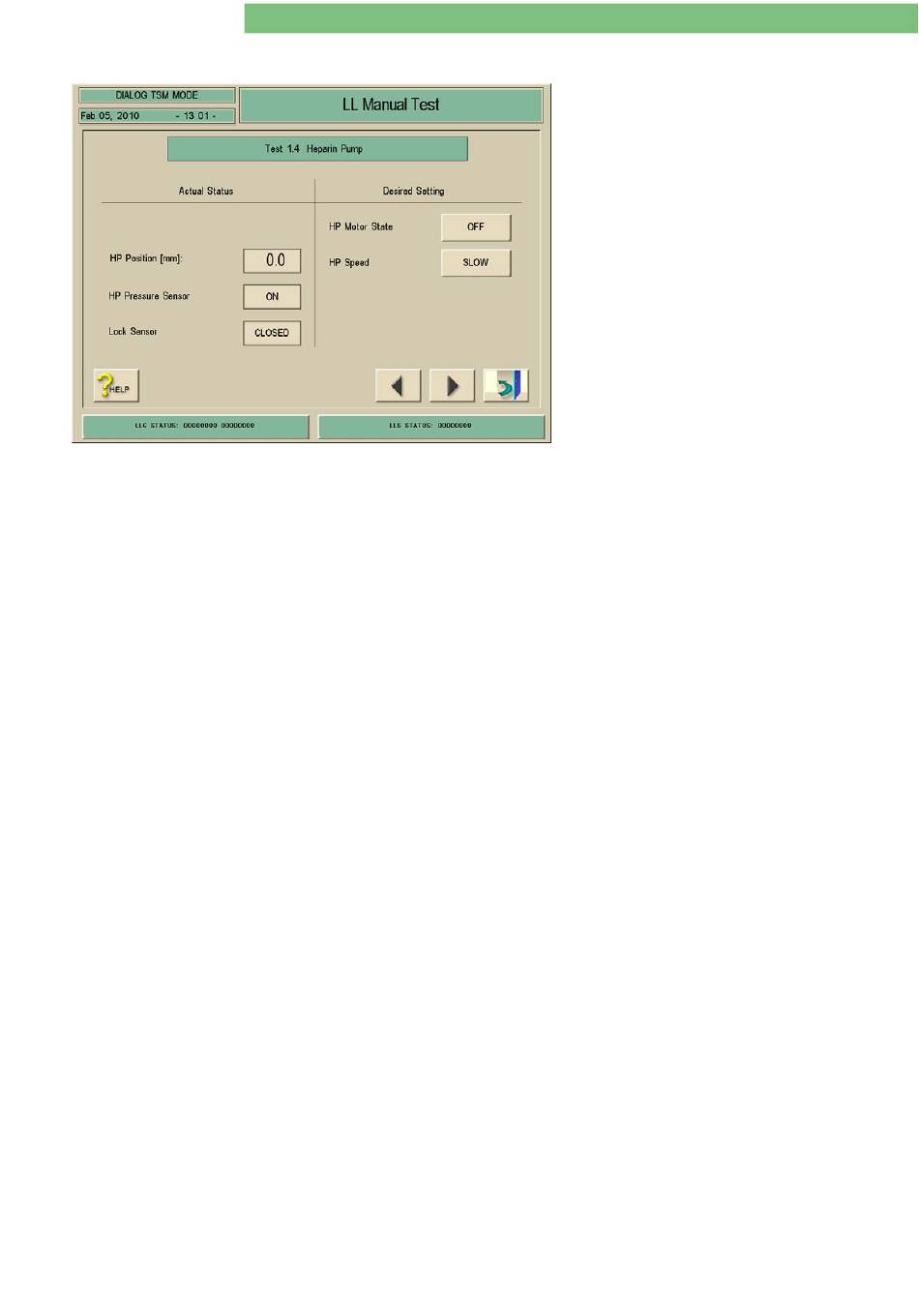

The following menu is displayed for the
heparin pump Compact.
2. Check the functions with the appropriate keys.
4 - 78
B. Braun Avitum AG
