Test 1.16 Pressure Water Part

Pressure in mbar
BA-TE-DE08C M.KAY
Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd
4 . T S M S e r v i c e P r o g r a m
You can skip directly to the calibration of the pressure sensors PE and PDA by
pressing the
The degassing pump EP can be set. The degassing bypass valve VEB can be
opened/closed.
The pressure at the degassing pressure sensor PE can be set with the degassing
pump EP and the degassing bypass valve VEB.
The pressure at the outlet dialysate pressure sensor PDA is set manually with a
syringe at the dialyser couplings.
The pressure can be displayed in mmHg or in mbar, depending on selection.
Conversion Factor mmHg to mbar
Conversion Factor = 1.3332
Example:
-100 mmHg
–400 mmHg
1. Activate the Pressure Water Part menu with
the Pressure Water Part key in the LL Manual

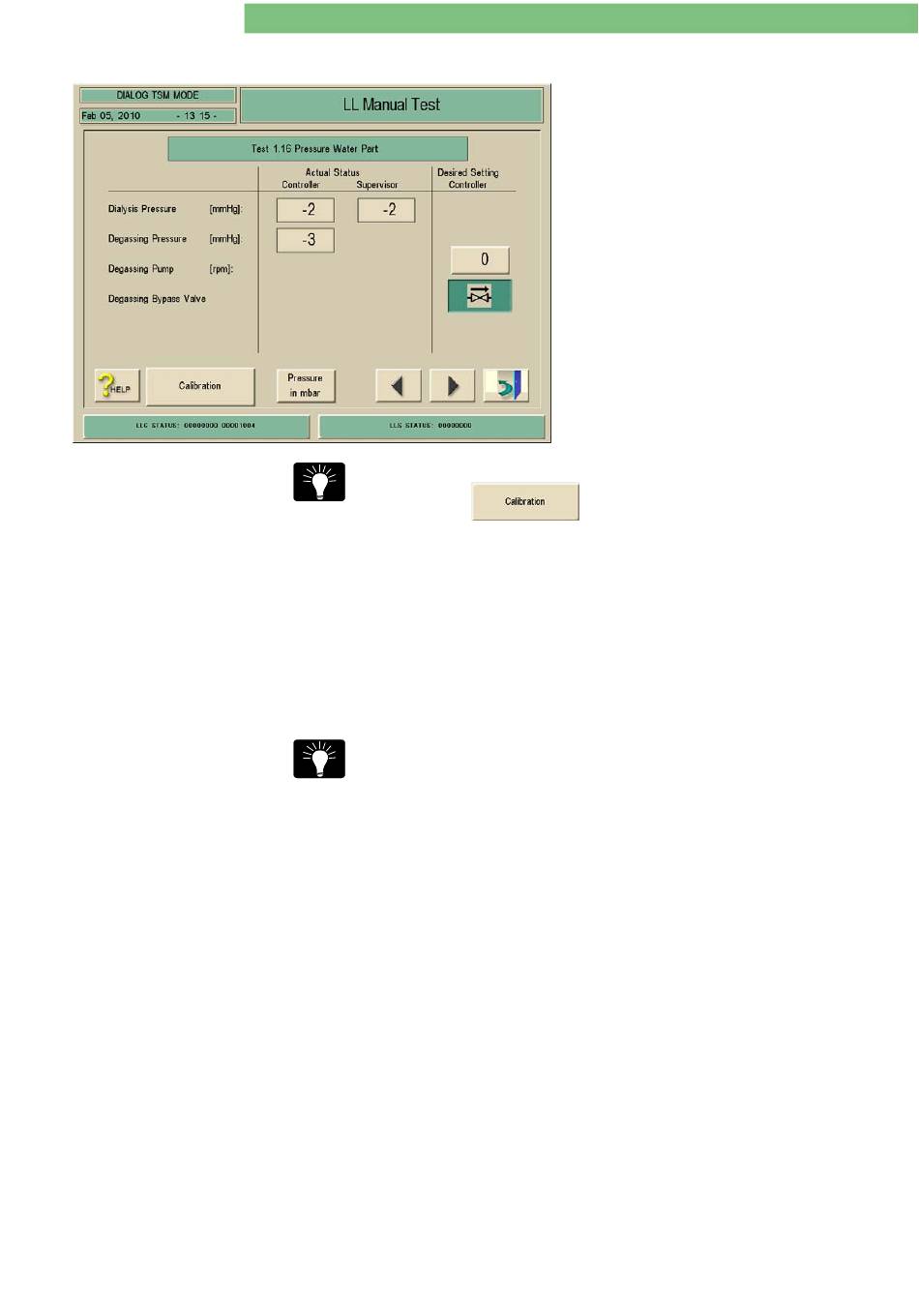

Test menu. The following menu is displayed.
2. Check the functions with the appropriate keys.
key.
approx. –133 mbar
approx. –533 mbar
