B. Braun Dialog+ Service Manual page 418

+
Dialog
SW 9.xx

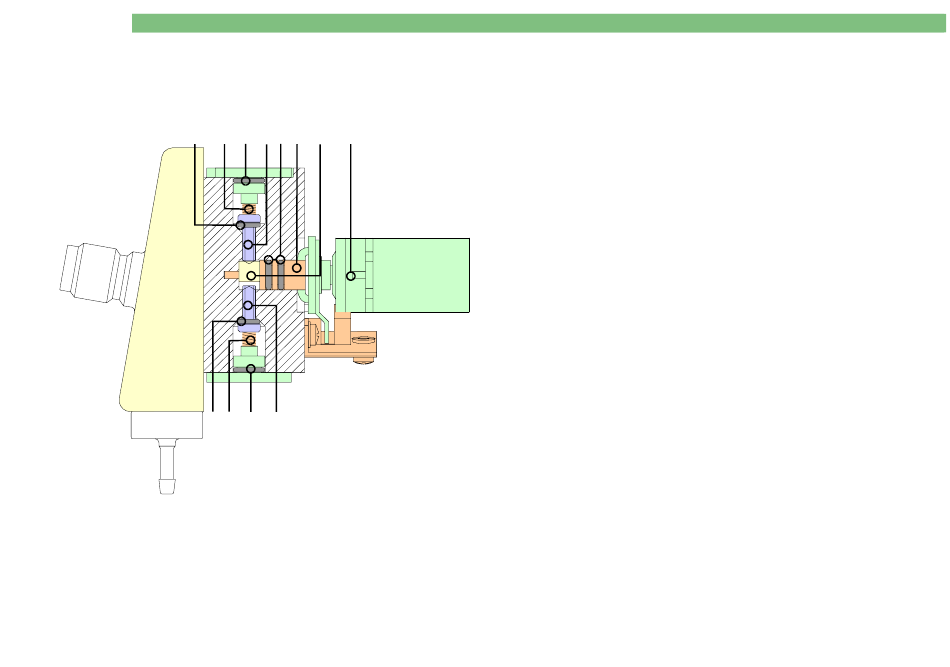

Rinsing Bridge 4
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
7 . S p a r e P a r t s L i s t
1 2 3 4 5 6 8
7
1 2 3 4
Pos. Art. No. Qty.
- 3451898B 1 Repair kit disinfection valve
consisting of:
2 x O-ring 2.7 x 1.5
2 x O-ring 5 x 1.6
3 x O-ring 6.4 x 1.3
2 x Cover
4 x Countersunk screw M3x8
2 x Valve tappet
2 x Pressure spring
1 x Eccecntric roller
1 x Eccecntric shaft
1 34570012
10 O-ring 2.7 x 1.5
2 34517332
2 Pressure spring
3 3477106A
5 O-ring 6.4 x 1.3
4 34517324 2 Valve tappet
5 34570457 10 O-ring 5.0 x 1.6
6 34560858 1 Eccecntric roller
7 34560840 1 Eccecntric shaft
8 3451659D 1 Servomotor with board
1 / 2 0 1 0
Description
for the complete replacement of all
small parts in the disinfection valve
for cover valve tappet
for eccecntric shaft
servomotor and board must be
exchanged together
B. Braun Avitum AG
7 - 44
Comments
for valve tappet
for valve tappet
for VD
for VD,
