3.6.10

Read/Get Error Utilities

3.6.10.1 Read System Configuration

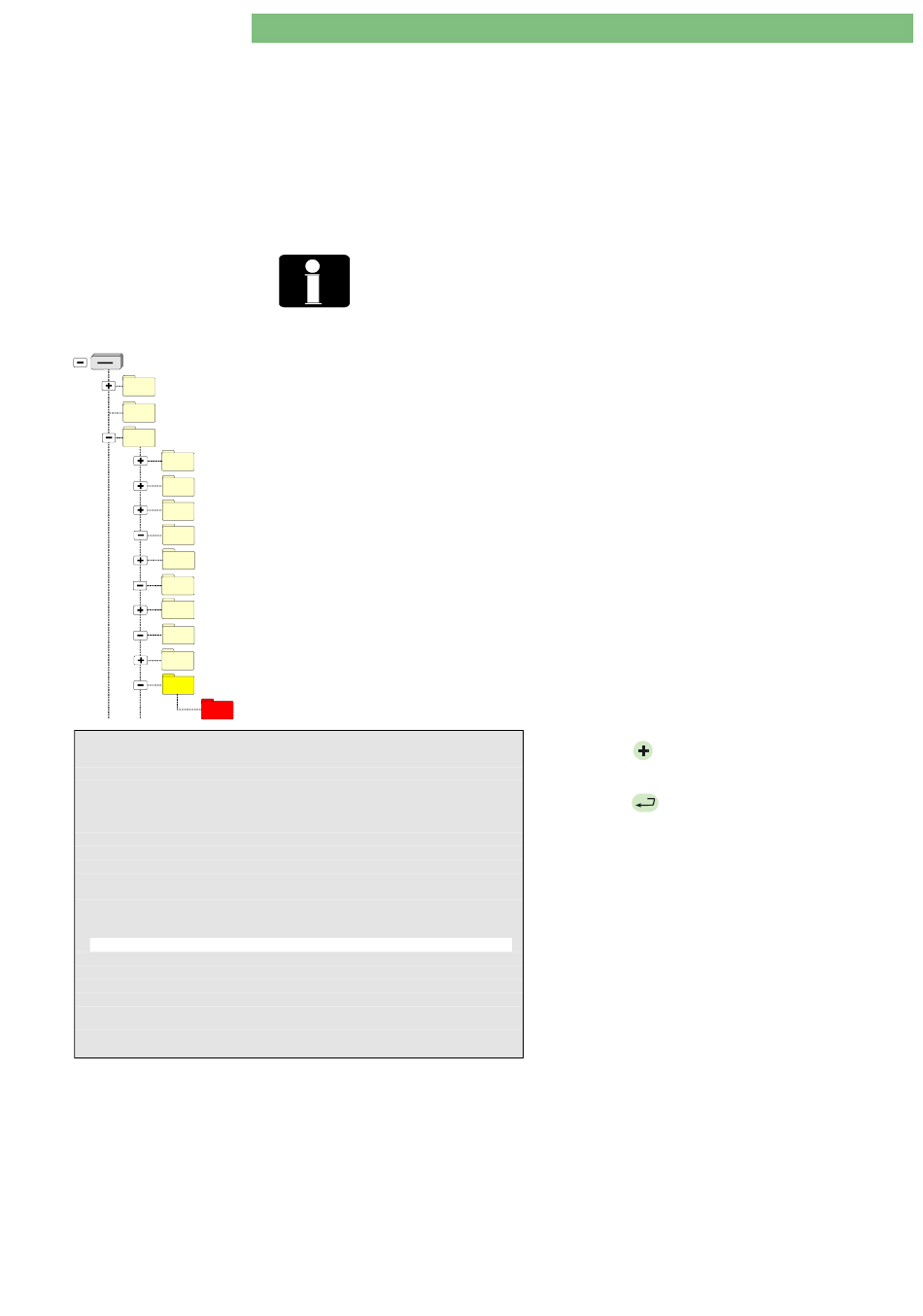

Removable Disk (X: - FSU USB Stick)
BlueCat
DISKTYPE
USER
04_Write_Languages
05_Write_Calibration_Data
06_Write_System_Configuration
09_Card_01_Read_Card_Image
09_Card_02_Write_Card_Image
09_Card_03_Read_Patient_Diskette
09_Card_04_Write_Patient_Diskette_to_Card
09_Card_05_Read_Patient_Card
09_Card_06_Write_Patient_Card
10_Read_System_Configuration
23532_V7_90
F i e l d S e r v i c e U t i l i t i e s V 2 . 0 0 - S e t M S T
01. Set System Version Number
02. Set Working Time Counter (WTC)
03. Kill Masterboot Record
04. Write Languages
05. Write Calibration Data
06. Write System Configuration
07. Undo Last Written
08. USB Stick Self Test
09. Select Menu of Card Reader Commands
10. Read System Configuration
11. Read Calibration Data
12. Read All Trends
13. Read Screenshots
14. Get Error (ErrorDisk)
BP-: move cursor up BP+: move cursor down AQ: exit – see Important Note EQ: execute
Important Note: To prevent the corruption of USB stick, before removing it,
please press AQ then follow the instructions on the screen!
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 3_1-2010.doc/pdf <100329> yymmdd
3 . R e p a i r I n s t r u c t i o n s
The group of read utilities reads data files from the Dialog+ hard disk drive
(CFC) and writes them to the FSU USB stick.
The utility reads the system configuration from Dialog+ hard disk drive (CFC)
and writes it to the USB stick. Files from different Dialog+ machines are placed
in different subdirectories on the USB stick. The subdirectory name
USER/10_Read_System_Configuration/ <SERNUM>_<TLC Version>/ is created
from the serial number and the TLC version number of the Dialog+ machine.
<SERNUM>_<TLC Version>
The subdirectory name is created from the serial number <SERNUM> and
the TLC version number of the Dialog+ machine. If the serial number is not
set on the Dialog+ <SERNUM> is equal to '-----'.
CRC = XXXX - OK
(Dialog+ Hard Disk)
(USB Stick → Dialog+ Hard Disk)
(USB Stick → Dialog+ Hard Disk)
(USB Stick → Dialog+ Hard Disk)
(USB Stick → Dialog+ Hard Disk)
(Dialog+ Hard Disk → USB Stick)
(Dialog+ Hard Disk → USB Stick)
(Dialog+ Hard Disk → USB Stick)
(Dialog+ Hard Disk → USB Stick)
(Dialog+ Hard Disk → USB Stick)
See the results in the subdirectories with the following path
for the System Configuration file config.xxu.
Read System Configuration
USB:\USER\10_Read_System_Configuration\{Serial
Number}_{TLC Version}\config.xxu
Example:
USB::\USER\10_Read_System_Configuration\23532_V7_90\
config.xxu
2 3 5 3 2 : Serial Number of the Dialog+ machine
V 7 _ 9 0 : TLC software version
1. Press BP and move the cursor down to select
the utility.
2. Press EQ to execute the utility.
1 / 2 0 1 0 3 - 83
