7.14 Miscellaneous

BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
7 . S p a r e P a r t s L i s t
Note: See also chapter 6 (Tubing Diagrams) - 34565337
A B
x

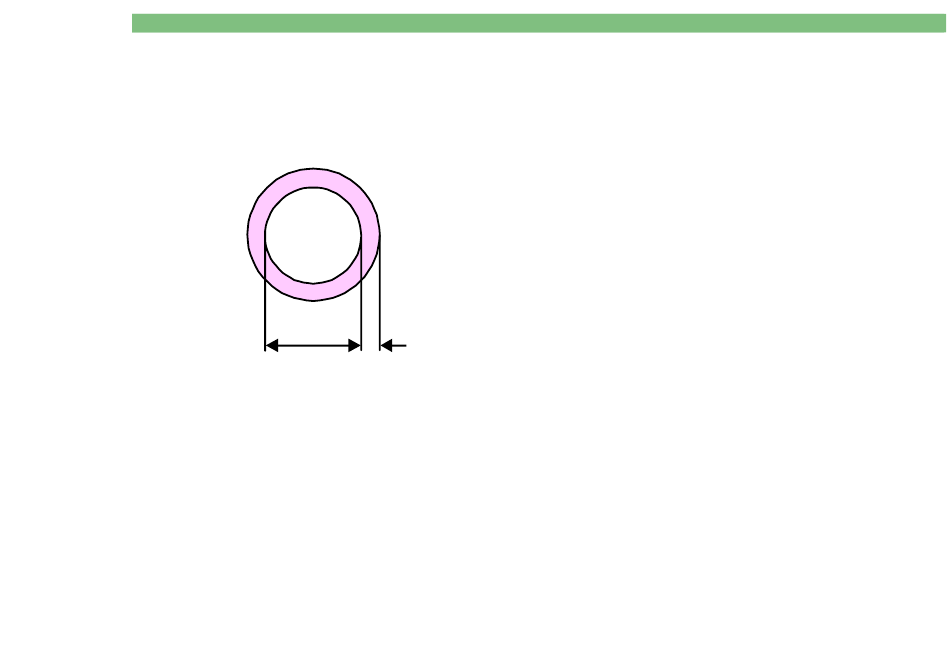

A x B Tubing
Pos. Art. No. Qty.
- 34565329
1m Tubing 12 x 2 / RAL 9001 (1 m)
2m Silicone tubing 8 x 2 (2 m)
- 34565221 10m Silicone tubing 6 x 3 (10 m)
- 34565256
2m Silicone tubing 6 x 1.75 / red (2m)
- 39238032
1 Single ear clamp 13.3
- 34565167
1 Silicone tubing 8 x 3,2 / red (3 m),
with two single ear clamps 17.5
- 39224538
1 Single ear clamp 17.5
- 34565264
2m Silicone tubing 6 x 1.75 (2 m)
- 34565191 10m Silicone tubing 5 x 3 (10 m)
- 34565248 10m Silicone tubing 5 x 1.5 / blue (10 m)
- 34565230 10m Silicone tubing 5 x 1.5 / red (10 m)
- 34565205
5m PUR tubing 3.6 x 1.1 (5 m)
- 34565272 10m PVC tubing 3.5 x 1 (10 m)
- 34565213 10m Silicone tubing 2.9 x 3 (10 m)
- 34565280
3m Silicone tubing 3.2 1.6 (3 m)
- 34565299
3m Silicone tubing 2 x 3 (3 m)
- 34565302
5m Silicone tubing 2 x 1.5 (5 m)
- 34565140 50m PVC tubing 10 x 3 / red (50 m)
- 3456517A
1 PVC tubing 10 x 3 / red (3 m), with two single
ear clamps 19.5
- 34565159 50m PVC tubing 10 x 3 / black (50 m)
- 3456518A
1 PVC tubing 10 x 3 / black, (3 m), with a single
ear clamp 19.5 and a tubing clamp 12-20 mm
- 39234126
1 Tubing clamp 12-20 mm
- 34565345
1m Silicone tubing 12 x 2.5 (1 m)
1 / 2 0 1 0
Description
internal high temperature tubing
for internal high temperature tubing
external high temperature tubing
for external high temperature tubing
for dialysate outlet
for dialysate outlet
B. Braun Avitum AG
7 - 53
Comments
transparent
for water inlet
for water inlet
