Dialog
SW 9.xx
4.8.1.10

DBI Maintenance

Pin Assignment RS 232 Test Plug
(Soldering Side)
BA-TE-DE08C M.KAY
Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd
4 . T S M S e r v i c e P r o g r a m
1 2 3
5
6 8 9
7
If the DBI option (for Nexadia/WAN-BSL (Bedside
Link) Network) was selected in the menu
Production Report/Low Level Options the Dialog
Bedside-Link Interface DBI Maintenance button is
displayed.
The RS 232 port (COM1) on the motherboard can
be tested (Sent Data and Received Data) in the
DBI Maintenance menu. A test plug A (art. no.
7703473) is required to perform the DBI test.
1. Connect the test plug A to the RS 232 port
(COM1) on the motherboard.
2. Switch on machine.

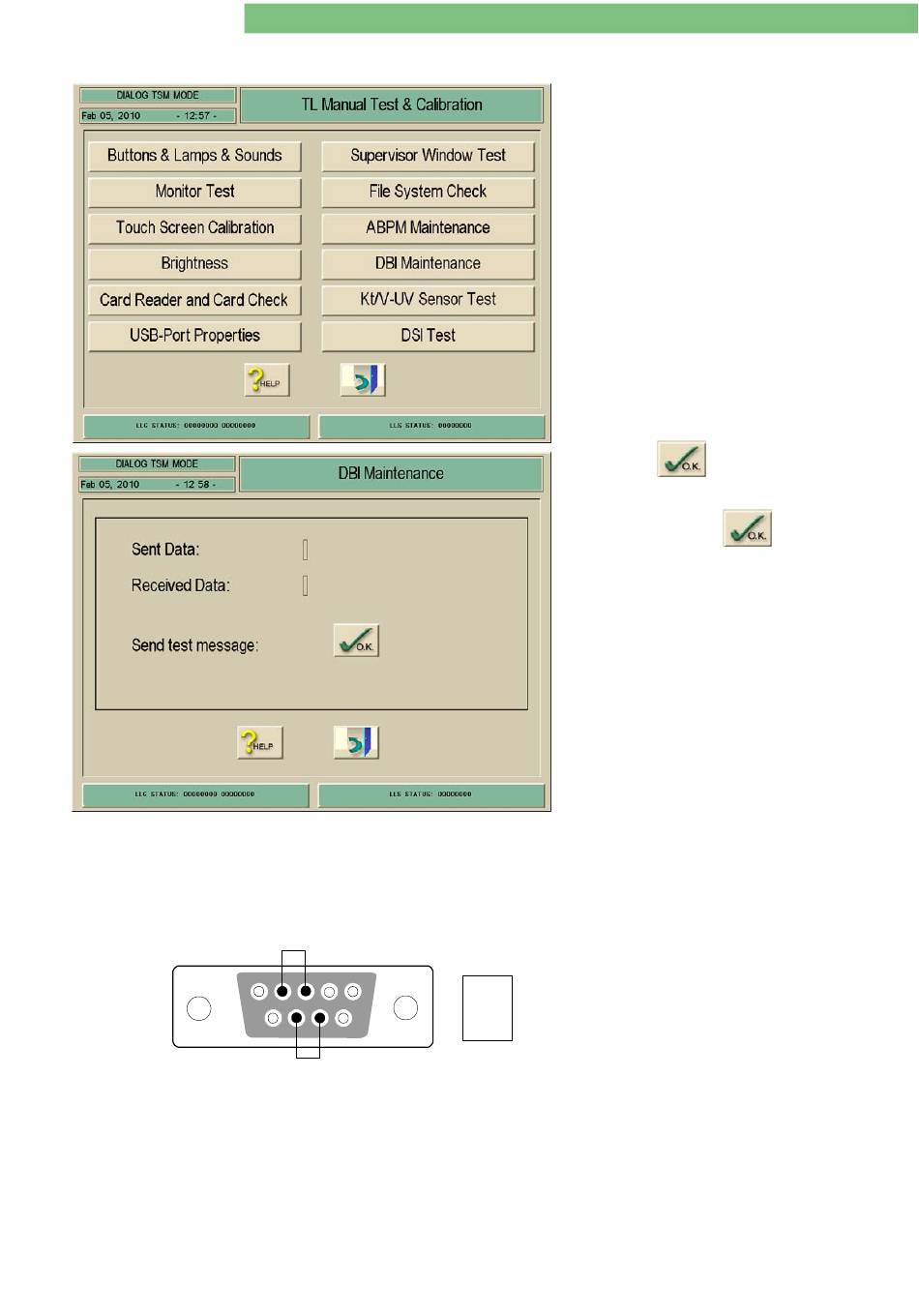

3. Open the DBI Maintenance menu with the DBI
Maintenance key in the TL Manual Test and
Calibration menu. The following menu is
displayed.
4. Press the
Note: The DBI test can be repeated by
pressing the
is repeated the sent data pattern is
different (≠ 1234567890).
Sent Data
The sent data are displayed.
Received Data
The received data are displayed.
Comparison of Data
If the Sent Data and Received Data are identical,
the test was successful.
5. Switch off machine after successful test.
6. Remove the test plug from the RS 232 port.
A
1 / 2 0 1 0 4 - 71
key to start test.
key. If the DBI test
