Concentrate Suction Rods - B. Braun Dialog+ Service Manual

+
Dialog
SW 9.xx

7.9.1 Concentrate Suction Rods

BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
7 . S p a r e P a r t s L i s t

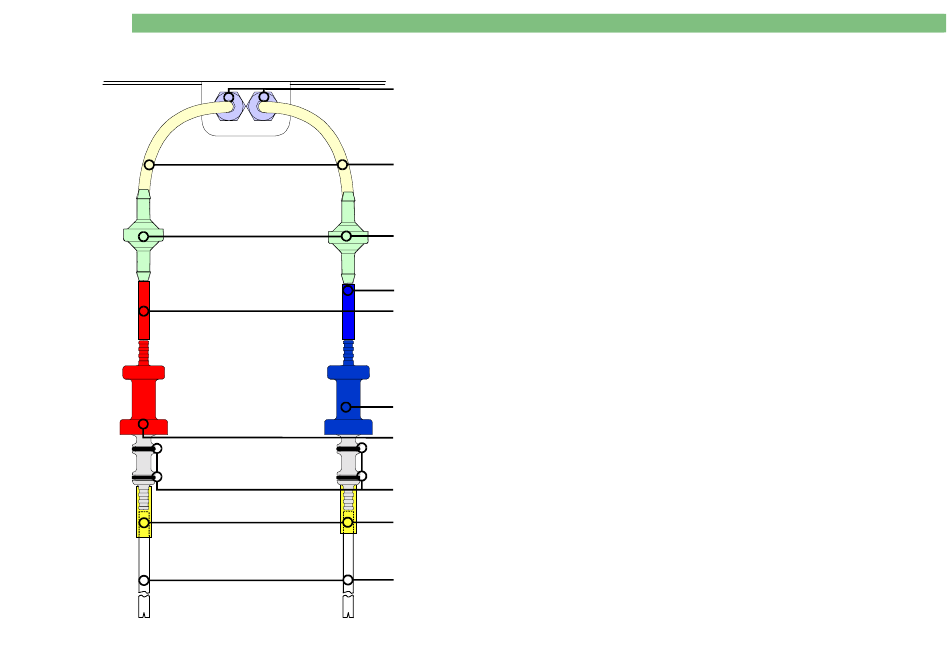

Pos. Art. No. Qty.
1
1 3451726A 1 Feed-through connector
2 34565213 10m Silicone tubing 2.9 x 3 (10 m)
3 34517782 5 Disposable filter
2
4 34565248 10m Silicone tubing 5 x 1.5 / blue (10 m)
5 34565230 10m Silicone tubing 5 x 1.5 / red (10 m)
6 3451475A
1 Male connector (blue) with o-rings
3
7 3451476A
1 Male connector (red) with o-rings
8 34570004
5 O-ring 9.3 x 2.4
9 34565280 3m Silicone tubing 3.2 x 1.6 (3 m)
4
10 3451728A 1 PE tube 4 x 1
5
6
7
8
9
10
1 / 2 0 1 0
Description
with silicone tubing
B. Braun Avitum AG
7 - 39
Comments
