3.6.10.4 Read Screenshots

Create Screenshots

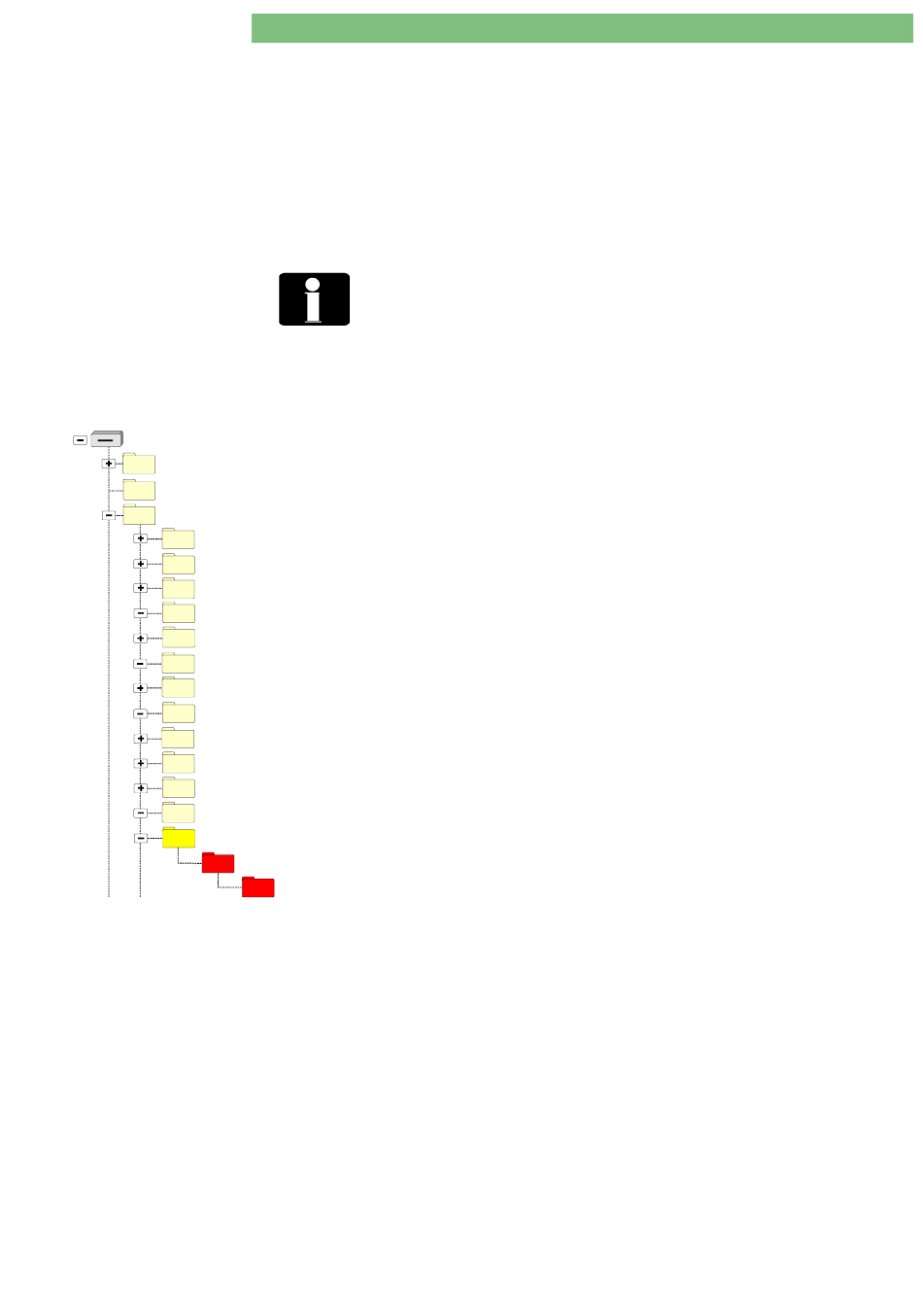

Removable Disk (X: - FSU USB Stick)
BlueCat
DISKTYPE
USER
04_Write_Languages
05_Write_Calibration_Data
06_Write_System_Configuration
09_Card_01_Read_Card_Image
09_Card_02_Write_Card_Image
09_Card_03_Read_Patient_Diskette
09_Card_04_Write_Patient_Diskette_to_Card
09_Card_05_Read_Patient_Card
09_Card_06_Write_Patient_Card
10_Read_System_Configuration
11_Read_Calibration_Data
12_Read_All_Trends
13_Read_Screenshots
23532
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 3_1-2010.doc/pdf <100329> yymmdd
3 . R e p a i r I n s t r u c t i o n s
The utility reads the screenshots from Dialog+ hard disk drive (CFC) and writes
them to the USB stick. Files from different Dialog+ machines are placed in
different subdirectories on the USB stick. The subdirectory names
/USER/13_Read_Screenshots/ <SERNUM>/<DATE>/ are created from the serial
numbers of the Dialog+ machines. Files from the same machine are placed in
different subdirectories where the subdirectory names are created from the
current date of reading <DATE>.
A keyboard is required to create screenshots. Connect a keyboard to the
motherboard. Use the ALT + F5 key on the keyboard to take a screenshot.
<SERNUM>
The subdirectory name is created from the serial number <SERNUM> of
the Dialog+. If the serial number is not set on the Dialog+ <SERNUM> is
equal to '-----'.
<DATE>
The subdirectory name is created from a creation date. Format: YYYY-
MM-DD.hh.mm.
2007-08-30.15.28.44
The screenshots are stored in vga*.zip files in the DEFAULT (and/or in other)
subdirectories on the Dialog+. The vga*.zip files copied to USB stick are deleted
from the Dialog+ hard disk drive (CFC) (similarly to the log files) but the
subdirectory structure on the Dialog+ hard disk drive (CFC) is left untouched.
See the results in the directories with the following path for
the Read Screenshots files:
Read Screenshots
USB:\USER\13_Read_Screenshots\{Serial
MM-DD.hh.mm.ss}\{DEFAULT and other directories}
Example:
USB:\USER\13_Read_Screenshots\23532\2007-08-
30.15.28.44\{DEFAULT and other directories}
2 3 5 3 2 :
Serial Number of the Dialog machine
Y Y Y Y :
Year 2007
M M :
08 month August
D D :
30 Thursday
h h :
15 hours
m m :
28 minutes
s s :
44 seconds
1 / 2 0 1 0
3 - 89
Number}\{YYYY-
