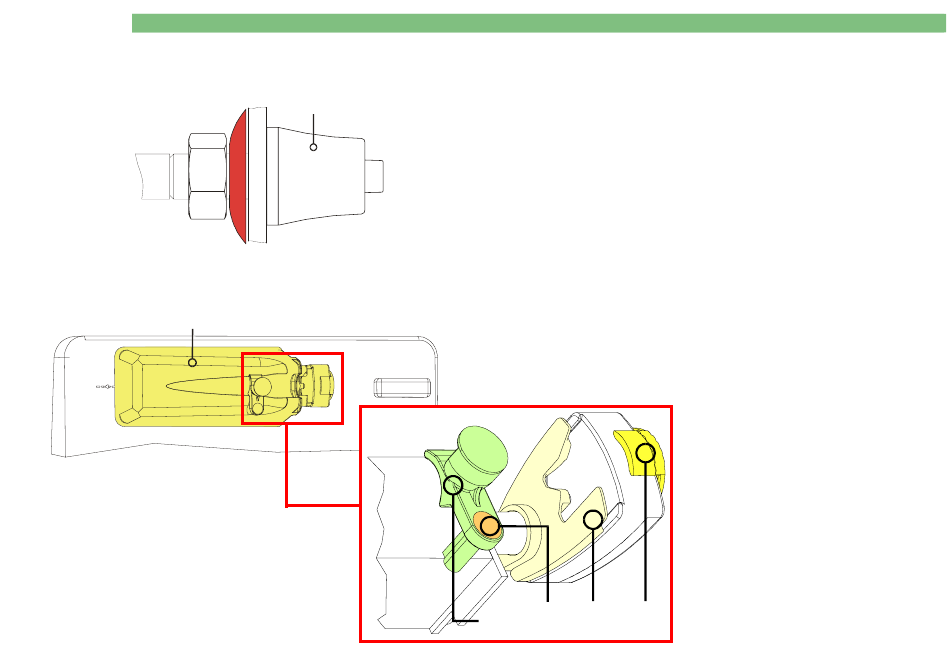

7.8.1 Manometer Connection

7.8.2 Heparin Pump

5
HP
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 7_1-2010.doc/pdf <100329> yymmdd
7 . S p a r e P a r t s L i s t
B
2
A
Pos. Art. No. Qty.
2 3457058A 5 Manometer connection (white), for PBS/SN
2 3451833A 5 Manometer connection (red), for PA/PBE
2 3451884A 5 Manometer connection (blue), for PV
5 3451432B 1 Heparin pump Compact
5 34560785 1 Housing with seal
5a 34514732 1 Syringe holder
5b 34570640 5 Dummy plug
5c 34570667 1 Clamp
5d 34570659 1 Unlocking lever set
5a 5b 5c 5d
1 / 2 0 1 0
Description
with plastic nut A and
safety disc B (pay attention to
correct assembly, see left figure)
