3.4.5 BIOS Settings for LX800 Motherboard

Phoenix

! Standard CMOS Features

! Advanced BIOS Features

! Advanced Chipset Features

! Integrated Peripherals

! Power Management Setup

! PnP/PCI Configuration

! PC Health Staus
Esc : Quit
F10 : Save & Exit Setup
Fig.: Phoenix – AwardBIOS CMOS Setup Utility (Example)
BIOS Version Number
Phoenix . AwardBIOS v6.00PG, ............
Copyright ( C ) ................
BBM-LX800 BIOS REV.1.04 (2008/08/08)..............
Main Processor..........
.........
.........
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 3_1-2010.doc/pdf <100329> yymmdd
3 . R e p a i r I n s t r u c t i o n s

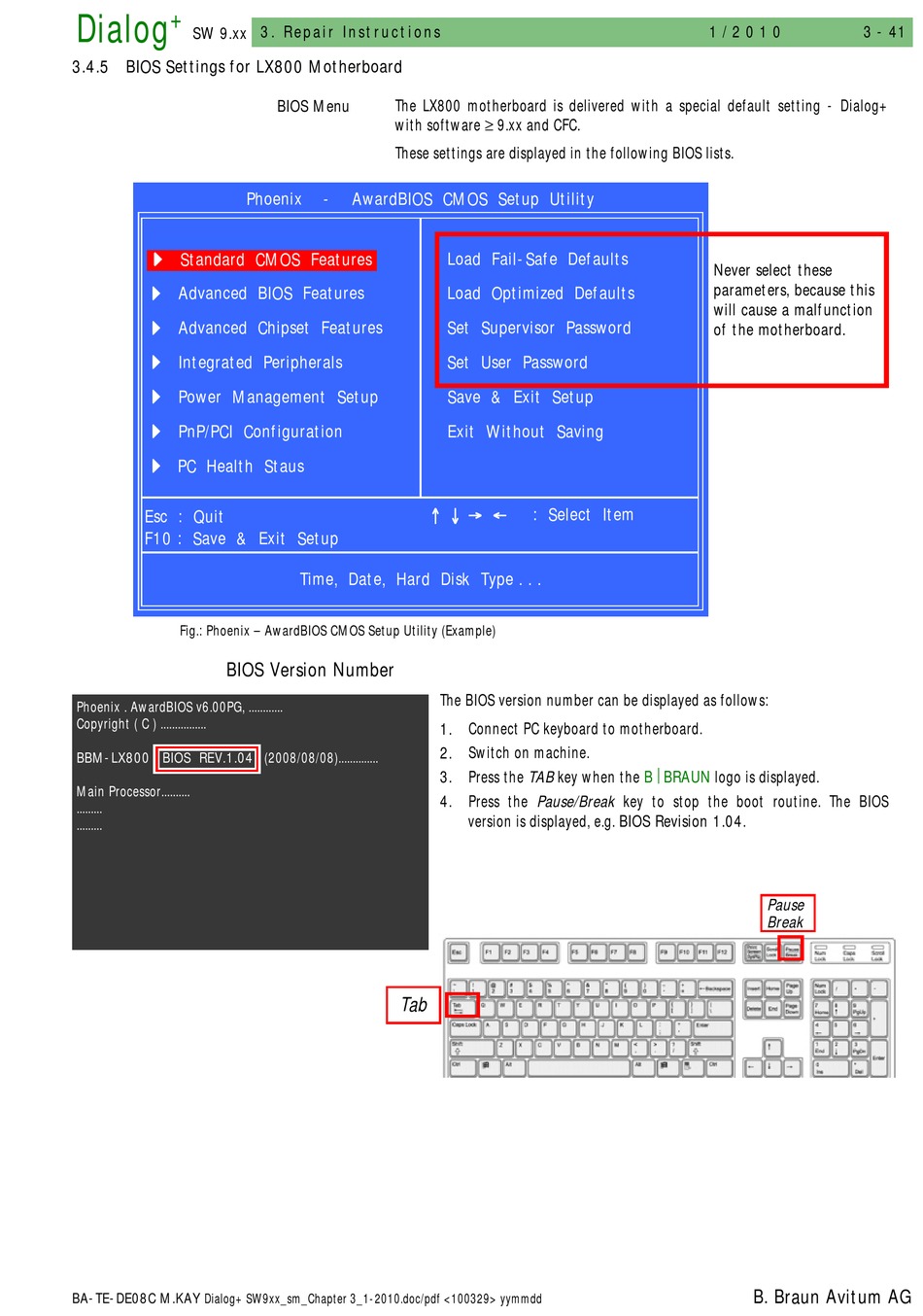

The LX800 motherboard is delivered with a special default setting - Dialog+
BIOS Menu
with software ≥ 9.xx and CFC.
These settings are displayed in the following BIOS lists.
- AwardBIOS CMOS Setup Utility
! ! ! ! " " " " # # # # $ $ $ $
Time, Date, Hard Disk Type . . .
Tab
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
: Select Item
The BIOS version number can be displayed as follows:
1. Connect PC keyboard to motherboard.
2. Switch on machine.
3. Press the TAB key when the
4. Press the Pause/Break key to stop the boot routine. The BIOS
version is displayed, e.g. BIOS Revision 1.04.
1 / 2 0 1 0
Never select these
parameters, because this
will cause a malfunction
of the motherboard.
B BRAUN
logo is displayed.
Pause
Break
