Test 1.28 Front Panel Board FPB (LLS)

BA-TE-DE08C M.KAY
Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd
4 . T S M S e r v i c e P r o g r a m 1 / 2 0 1 0

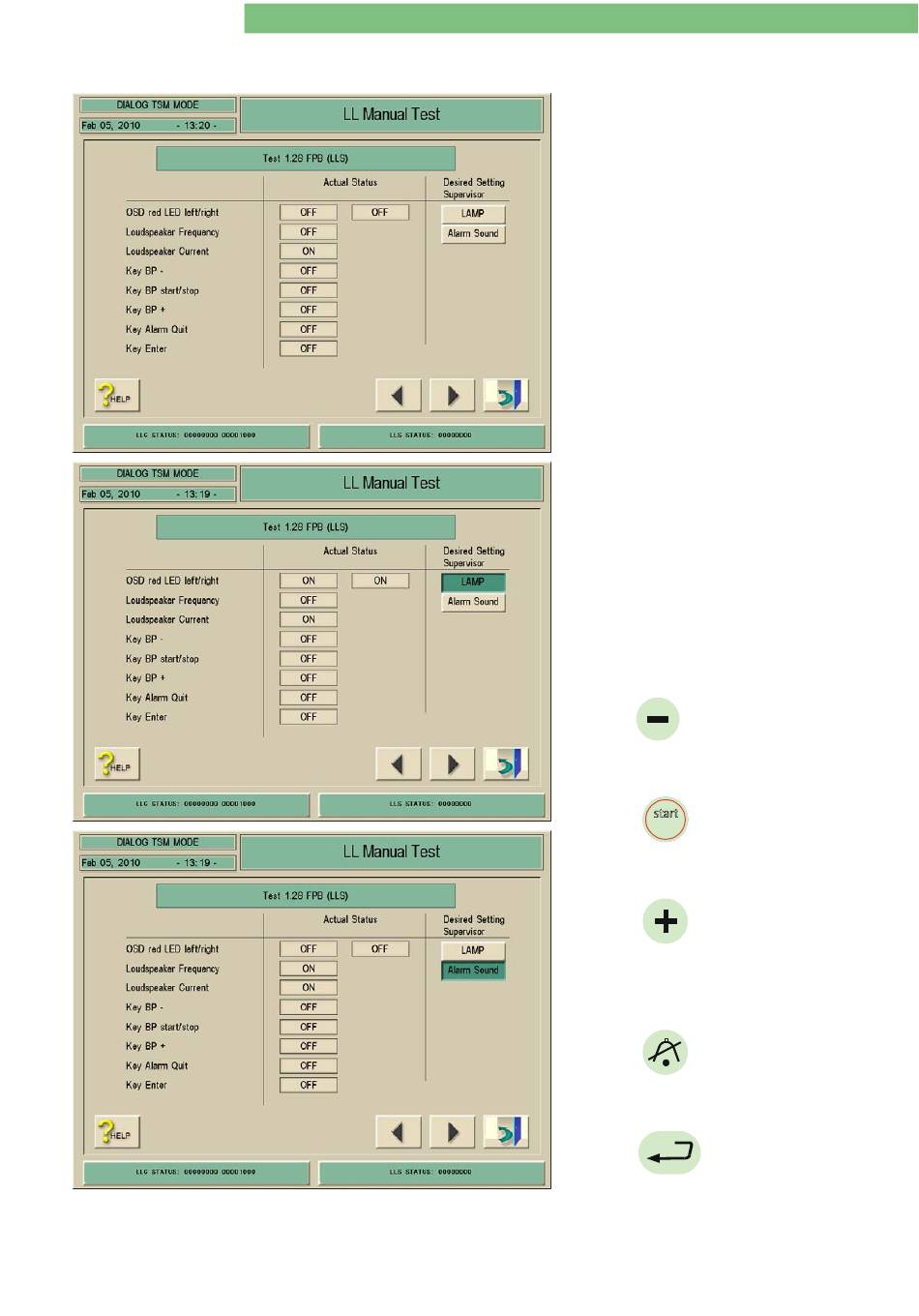

1. Activate the Front Panel Board FPB menu with
the Front Panel Board FPB key in the LL
Manual Test menu. The following menu is
displayed.
2. Check the functions with the appropriate keys.
You can check the LEDs and keys on the front
panel board FPB via the supervisor LLS.
Lamp
•
OSD Red LED Left/Right
If you press the Lamp key the red LEDs on the OSD
boards are switched on (OFF/ON) and checked
with a feedback from the red LEDs to the
supervisor LLS.
Alarm Sound
•
Loudspeaker Frequency
If you press the Alarm Sound key the loudspeaker
is switched on and checked with a feedback
(Loudspeaker Frequency ON) from the loudspeaker
to the supervisor LLS.
If the loudspeaker is not connected the
Loudspeaker Frequency stays OFF.
Test Blood Pump Keys
•
Blood Pump – Key
Press the key on the front panel board FPB
and wait for switching (OFF/ON).
•
Blood Pump START/STOP Key
stop stop
Press the key on the front panel board
FPB and wait for switching (OFF/ON).
•
Blood Pump + Key
Press the key on the front panel board
FPB and wait for switching (OFF/ON).
Test Alarm Quit/Enter Key
•
Alarm Key
Press the key on the front panel board
FPB and wait for switching (OFF/ON).
•
Enter Key
Press the key on the front panel board
FPB and wait for switching (OFF/ON).
4 - 106
