3.5 Installation Software 9.xx
Activation of the Treatment
3.5.1 Document Customer Specific
Default Values
USB Port:
- Service (FSU)
- Installation SW TLC

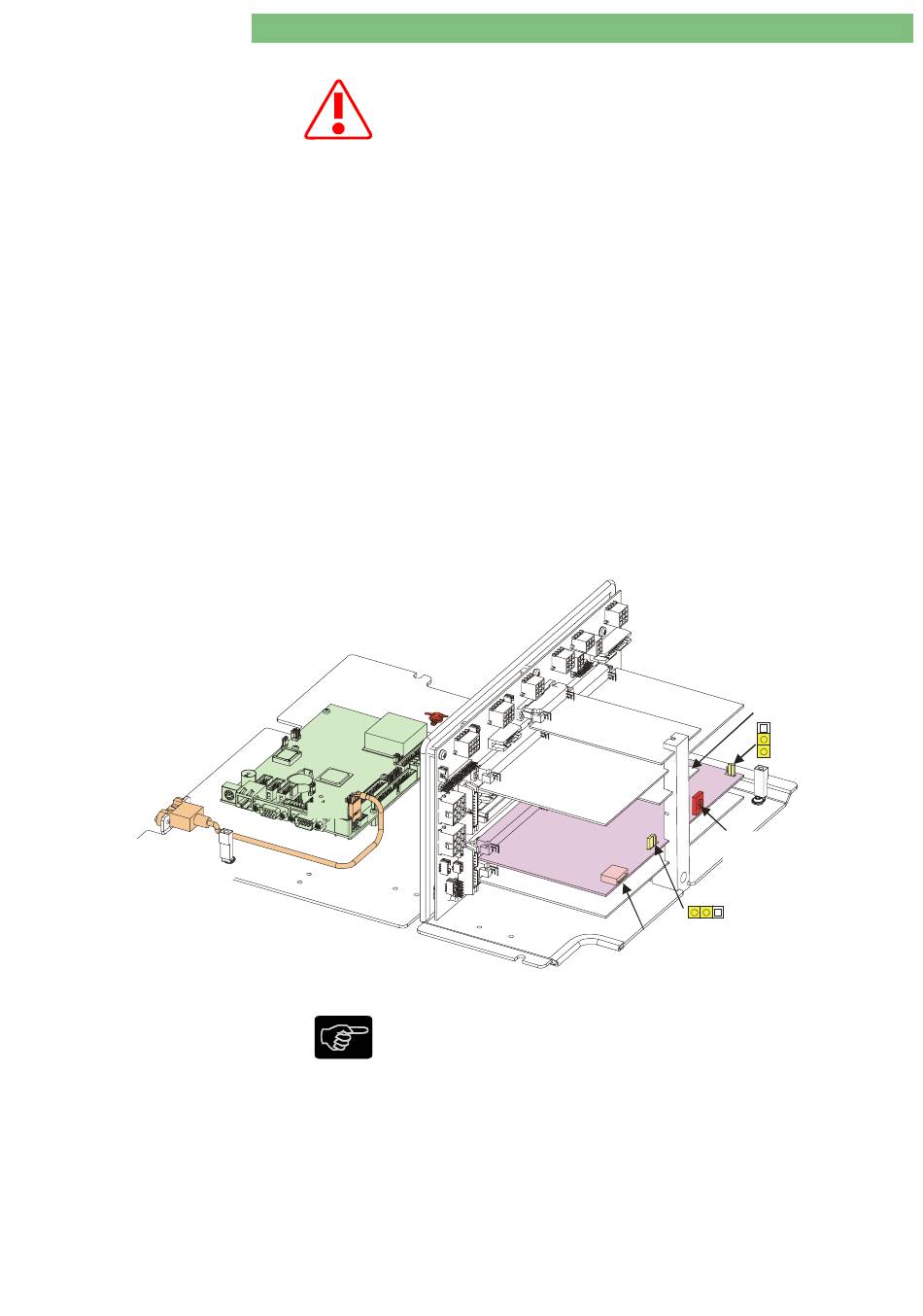

Fig. : Top Level Sub-Rack, Digital Board with Service Switch S1, USB Port P11 and Jumpers JP1/JP2
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 3_1-2010.doc/pdf <100329> yymmdd
3 . R e p a i r I n s t r u c t i o n s
USB Stick for Treatment Support Settings
The system configuration saved on a USB stick (FSU utility) must only be
downloaded to an other Dialog+ machine (with software ≥ 9.xx) after a
software update if:
•
the hardware matches and
•
the machine has the identical software version number.
The settings are only activated after the Dialog+ is switched off and on
Support Settings again. Check the settings after the Dialog+ was switched on again.
Service switch The software is installed in the software update mode: digital board,
service switch S1, position 3.
After software installation: turn service switch S1 to TSM service program
mode (position 2)
After completion of all procedures turn back service switch S1 to therapy
mode (position 0).
Default Table The default values for the parameters depend on the machine status (see
Dialog+ default table for SW 9.xx for a detailed overview).
Software Update The customer specific default values of the machine must be documented
in the default table prior to the installation of a new software. These
values must be entered again after installation.
Motherboard
USB1
Enter the customer specific default values of the machine in the default table:
1. Open rear door.
2. Switch to TSM service program mode (on digital board DB, service switch
S1 position 2).
3. Switch on Dialog+.
4. Document default values in default table.
Switch off Dialog+.
5.
HDF Online Board
Power Board Valves
Digital Board
P11
Basic Board
Analog Board
1 / 2 0 1 0
Power-Board
Motors
Supervisor
Write Protect
(SWP)
JP2
S1
JP1
Service Switch:
0: Therapy
2: TSM
3: SW Installation
Controller
Write Protect
(CWP)
USB Port:
Installation SW LLC/LLS
