Dialog
SW 9.xx
2.4

Power Board Valves PBV

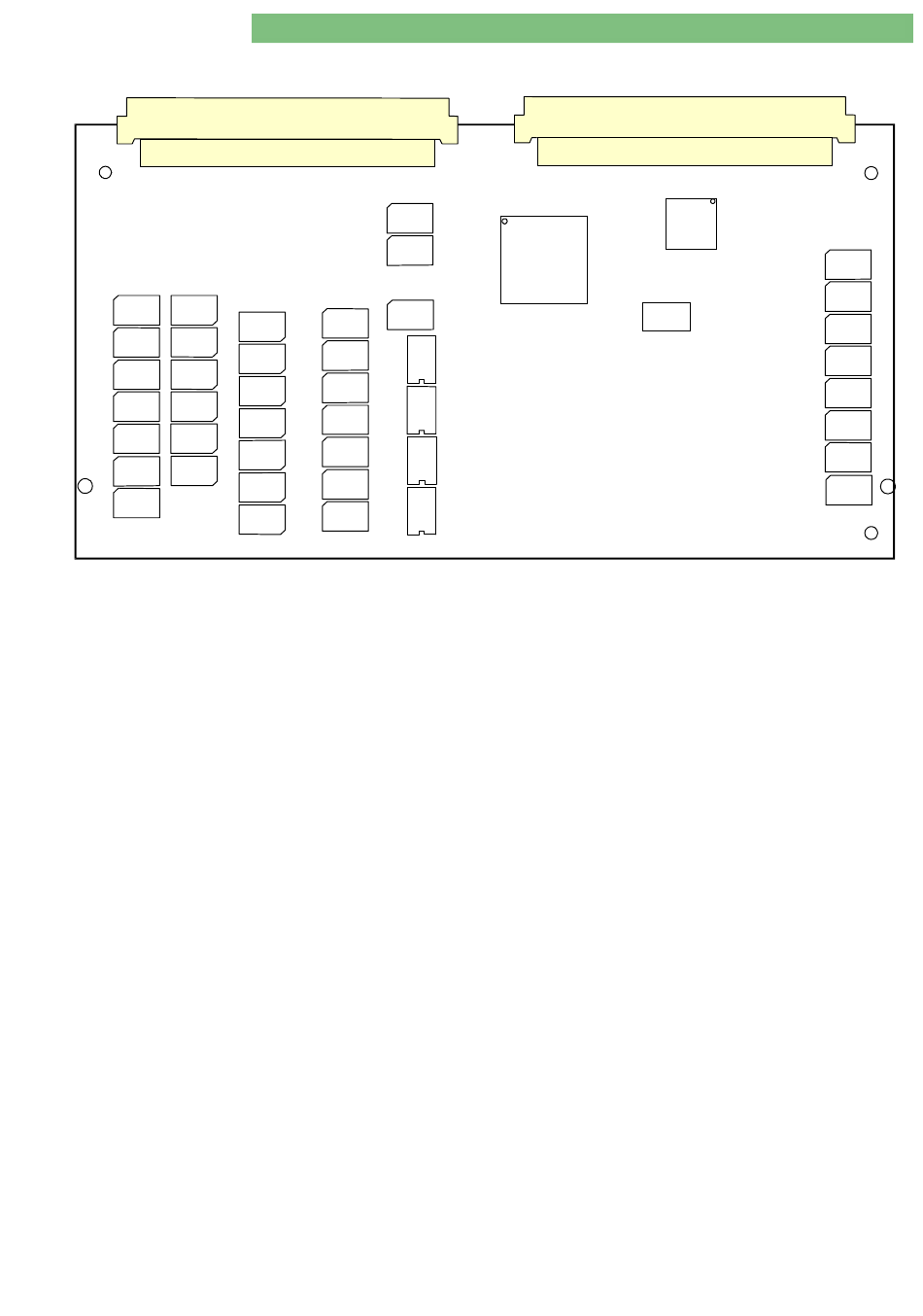

Fig. : Power Board Valves
2.4.1

Legend Power Board Valves

P1 Valves:
Inlet Upline Tank Valve VVBE
Degassing Inlet Valve VEB
Air Separator Valve Luftabscheider VLA
Dialyser Inlet Valve VDE
Dialyser Outlet Valve VDA
Bypass Valve VBP
Option BIC Cartridge Valves VBICP, VBKS, VBKO, VVB
Disinfection Valve VD
Circulation Valve VZ
Venous Tubing Clamp SAKV
Arterial Tubing Clamp SAKA
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 2_1-2010.doc/pdf <100329> yymmdd
2 . T e c h n i c a l System Description
P1
U9
U13
U18
U23
P2
U4
U6
P2 Valves:
Valve Balance Chamber VDEBK1/2, VDABK1/2, VEBK1/2, VABK1/2
Valves Level Module VBT, VPV, VPE, VPU, VPD, VPA
1 / 2 0 1 0
U3
B. Braun Avitum AG
2 - 8
