Field Service Utilities FSU

3.6.1

FSU Directories and Subdirectories

Removable Disk (X: - FSU USB Stick)
BlueCat
DISKTYPE
USER
04_Write_Languages
05_Write_Calibration_Data
06_Write_System_Configuration
09_Card_01_Read_Card_Image
09_Card_02_Write_Card_Image
09_Card_03_Read_Patient_Diskette
09_Card_04_Write_Patient_Diskette_to_Card
09_Card_05_Read_Patient_Card
09_Card_06_Write_Patient_Card
10_Read_System_Configuration
11_Read_Calibration_Data
12_Read_All_Trends
13_Read_Screenshots
14_Get_Error
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 3_1-2010.doc/pdf <100329> yymmdd
3 . R e p a i r I n s t r u c t i o n s
General The FSU utility can be used in any mode. Exception: if the
Dialog+ was switched off during therapy or end of
therapy and was switched on again within 15 minutes.
Most of the utilities have the following features:
•
messages are displayed during execution
•
an End of <utility name> message is displayed after
completion of a utility
BlueCat and DISKTYPE Directories
The BlueCat and DISKTYPE directories are used by the
system operation of the FSU program only. Do not
use, modify or delete these directories.
USER Directory
The USER directory is required for service technicians
only. All user specific data/files from and to the
Dialog+ machines are written and read to/from this
directory (subdirectories).

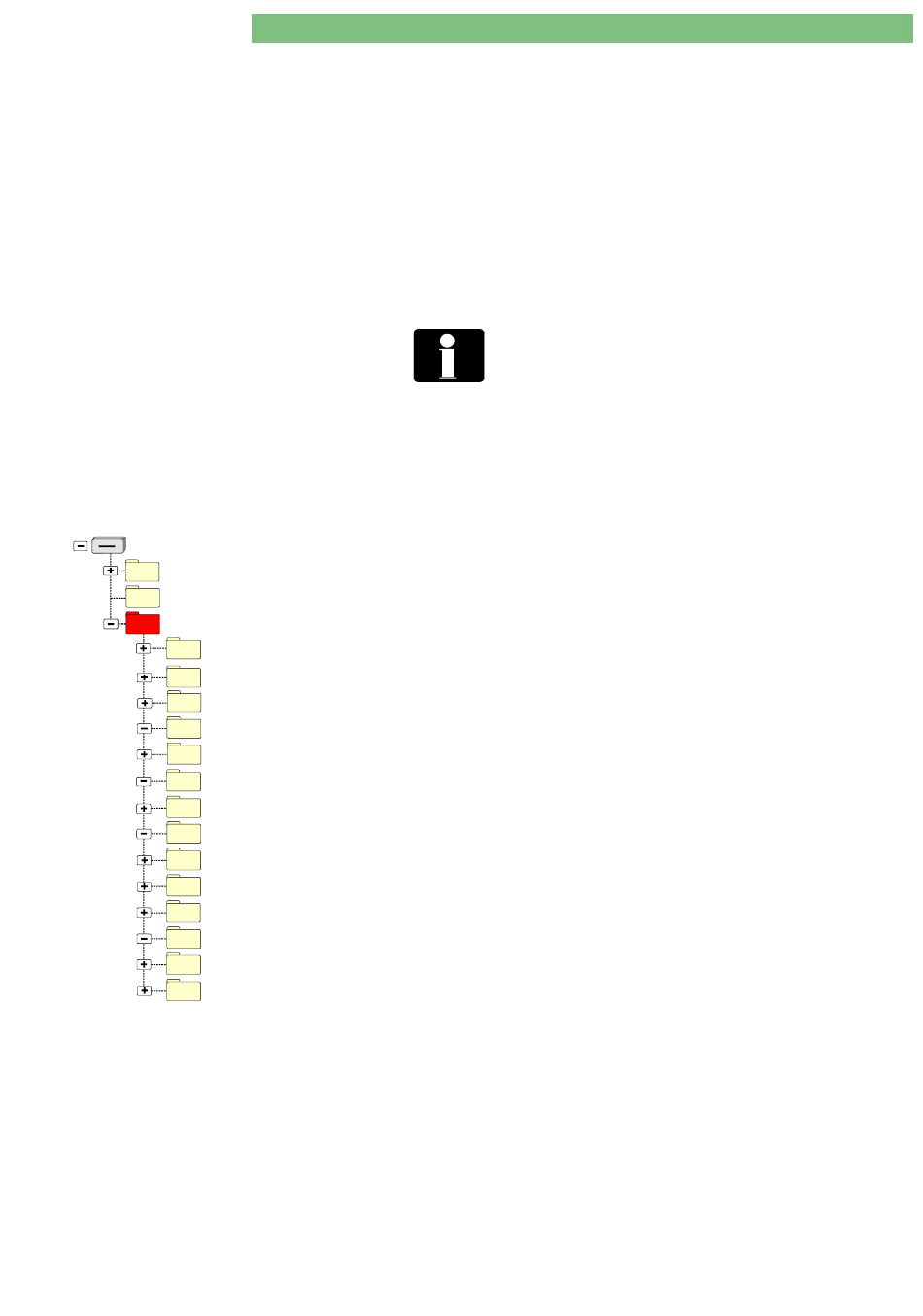

The field service utilities has the following directory
structure (see left figure).
1 / 2 0 1 0 3 - 56
