Dialog
SW 9.xx

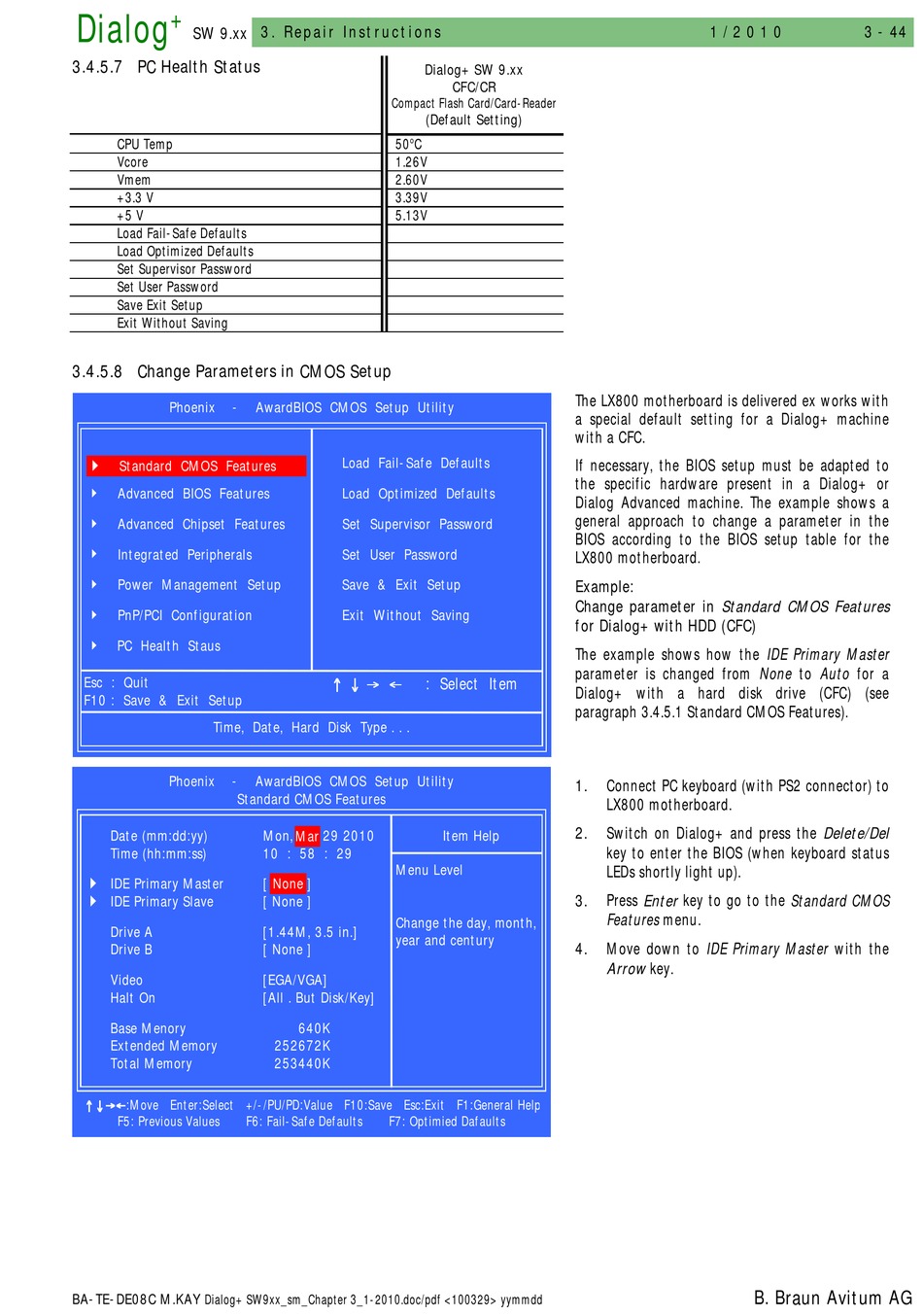

3.4.5.7 PC Health Status

CPU Temp
Vcore
Vmem
+3.3 V
+5 V
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save Exit Setup
Exit Without Saving

3.4.5.8 Change Parameters in CMOS Setup

Phoenix -
!
Standard CMOS Features
!
Advanced BIOS Features
!
Advanced Chipset Features
!
Integrated Peripherals
!
Power Management Setup
!
PnP/PCI Configuration
!
PC Health Staus
Esc : Quit
F10 : Save & Exit Setup
Time, Date, Hard Disk Type . . .
Phoenix -
Standard CMOS Features
Date (mm:dd:yy)
Time (hh:mm:ss)
! IDE Primary Master
! IDE Primary Slave
Drive A
Drive B
Video
Halt On
Base Menory
Extended Memory
Total Memory
! ! ! ! " " " " # # # # $ $ $ $ :Move Enter:Select +/-/PU/PD:Value F10:Save Esc:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults
BA-TE-DE08C M.KAY
Dialog+ SW9xx_sm_Chapter 3_1-2010.doc/pdf <100329> yymmdd
3 . R e p a i r I n s t r u c t i o n s
Dialog+ SW 9.xx
Compact Flash Card/Card-Reader
(Default Setting)
o
50 C
1.26V
2.60V
3.39V
5.13V
AwardBIOS CMOS Setup Utility
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
! ! ! ! " " " " # # # # $ $ $ $
: Select Item
AwardBIOS CMOS Setup Utility
Mon, Sep 29 2010 Mar
10 : 58 : 29
Menu Level
[ None ] None
[ None ]
Change the day, month,
[1.44M, 3.5 in.]
year and century
[ None ]
[EGA/VGA]
[All . But Disk/Key]
640K
252672K
253440K
F7: Optimied Dafaults
CFC/CR
The LX800 motherboard is delivered ex works with
a special default setting for a Dialog+ machine
with a CFC.
If necessary, the BIOS setup must be adapted to
the specific hardware present in a Dialog+ or
Dialog Advanced machine. The example shows a
general approach to change a parameter in the
BIOS according to the BIOS setup table for the
LX800 motherboard.
Example:
Change parameter in Standard CMOS Features
for Dialog+ with HDD (CFC)
The example shows how the IDE Primary Master
parameter is changed from None to Auto for a
Dialog+ with a hard disk drive (CFC) (see
paragraph 3.4.5.1 Standard CMOS Features).
1. Connect PC keyboard (with PS2 connector) to
LX800 motherboard.
2. Switch on Dialog+ and press the Delete/Del
Item Help
key to enter the BIOS (when keyboard status
LEDs shortly light up).
3. Press Enter key to go to the Standard CMOS
Features menu.
4. Move down to IDE Primary Master with the
Arrow key.
1 / 2 0 1 0 3 - 44
