Test 1.8 Coupling Detectors - B. Braun Dialog+ Service Manual

+
Dialog
SW 9.xx
4.8.2.8

Test 1.8 Coupling Detectors

BA-TE-DE08C M.KAY
Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd
4 . T S M S e r v i c e P r o g r a m
You can check the actual status of the reed sensors.
Detectors
Bicarbonate rinsing connection sensor.
BICSS
Concentrate rinsing connector sensor.
KSS
Rinsing bridge connector sensor (dialyser coupling).
SBS1
SBS2 Rinsing bridge connector sensor (dialyser coupling).
1 / 2 0 1 0
1. Activate the Coupling Detectors menu with
the Coupling key in the LL Manual Test menu.

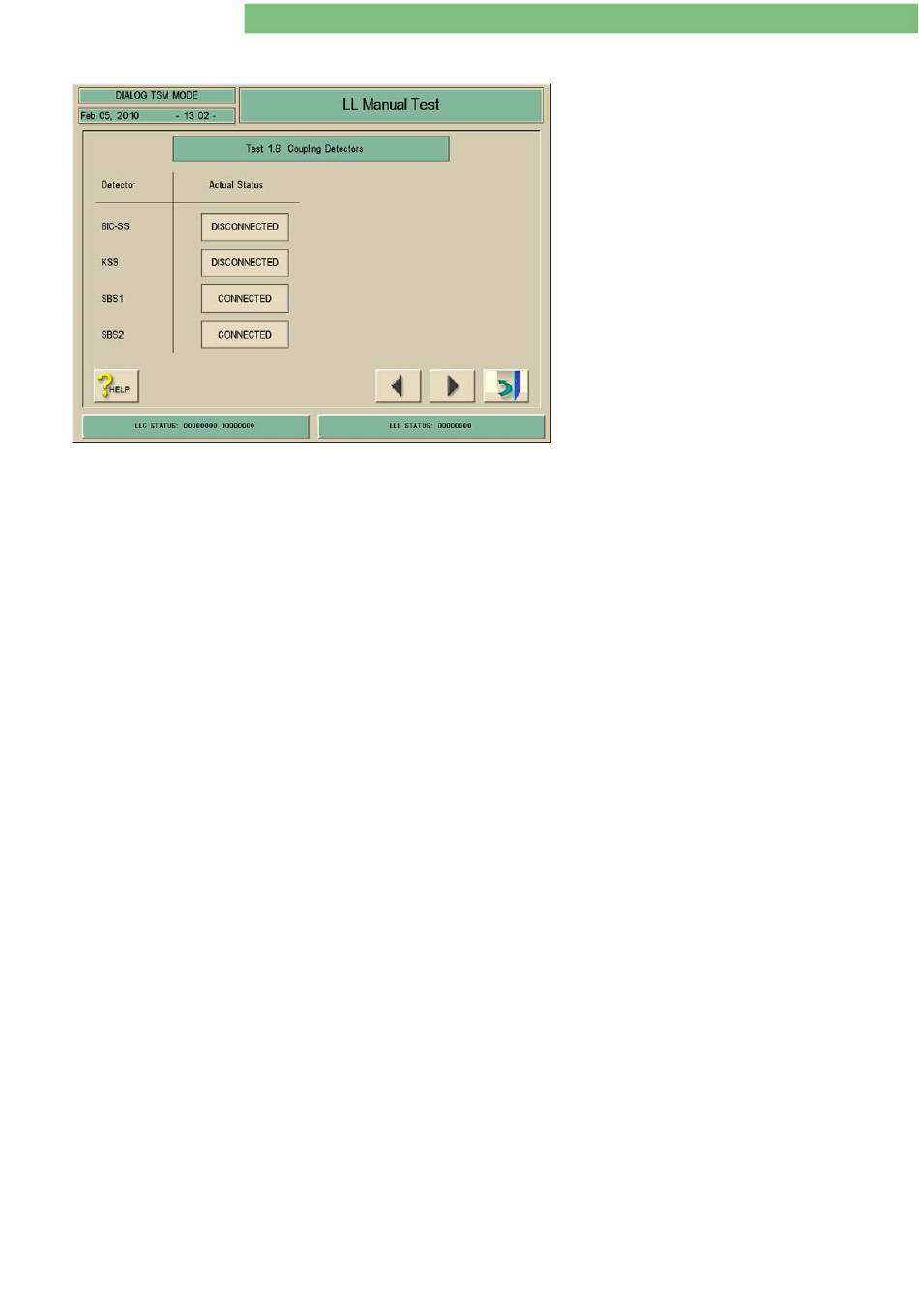

The following menu is displayed.
2. Check the functions of the reed contacts with
the appropriate couplings.
