4.8.2.14

Test 1.14 Bypass and Disinfection Valves

BA-TE-DE08C M.KAY
Dialog+ SW9xx_SM_Chapter 4-2-1_1_2010.doc/pdf <110301> yymmdd
4 . T S M S e r v i c e P r o g r a m
You can activate a single valve or combined setting via the controller. The
actual condition is displayed by the supervisor. The following valves can be
activated:
Valves VBP
VDE
VDA
VD
VZ
VLA

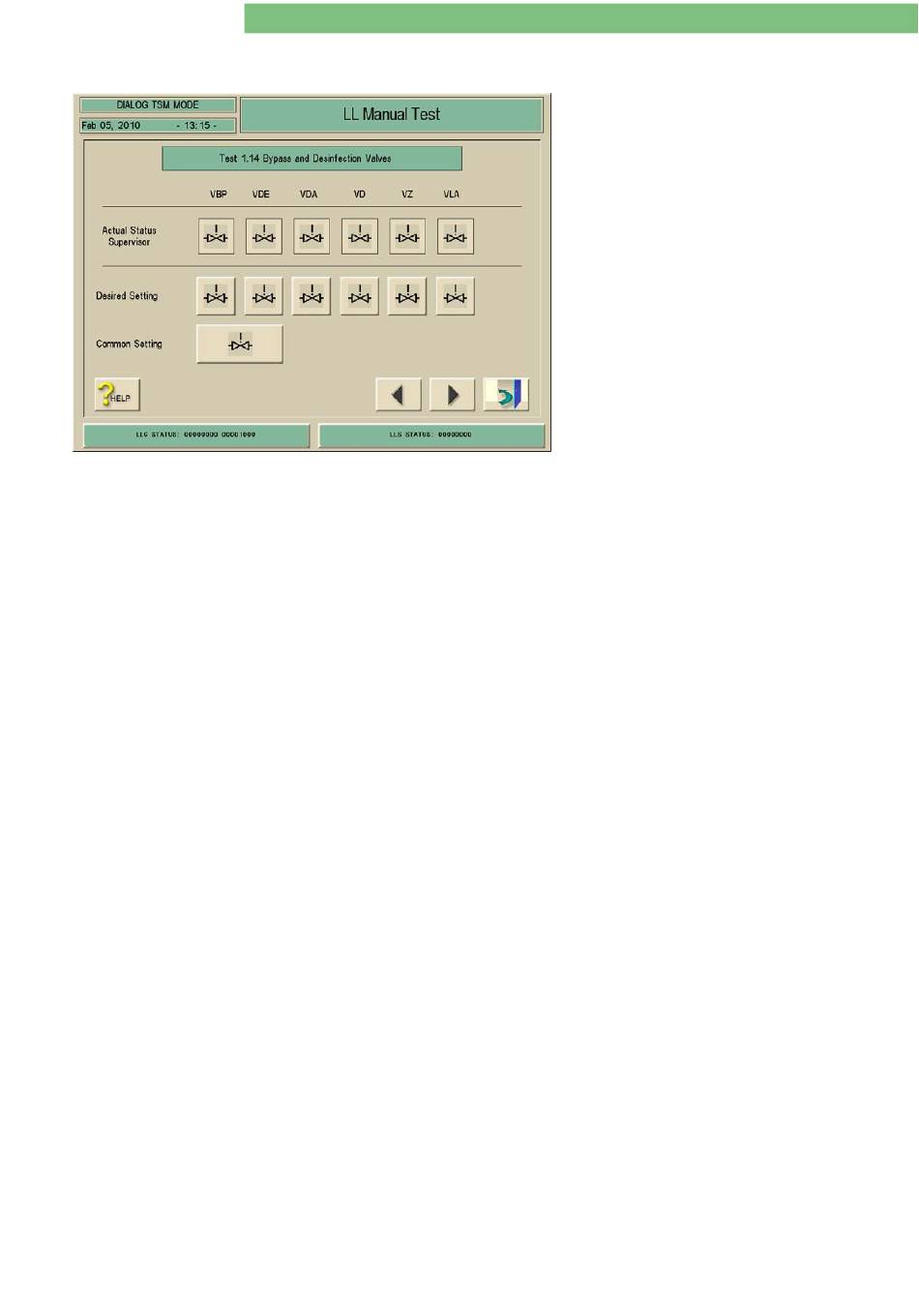

1. Activate the Bypass and Disinfection Valves
menu with the Bypass and Disinfection Valves
key in the LL Manual Test menu. The following
menu is displayed.
2. Check the functions with the appropriate keys.
Bypass valve
Dialyser inlet valve
Dialyser outlet valve
Disinfection valve
Circulation valve
Air separator valve
1 / 2 0 1 0 4 - 88
