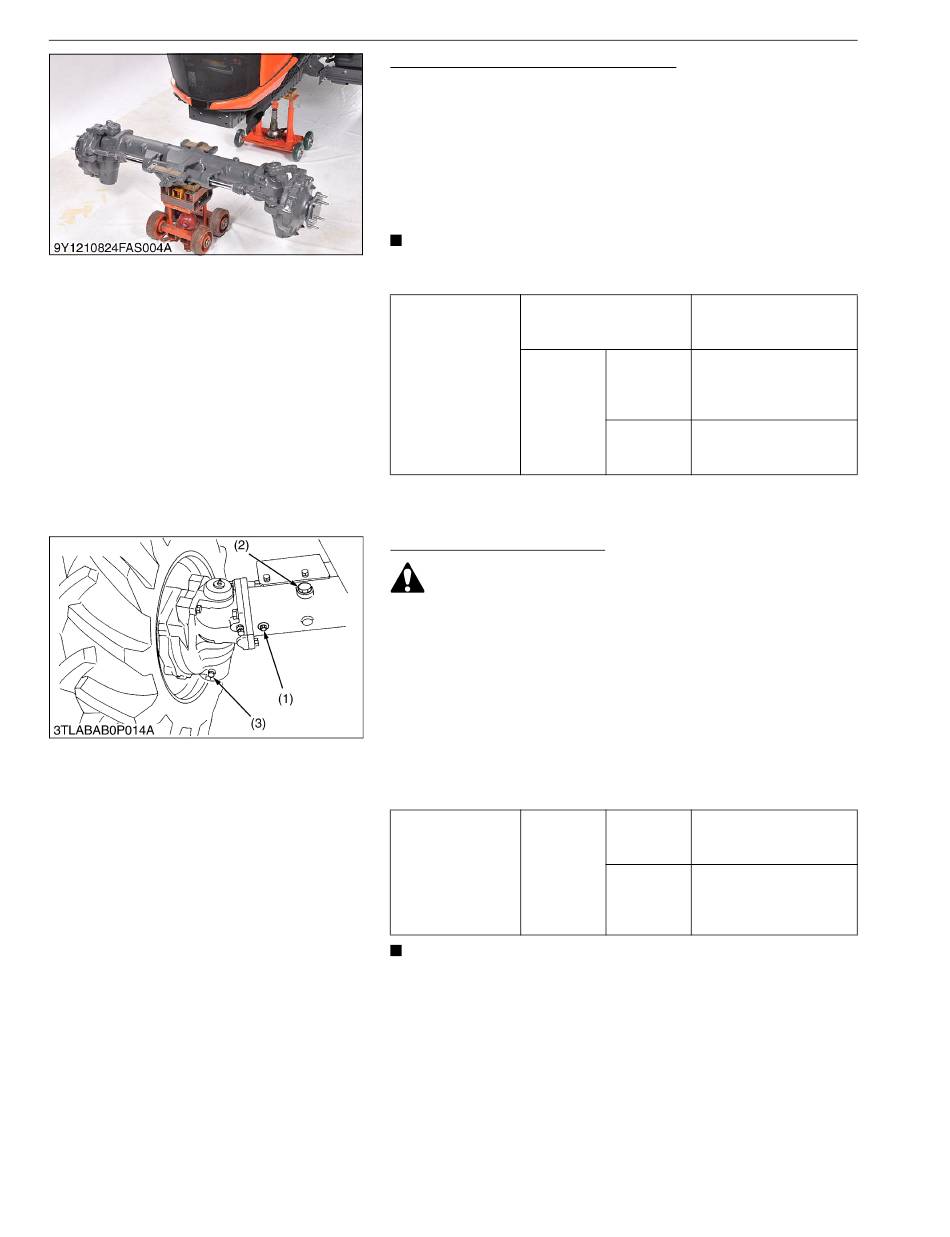

[2] DISASSEMBLING FRONT AXLE

Front Wheel and Front Axle Assembly
1. Check the front axle and engine are securely mounted on the
disassembly stand.
2. Loosen the front wheel mounting nuts.
3. Lift the front axle and remove the front wheels.
4. Remove the bracket (front) mounting screws and nuts.
5. Remove the bracket (rear) mounting screws and nuts.
6. Separate the front axle from front axle bracket.
(When reassembling)
NOTE
• Be sure to adjust the front axle rocking force. (See page
6-S6.)
Front wheel mounting nut
Tightening torque
Bracket
mounting
screw and
nut
Draining Front Axle Case Oil
CAUTION
• Be sure to stop the engine before changing the front axle
case oil.
• Allow engine to cool down sufficiently, oil can be hot and
can burn.
1. Remove the right and left drain plugs (3) and filling plug (2) at
the front axle case and drain the oil completely.
2. After draining, reinstall the drain plugs (3).
(When refilling)
• Remove the right and left check plugs (1).
• Fill new oil from filling port with specified amount of oil.
• Reinstall the filling plug (2) and check plug (1).
Front axle
Capacity
case oil
IMPORTANT
• Use KUBOTA SUPER UDT fluid or SAE80, 90 gear oil.
Refer to "4. LUBRICANTS, FUEL AND COOLANT" on page
G-9.
(1) Check Plug
(2) Filling Plug
6-S8
FRONT AXLE
137 N·m
14.0 kgf·m
101 lbf·ft
L3560
78 to 90 N·m
L4060
7.9 to 9.2 kgf·m
L4760
58 to 66 lbf·ft
L5060
103 to 117 N·m
L5460
10.5 to 12.0 kgf·m
L6060
76.0 to 86.7 lbf·ft
9Y1210824FAS0011US0
6.5 L
L3560
6.9 U.S.qts
L4060
5.7 Imp.qts
L4760
8.5 L
L5060
9.0 U.S.qts
L5460
7.5 Imp.qts
L6060
(3) Drain Plug
9Y1210824FAS0012US0
