C 3
HAPTER

ON-LINE (OL) MODE AND SENSITIVITY

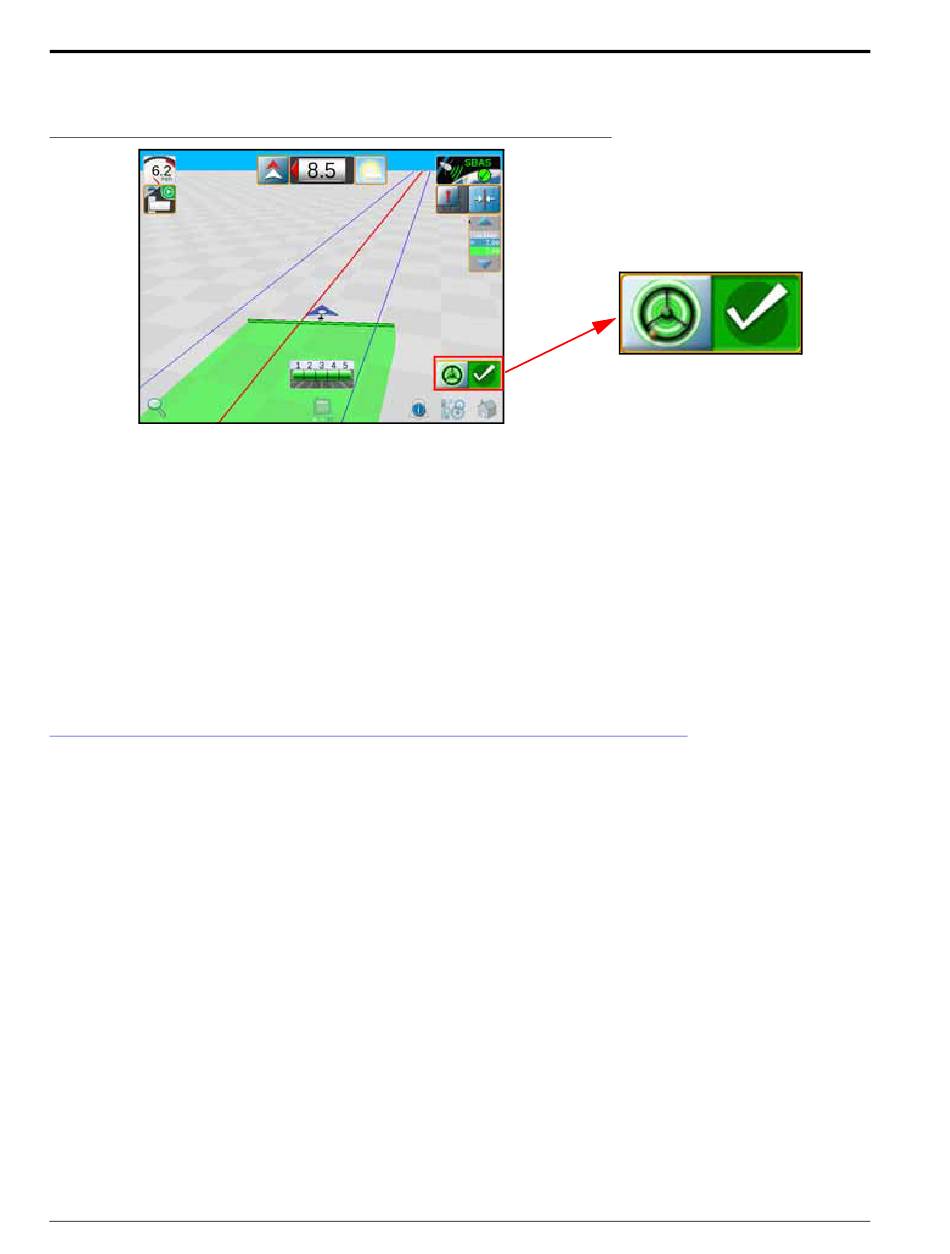

FIGURE 32. OL Mode Indicator
NOTE: The screen in the figure above illustrates an example of a situation in which SmarTrax is operating in
OL mode. This mode will remain active as long as the machine steers within 24 inches [60 cm] of the
displayed guidance line.
The OL Sensitivity value affects the response of the machine while steering within 24 inches [60 cm] of the
displayed guidance line. If the machine tends to slowly weave across the guidance line and does not remain within
24 inches [60 cm] of the desired path, increase the OL Sensitivity value one increment at a time, allowing SmarTrax
at least 30 seconds between adjustment to adjust to the change in the value.
Setting the OL Sensitivity value too high may cause the machine to over-correct or become jittery while on the
line. Lowering the value in these situations will allow the vehicle to remain on the desired path.

ADVANCED SETUP TOOLS AND SYSTEM DIAGNOSTICS

Advanced setup tools allow fine-tuning of the system to adjust for operating conditions and improve steering
accuracy.
NOTE: Some features or settings are not able to be adjusted unless SmarTrax is in an active job.
NOTE: Some features or settings are configured during the SmarTrax calibration wizard and cannot be
modified or changed without resetting the SmarTrax system. Refer to Reset Calibration section on
page 37 for additional assistance with resetting the SmarTrax system to default settings.

SYSTEM INFORMATION TAB

NOTE: To change the Sensor Type, Machine Type, Control Device, or Wheel Base settings, the SmarTrax
system must be reset and recalibrated.
30 ROS SmarTrax™ Calibration & Operation Manual
