Appendix D: Technical Specification
D.1.5
Ethernet Interface

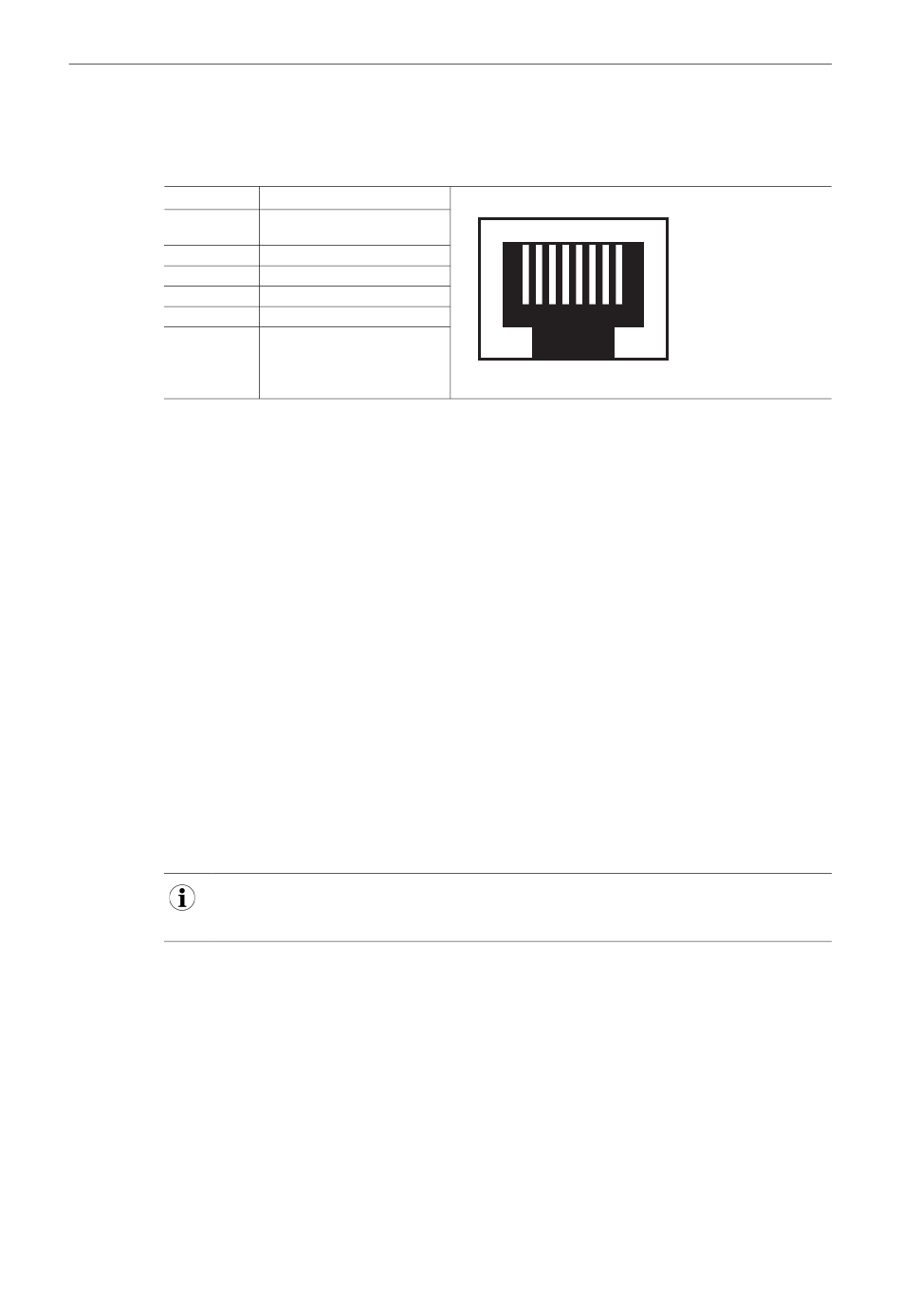

Ethernet Interface (RJ45 connectors)
The Ethernet interface 10/100Mbit, full or half duplex operation.
Pin no
4,5,7,8
6
3
2
1
Housing
D.2
Functional Earth (FE) Requirements
In order to ensure proper EMC behavior, the module must be properly connected to functional
earth via the FE pad/FE mechanism described in the Anybus CompactCom 40 Hardware Design
Guide. Proper EMC behavior is not guaranteed unless these FE requirements are fulfilled.
D.3
Power Supply
D.3.1
Supply Voltage
The Anybus CompactCom 40 EtherNet/IP requires a regulated 3.3 V power source as specified in
the general Anybus CompactCom 40 Hardware Design Guide.
D.3.2
Power Consumption
TheAnybus CompactCom 40 EtherNet/IP is designed to fulfil the requirements of a Class B
module. The current hardware design consumes up to 360 mA
In line with HMS policy of continuous product development, we reserve the right to change the
exact power requirements of this product without prior notification. However, in any case, the
Anybus CompactCom 40 EtherNet/IP will remain as a Class B module.
It is strongly advised to design the power supply in the host application based on the power consumption
classifications described in the general Anybus CompactCom Hardware Design Guide, and not on the
exact power requirements of a single product.
D.4
Environmental Specification
Consult the Anybus CompactCom 40 Hardware Design Guide for further information.
D.5
EMC Compliance
Consult the Anybus CompactCom 40 Hardware Design Guide for further information.
Anybus CompactCom 40 EtherNet/IP IIoT Network Guide
Description
Connected to chassis ground
over serial RC circuit
RD-
RD+
TD-
TD+
Cable Shield
1
8
217 (244)
SCM-1202–069 1.9 en-US
