Appendix F: Conformance Test Guide
EtherNet/IP Host Object (F8h) - Attribute #7 - Producing Instance No.
The Producing Instance(s) will impact the assembly object, and will need to be listed. For most
applications the producing instance(s) will be Static Inputs.

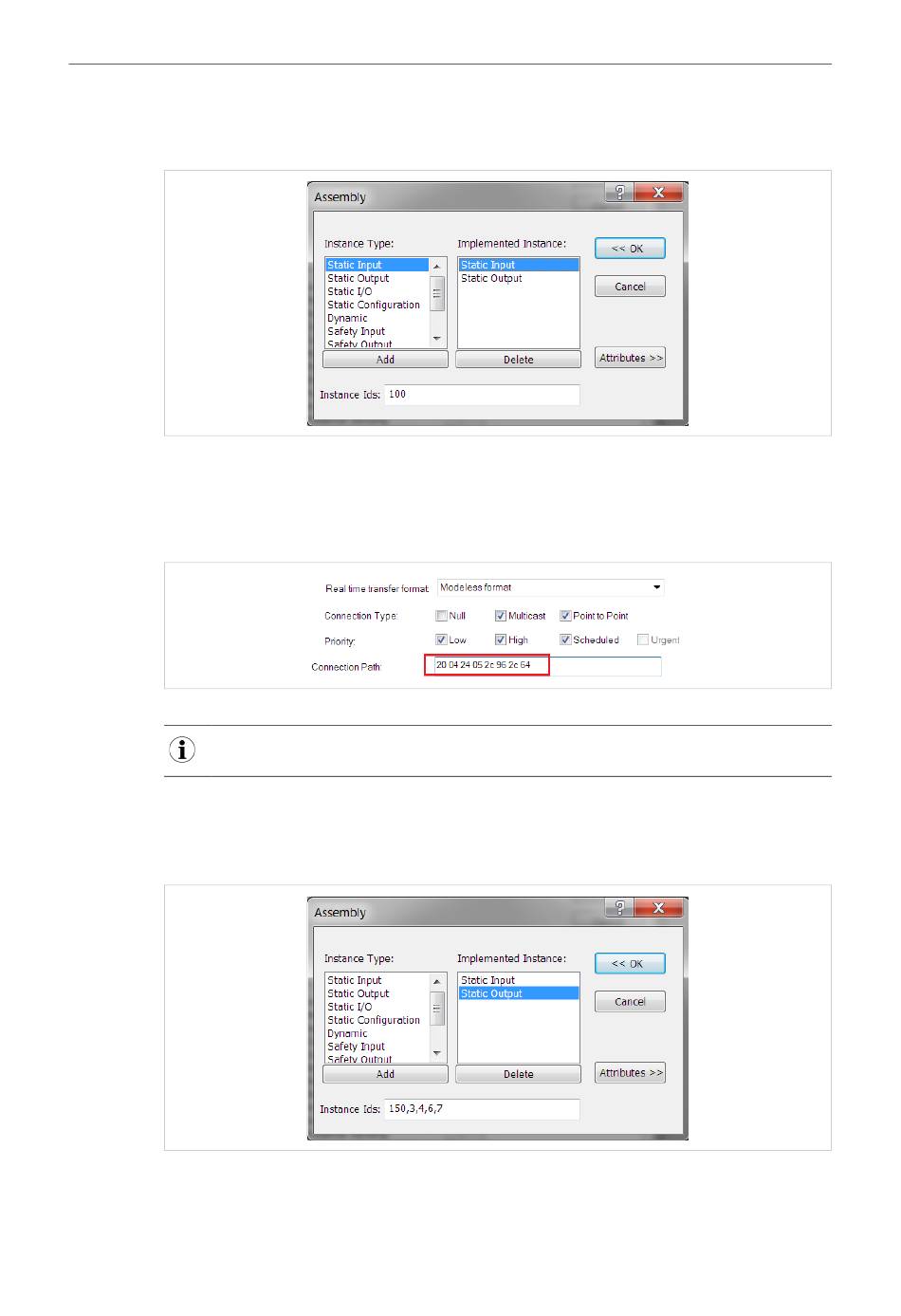

Fig. 20
Producing Instances will also impact the Connections of the Connection Manager object. Each of
the connections must have the connection path modified to point to the correct instance(s). The
example below lists 0x64 as the producing instance. See Volume 1: Common Industrial Protocol
Specification appendix C for the encoding of the Connection Path.
Fig. 21
This attribute is an array if the host application implements the Assembly Mapping Host object, see
details of this object below.
EtherNet/IP Host Object (F8h) - Attribute #8 - Consuming Instance No.
The response field will impact the assembly object. For most applications the producing instance
(s) will be Static Outputs.
Fig. 22
Producing Instances will also impact the Connections of the Connection Manager object. Each of
the connections must have the connection path modified to point to the correct instance(s). The
