Assembly Mapping Object (EBh)
The assembly mapping host object can be used to create up to 6 producing and 6 consuming CIP
assembly instances. These additional assemblies will also create connection points in the
connection manager which will be equivalent to the standard exclusive owner connection in the
Anybus CompactCom40 EtherNet/IP.
For each added connection point the Assembly object and Connection manager object in the STC
file must be updated to describe these new assembly instances.

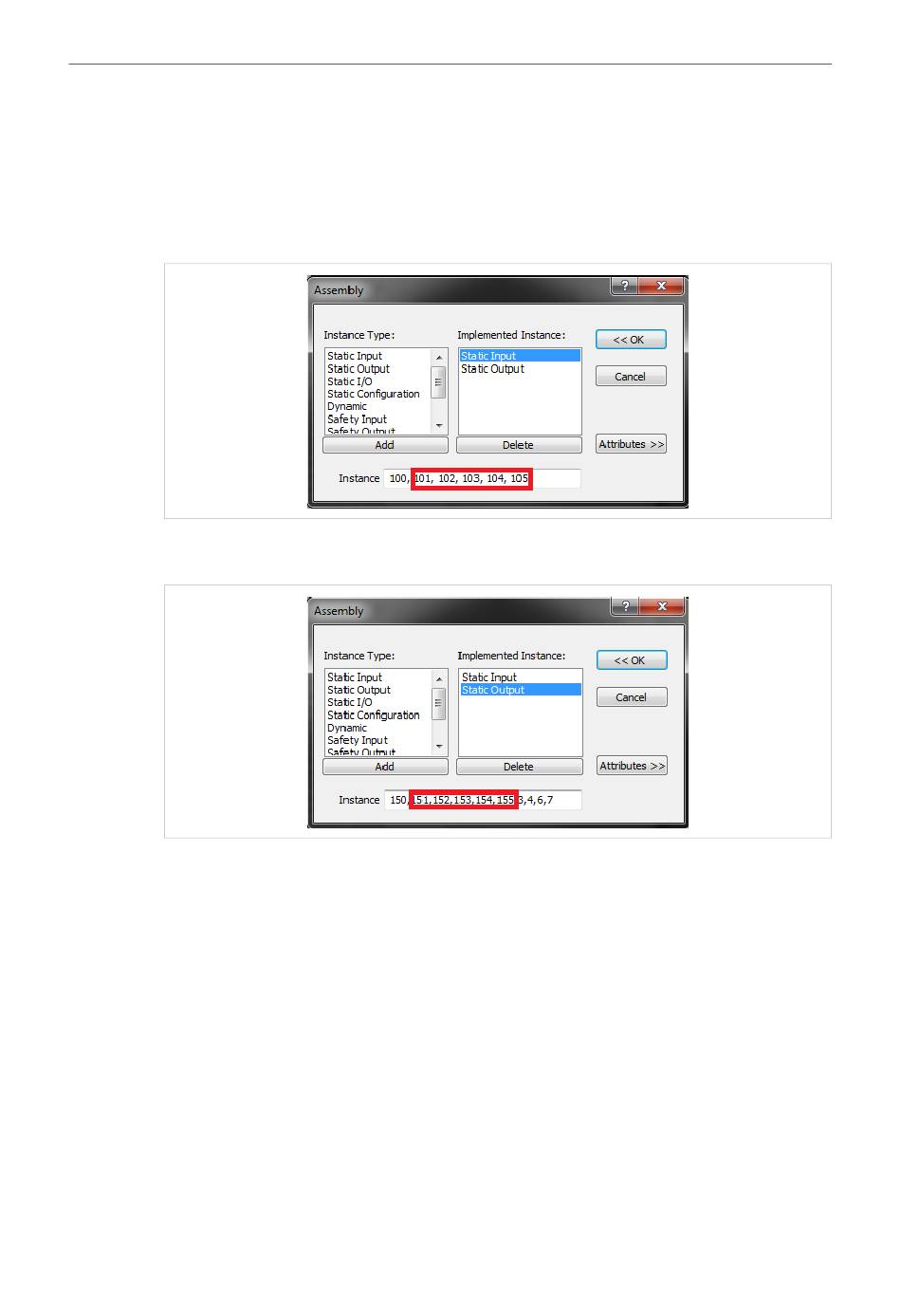

Fig. 33
In this example five additional producing assemblies has been added.
Fig. 34
In this example five additional consuming assemblies has been added.
It is not required to list all possible combinations of connections between the producing and
consuming connection points in the Connection Manager section of the STC file. It is up to the
vendor do decide which connection combinations that should be available for the customer in
the EDS file, it is however required to list all connections that exist in the EDS file in the
Connection Manager section of the EDS file.
