Session Example - Anybus CompactCom 40 Network Manual

FTP Server
• The home directory for a user must also exist in the file system, if the user shall be able to
log in. It is not enough just to add the user information to the ftp.cfg file.
• If Admin Mode has been enabled in the Ethernet Object, all username/password
combinations will be accepted and the user will have unrestricted access to the file system (i.
e. the home directory will be the system root). The vfs folder is read-only.
• It is strongly recommended to have at least one user with root access (\) permission. If not,
Admin Mode must be enabled each time a system file needs to be altered (including \ftp.
cfg).
5.3

Session Example

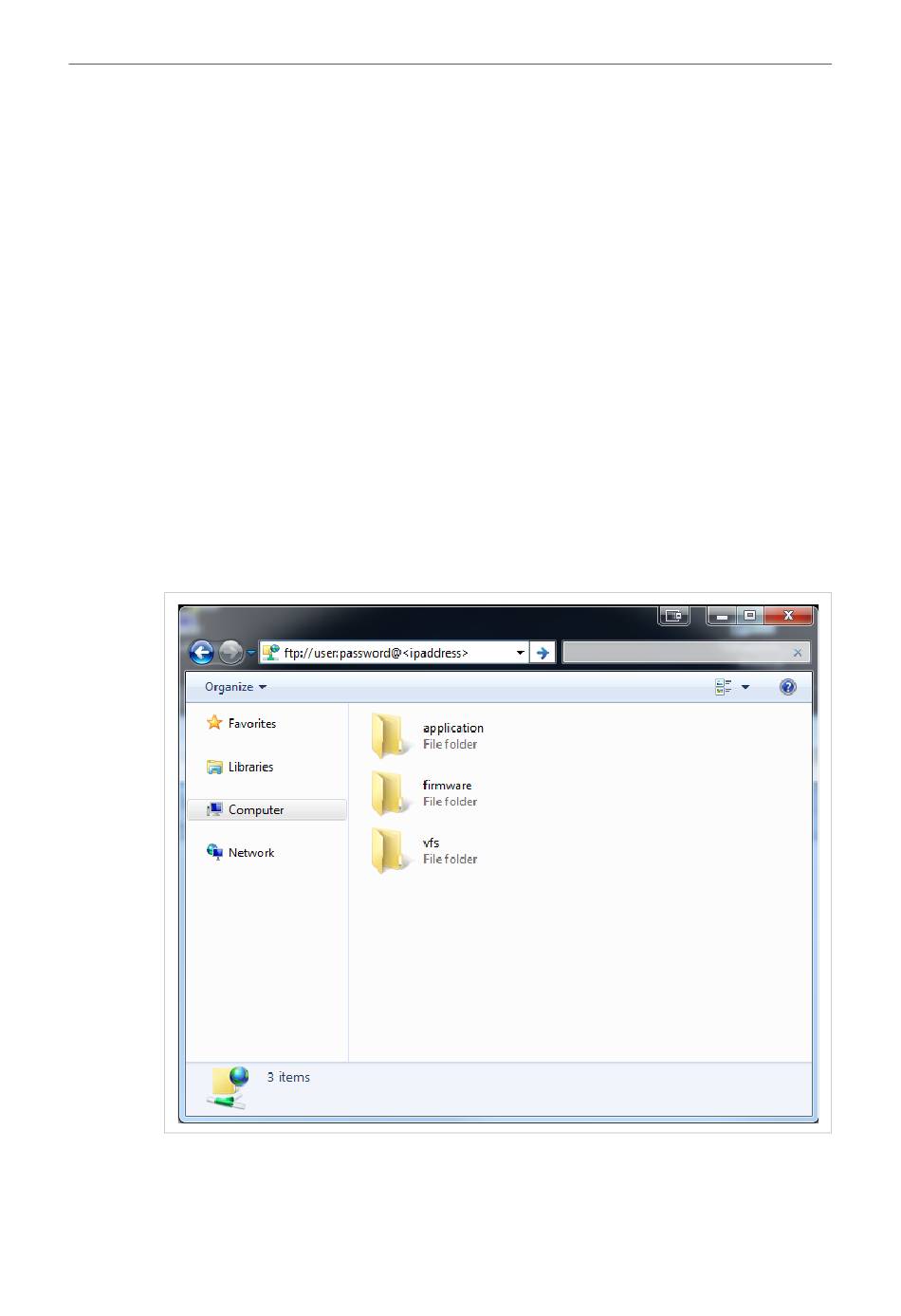

The Windows Explorer features a built-in FTP client which can easily be used to access the file
system as follows:
1. Open the Windows Explorer.
2. In the address field, type FTP://<user>:<password>@<address>
–
–
–
3. Press Enter. The Explorer will now attempt to connect to the Anybus module using the
specified settings. If successful, the file system will be displayed in the Explorer window.
Fig. 3
Anybus CompactCom 40 EtherNet/IP IIoT Network Guide
- Substitute <address> with the IP address of the Anybus module
- Substitute <user> with the username
- Substitute <password> with the password
23 (244)
SCM-1202–069 1.9 en-US
