D Technical Specification - Anybus CompactCom 40 Network Manual

Appendix D: Technical Specification
D Technical Specification

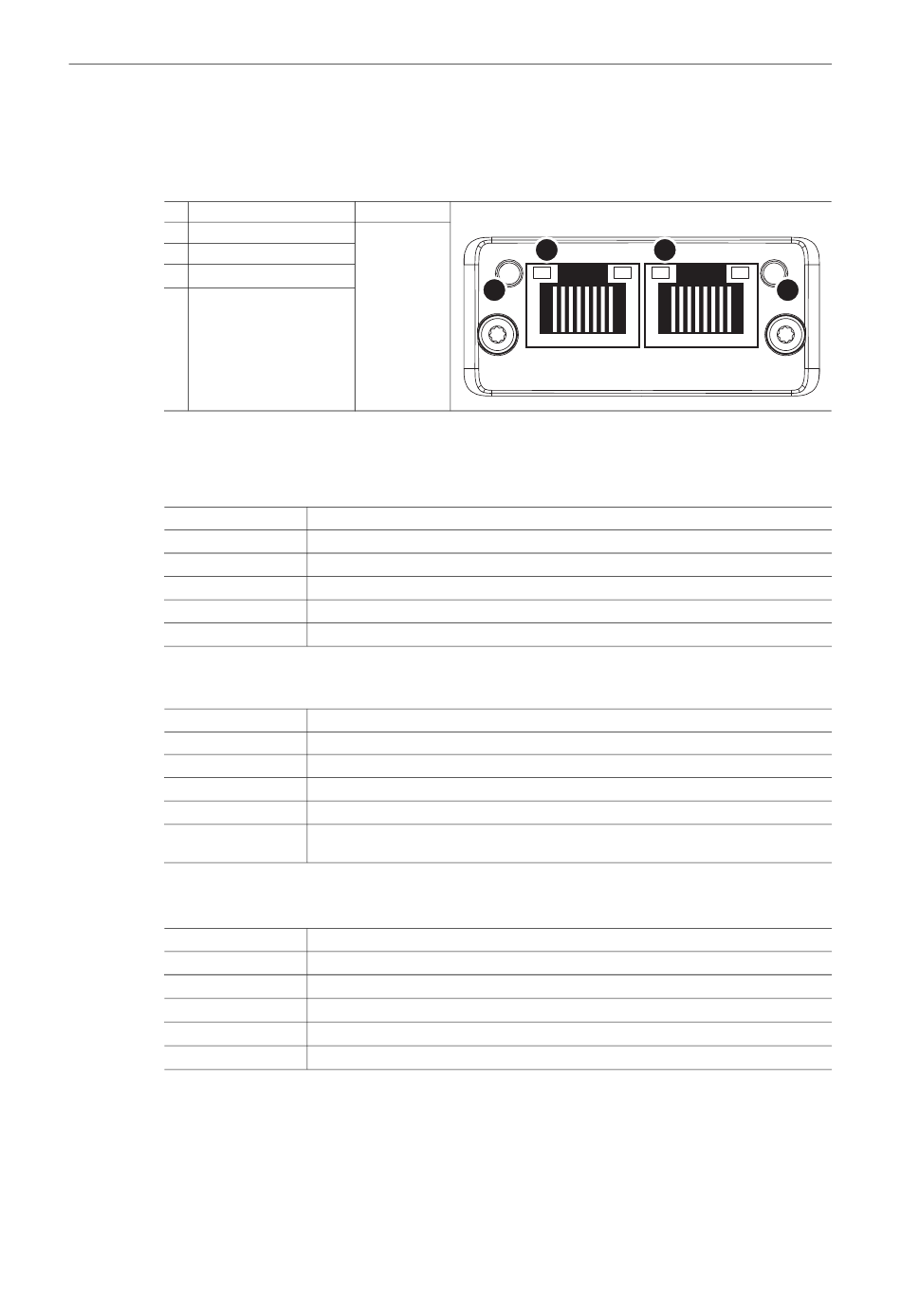

D.1 Front View
D.1.1 Front View (Ethernet Connectors)
# Item
1
Network Status LED
2
Module Status LED
3
Link/Activity LED (port 1)
4
Link/Activity LED (port 2)
Test sequences are performed on the Network and Module Status LEDs during startup.
D.1.2 Network Status LED
LED State
Off
Green
Green, flashing
Red
Red, flashing
D.1.3 Module Status LED
LED State
Off
Green
Green, flashing
Red
Red, flashing
D.1.4 LINK/Activity LED 3/4
LED State
Off
Green
Green, flickering
Yellow
Yellow, flickering
Anybus CompactCom 40 EtherNet/IP IIoT Network Guide
Connector
Ethernet, RJ45
Description
No power or no IP address
Online, one or more connections established (CIP Class 1 or 3)
Online, no connections established
Duplicate IP address, FATAL error
One or more connections timed out (CIP Class 1 or 3)
Description
No power
Controlled by a Scanner in Run state
Not configured, or Scanner in Idle state
Major fault (EXCEPTION-state, FATAL error etc.)
Recoverable fault(s). Module is configured, but stored parameters differ from currently used
parameters.
Description
No link, no activity
Link (100 Mbit/s) established
Activity (100 Mbit/s)
Link (10 Mbit/s) established
Activity (10 Mbit/s)
3
1
216 (244)
4
2
