Basic Operation
3.3.1 Communication Settings in Stand Alone Shift Register Mode
If the Anybus CompactCom is used stand alone, there is no application from which to set the IP
address. The IP address is instead set using the DIP1 switches (IP address byte 3) and the virtual
attributes (Ethernet Host object (F9h), attribute #17), that are written to memory during setup

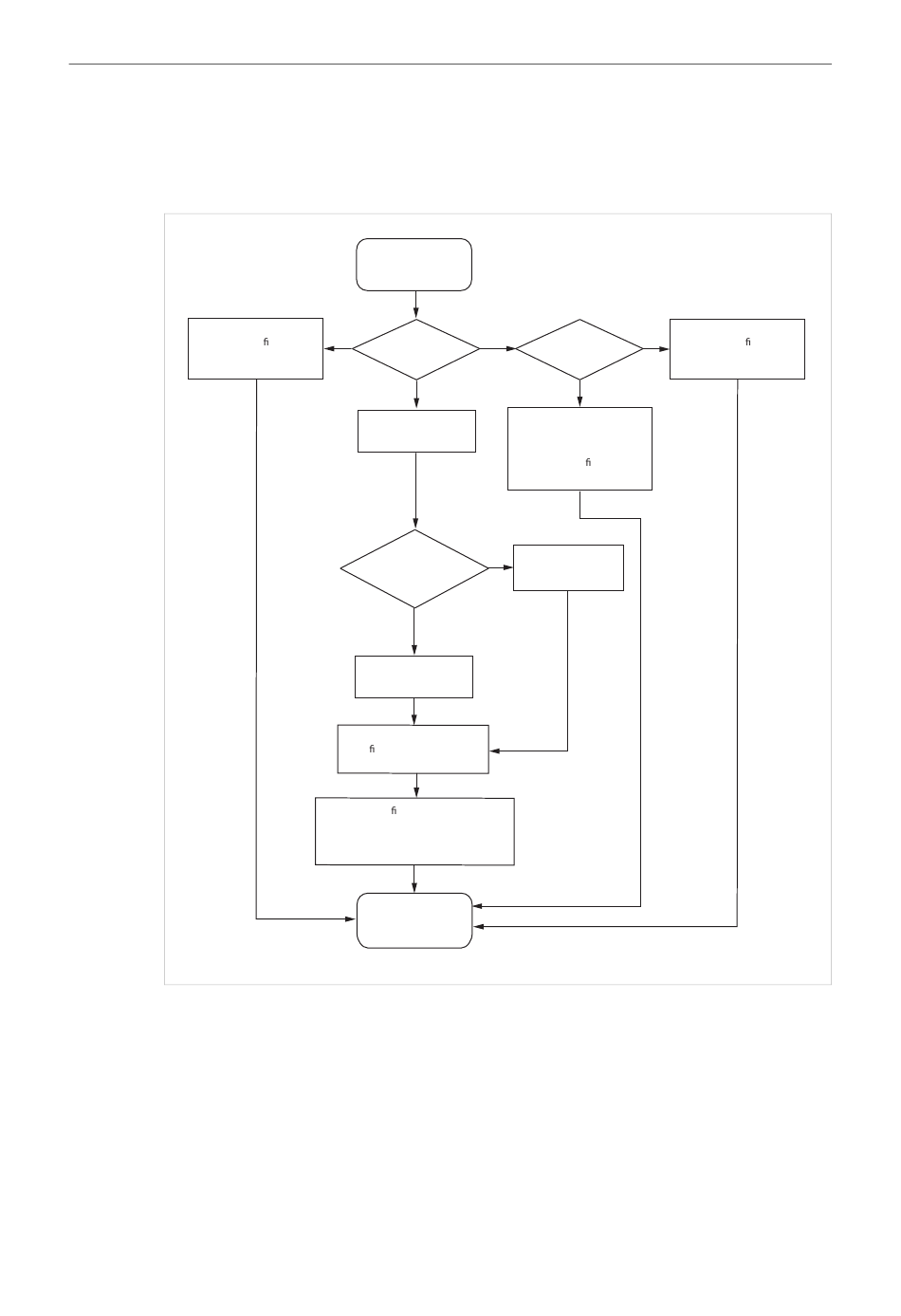

(IP address byte 0 - 2). A flowchart is shown below.
Values stored in
Network Con guration
Object instances #3 - #6
will be used
Fig. 1
See also ...
• Ethernet Host Object (F9h), p. 209
• Anybus CompactCom M40 Hardware Design Guide
• Network Configuration Object (04h), p. 134
Anybus CompactCom 40 EtherNet/IP IIoT Network Guide
Start
0 255
DIP1 switch settings
(0 - 255)
1 - 254
Use DIP switch settings
for IP address byte 3
Ethernet
Host Object (F9h), No
attribute #17
implemented
Yes
Use attribute #17 values
for IP address bytes 0 - 2
IP address is stored in Network
Con guration Object (04h),
instance #3
Network Con guration Object (04h)
Instance #4, Subnet mask: 255.255.255.0
Instance #5 Gateway address: 0.0.0.0
Instance 6, DHCP: OFF
End
No
Check for DHCP
availability
Yes
DHCP will be used for
communication settings,
that will be stored in
Network Con guration
Object (04h), instances #3 - #6
Use default value for
IP address bytes 0 - 2:
192.168.0.X
12 (244)
Values stored in
Network Con guration
Object instances #3 - #6
will be used
