VLT HVAC Drive Programming Guide
Indicator lights (LEDs):
• Green LED/On: Indicates if control section is on.
• Yellow LED/Wrn.: Indicates a warning.
• Flashing red LED/Alarm: Indicates an alarm.

Menu key

[Menu] Select one of the following modes:
• Status
• Quick Setup
• Main Menu
Main Menu is used for programming all parameters.
The parameters can be accessed immediately unless a password has been created via par. 0-60
w/o Password Personal Menu Password
, par. 0-65
Quick Setup is used to set up the frequency converter using only the most essential parameters.
The parameter values can be changed using the up/down arrows when the value is flashing.
Select Main Menu by pressing the [Menu] key a number of times until the Main Menu LED is lit.
Select the parameter group [xx-__] and press [OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter select the array number and press [OK]
Select the wanted data value and press [OK]
Navigation Keys [Back] for stepping backwards
▼ ▲
Arrow [ ] [ ] keys are used for manoeuvring between parameter groups, parameters and within parameters.
[OK] is used for choosing a parameter marked by the cursor and for enabling the change of a parameter.

Operation Keys

Keys for local control are found at the bottom of the control panel.
[Hand on] enables control of the frequency converter via the LCP. [Hand on] also starts the motor and it is now possible to enter the motor speed data
by means of the arrow keys. The key can be selected as

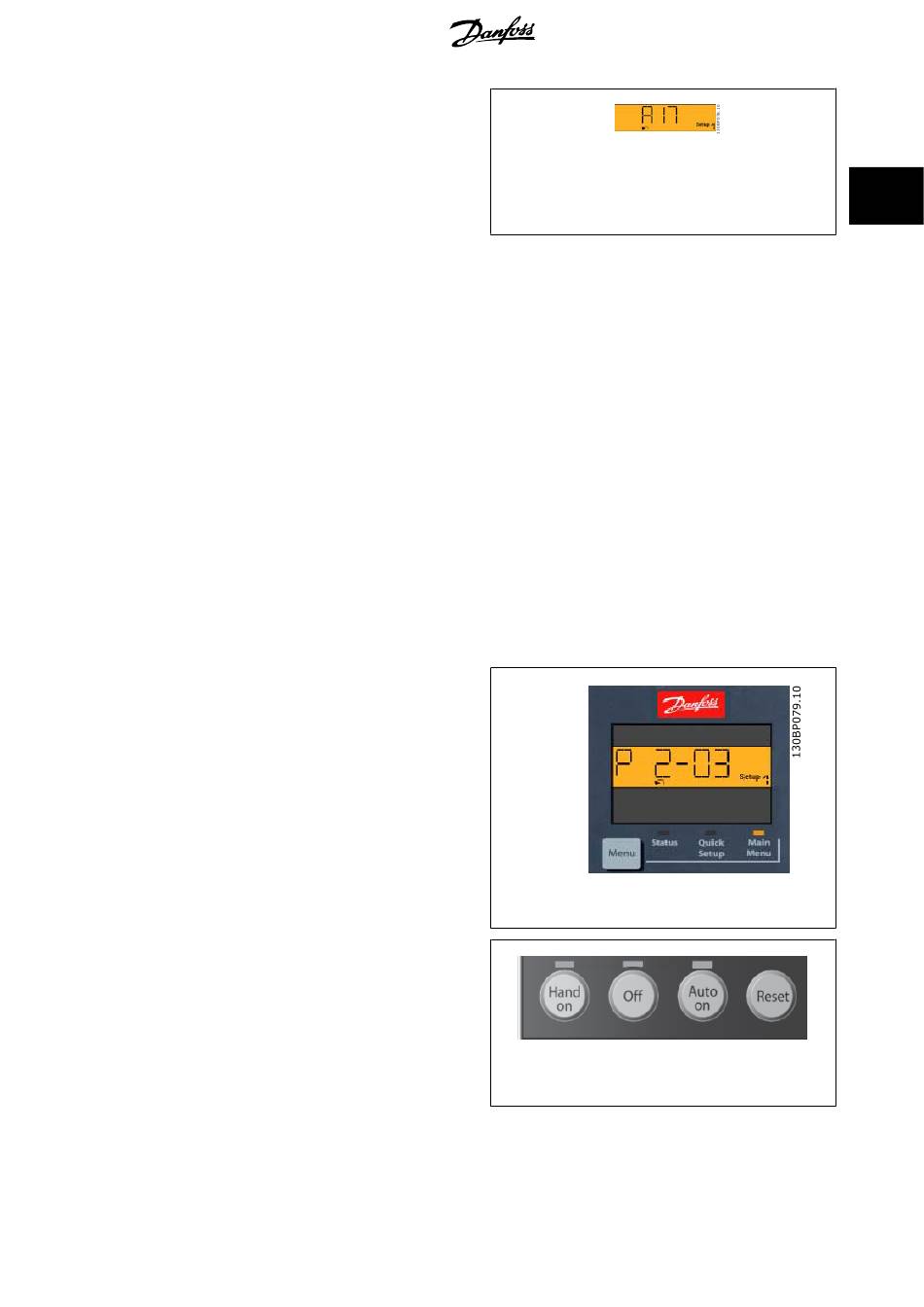

Illustration 2.3: Alarm display example
Access to Personal Menu w/o Password
or par. 0-66
Illustration 2.4: Display example
Illustration 2.5: Operation keys of the numerical CP (NLCP)
Enable Disable
[1] or [0] via par. 0-40
MG.11.C9.02 - VLT ® is a registered Danfoss trademark
2 How to Programme
Main Menu Password Access to Main Menu
, par. 0-61
.
130BP046.10
[Hand on] Key on LCP
.
