3 Parameter Description
3

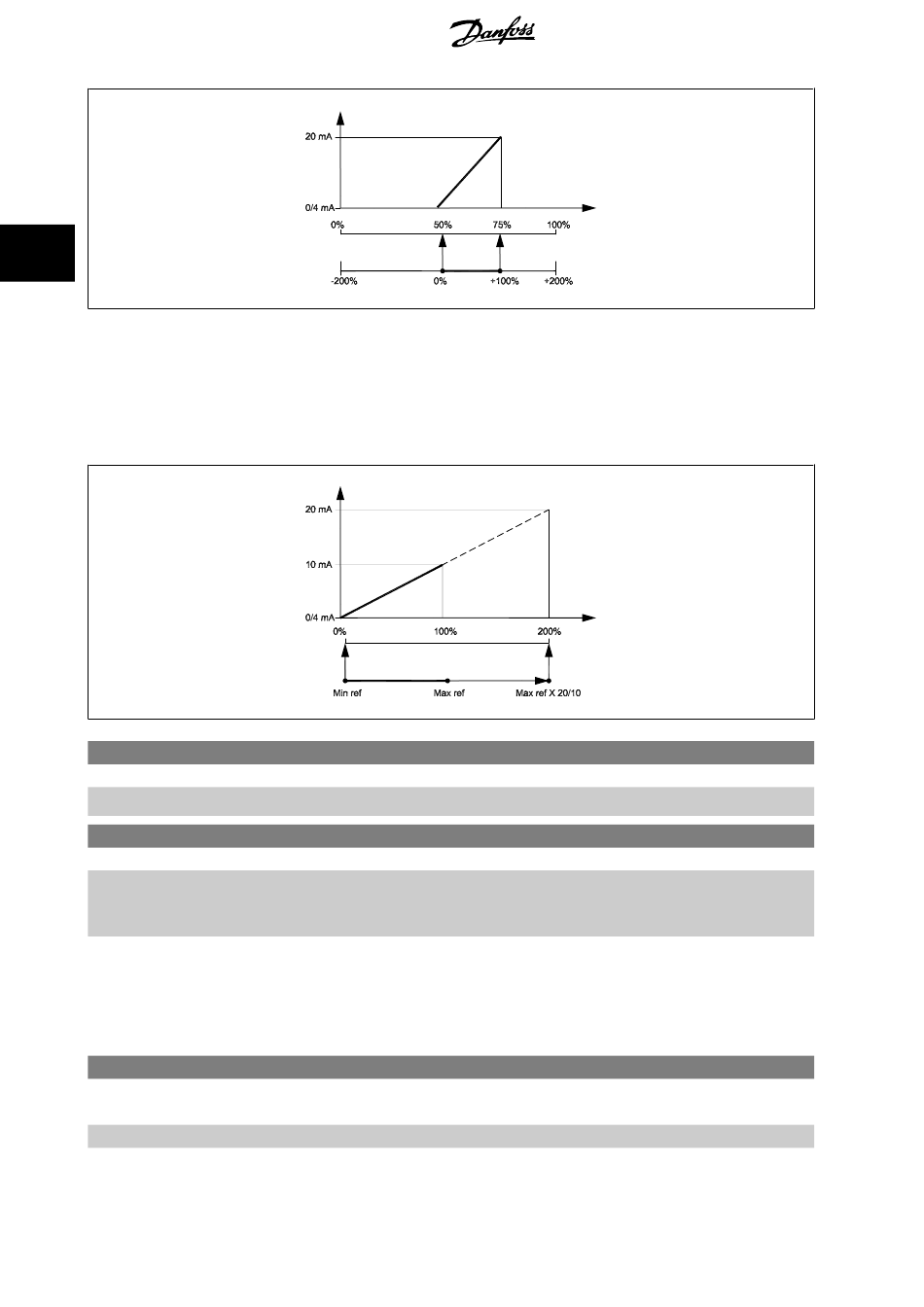

EXAMPLE 3:
Variable value= REFERENCE, range= Min ref - Max ref
Range needed for output= Min ref (0%) - Max ref (100%), 0-10 mA
Output signal 0 or 4 mA is needed at Min ref - set par. 6-51
Output signal 10 mA is needed at Max ref (100% of range) - set par. 6-52
(20 mA / 10 mA x 100%=200%).

6-53 Terminal 42 Output Bus Control

Range:
0.00 %* [0.00 - 100.00 %]

6-54 Terminal 42 Output Timeout Preset

Range:
0.00 %* [0.00 - 100.00 %]
3.8.8 6-6* Analog Output 2 MCB 101
Analog outputs are current outputs: 0/4 - 20 mA. Common terminal (terminal X30/8) is the same terminal and electrical potential for analog common
connection. Resolution on analog output is 12 bit.

6-60 Terminal X30/8 Output

Same options and functions as par. 6-50
Option:
[0] * No operation
100
Terminal 42 Output Min Scale
Terminal 42 Output Max Scale
Function:
Holds the level of Output 42 if controlled by bus.
Function:
Holds the preset level of Output 42.
In case of a bus timeout and a timeout function is selected in par. 6-50
output will preset to this level.
Terminal 42 Output
.
Function:
MG.11.C9.02 - VLT ®
®
VLT HVAC Drive Programming Guide
to 0%
to 200%
is a registered Danfoss trademark
Terminal 42 Output
the
