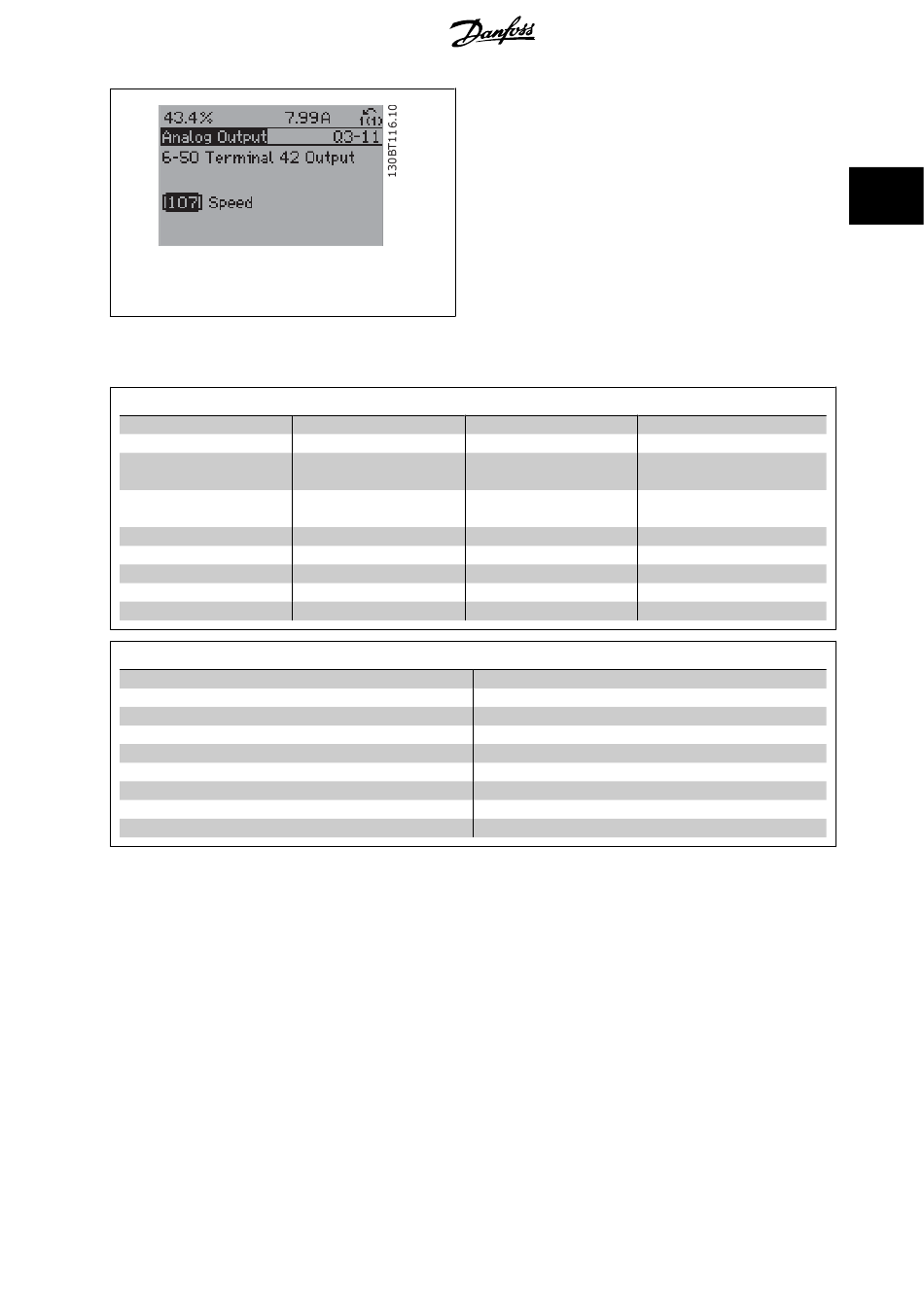

Illustration 2.13: Step 7: Use the up/down navigation keys
to select between the different choices. Press [OK].

Function Set-ups parameters

The Function Set-ups parameters are grouped in the following way:
Q3-10 Adv. Motor Settings
Motor Thermal Protection
Par. 1-90
Thermistor Source
Par. 1-93
Automatic Motor Adapta-
Par. 1-29
tion (AMA)
Par. 14-01 Switching Frequency
Warning Speed High
Par. 4-53
Q3-20 Digital Reference
Minimum Reference
Par. 3-02
Par. 3-03 Maximum Reference
Par. 3-10 Preset Reference
Par. 5-13 Terminal 29 Digital Input
Terminal 32 Digital Input
Par. 5-14
Terminal 33 Digital Input
Par. 5-15

Q3-1 General Settings

Q3-11 Analog Output Q3-12 Clock Settings
Terminal 42 Output
Par. 6-50 Par. 0-70
Terminal 42 Output Min
Par. 6-51 Par. 0-71
Scale
Terminal 42 Output Max
Par. 6-52 Par. 0-72
Scale
Par. 0-74
Par. 0-76
Par. 0-77

Q3-2 Open Loop Settings

MG.11.C9.02 - VLT ® is a registered Danfoss trademark
Q3-13 Display Settings
Date and Time
Par. 0-20
Date Format
Par. 0-21
Time Format
Par. 0-22
DST/Summertime Par. 0-23
DST/Summertime Start
Par. 0-24
DST/Summertime End
Par. 0-37
Par. 0-38
Par. 0-39
Q3-21 Analog Reference
Minimum Reference
Par. 3-02
Par. 3-03 Maximum Reference
Par. 6-10 Terminal 53 Low Voltage
Par. 6-11 Terminal 53 High Voltage
Terminal 53 Low Current
Par. 6-12
Terminal 53 High Current
Par. 6-13
Terminal 53 Low Ref./Feedb. Value
Par. 6-14
Terminal 53 High Ref./Feedb. Value
Par. 6-15
2 How to Programme
Display Line 1.1 Small
Display Line 1.2 Small
Display Line 1.3 Small
Display Line 2 Large
Display Line 3 Large
Display Text 1
Display Text 2
Display Text 3
2
25
