3 Parameter Description

5-41 On Delay, Relay

Array [8](Relay 1 [0], Relay 2 [1], Relay 3 [2], Relay 4 [3], Relay 5 [4], Relay 6 [5], Relay 7 [6], Relay 8 [7], Relay 9 [8])
Range:
0.01 s* [0.01 - 600.00 s]
3

5-42 Off Delay, Relay

Array [8] (Relay 1 [0], Relay 2 [1], Relay 3 [2], Relay 4 [3], Relay 5 [4], Relay 6 [5], Relay 7 [6], Relay 8 [7], Relay 9 [8])
Range:
0.01 s* [0.01 - 600.00 s]

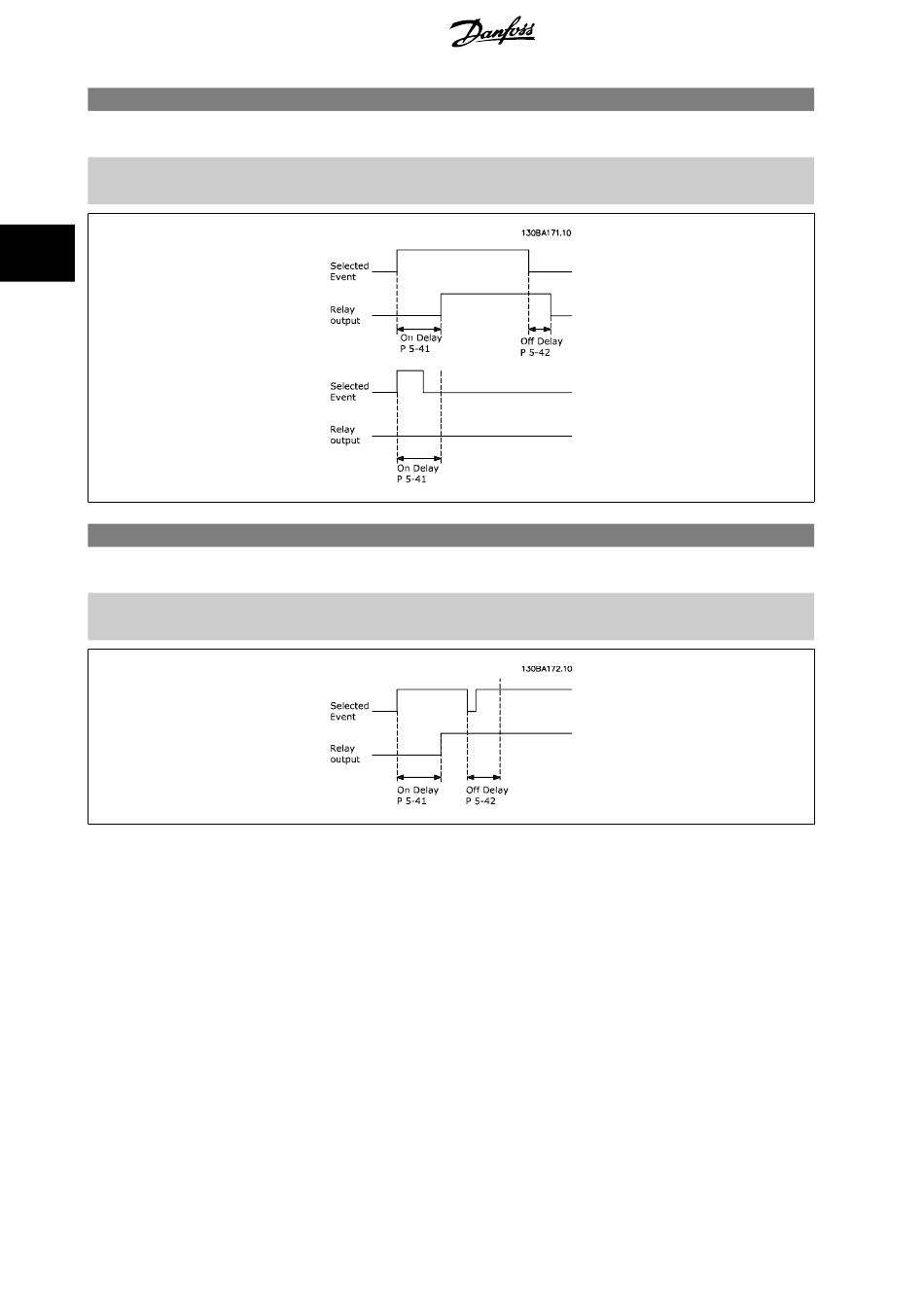

If the selected Event condition changes before the on- or off delay timer expires, the relay output is unaffected.

3.7.6 5-5* Pulse Input

The pulse input parameters are used to define an appropriate window for the impulse reference area by configuring the scaling and filter settings for the
pulse inputs. Input terminals 29 or 33 act as frequency reference inputs. Set terminal 29 (par. 5-13
Terminal 33 Digital Input
(par. 5-15
88
Function:
Enter the delay of the relay cut-in time. Select one of available mechanical relays and MCB 105 in
an array function. See par. 5-40
Function:
Enter the delay of the relay cut-out time. Select one of available mechanical relays and MCB 105 in
an array function. See par. 5-40
Pulse input
) to [32]. If terminal 29 is used as an input, then set par. 5-02
MG.11.C9.02 - VLT
®
VLT
Function Relay . Relay 3-6 are included in MCB 113.
Function Relay .
Terminal 29 Digital Input
Terminal 29 Mode
® is a registered Danfoss trademark
HVAC Drive Programming Guide
) or terminal 33
Input
to [0].
